D4S21J Series
Manufacturer: Rosenberger
Beta
⌘K
RF CONNECTORS / COAXIAL CONNECTORS RIGHT ANGLE PLUG PCB W/HOUSING T&R BLACK
| Part | Dielectric Material | Mating Cycles | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Body Finish | Body Material | Frequency - Max [Max] | Number of Ports | Fastening Type | Features | Shield Termination | Impedance | Contact Termination | Housing Color | Connector Style | Connector Type | Mounting Type | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

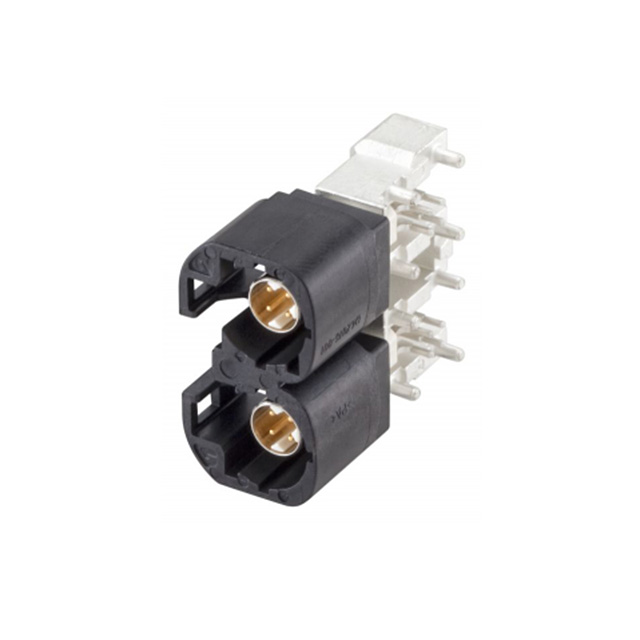

 Rosenberger | Liquid Crystal Polymer (LCP) | 25 | Gold | -40 C | 105 ░C | 100 V | Nickel | Brass | 2 GHz | 2 | Latch Lock | Code A | Solder | 100 Ohms | Solder | Black Graphite | Fakra HSD® Quadraxial | Plug Male Pin | Right Angle Through Hole | Bronze |
 Rosenberger | Liquid Crystal Polymer (LCP) | 25 | Gold | -40 C | 105 ░C | 100 V | Nickel | Brass | 2 GHz | 2 | Latch Lock | Code E | Solder | 100 Ohms | Solder | Green May | Fakra HSD® Quadraxial | Plug Male Pin | Right Angle Through Hole | Bronze |

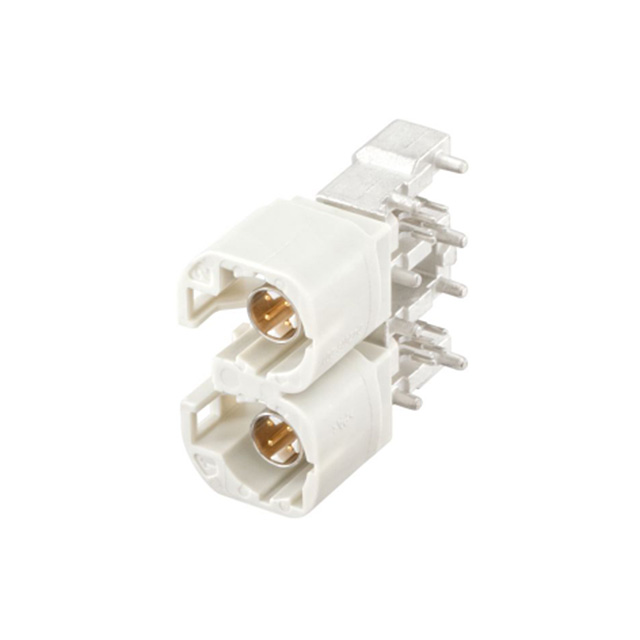

 Rosenberger | Liquid Crystal Polymer (LCP) | 25 | Gold | -40 C | 105 ░C | 100 V | Nickel | Brass | 2 GHz | 2 | Latch Lock | Code B | Solder | 100 Ohms | Solder | Natural | Fakra HSD® Quadraxial | Plug Male Pin | Right Angle Through Hole | Bronze |

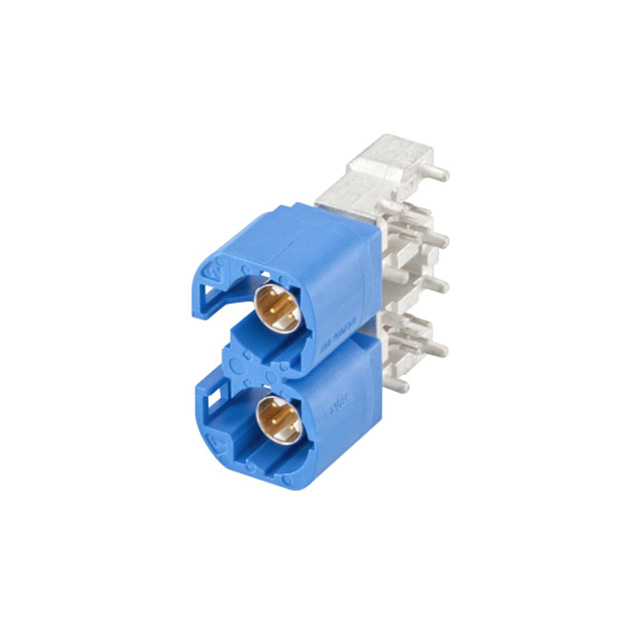

 Rosenberger | Liquid Crystal Polymer (LCP) | 25 | Gold | -40 C | 105 ░C | 100 V | Nickel | Brass | 2 GHz | 2 | Latch Lock | Code C | Solder | 100 Ohms | Solder | Blue Light | Fakra HSD® Quadraxial | Plug Male Pin | Right Angle Through Hole | Bronze |
