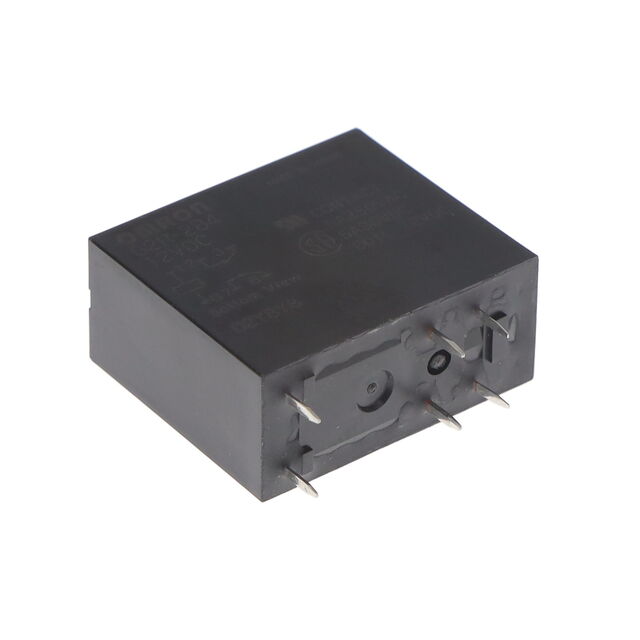

G2R-2B Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPST 4A 12V
| Part | Mounting Type | Coil Resistance | Contact Material | Must Release Voltage | Contact Form | Termination Style | Coil Current | Must Operate Voltage | Load - Max Switching | Contact Rating (Current) | Operate Time | Release Time | Approval Agency | Seal Rating | Coil Type | Coil Voltage | Switching Voltage | Relay Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Through Hole | 275 Ohms | Silver Alloy | 1.8 VDC | DPST-NC (2 Form B) | PC Pin | 43.6 mA | 8.4 VDC | 500 W 1520 VA | 4 A | 15 ms | 5 ms | CSA TUV UR VDE | Sealed - Fully | Non Latching | 12 VDC | 125 VDC 380 VAC | General Purpose | -40 °C | 70 °C |
