83752 Series
Manufacturer: Belden Inc.
Beta
⌘K

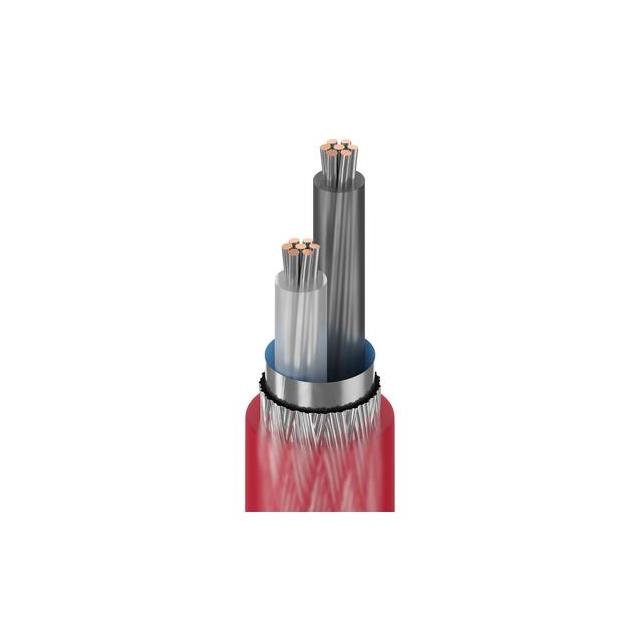

CABLE 2COND 14AWG RED SHLD
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Number of Conductors | Ratings | Conductor Material | Conductor Insulation | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | Fluorinated Ethylene-Propylene (FEP) Plenum | Alarm Safety | 6.78 mm | 0.267 in | Braid Foil | 14.5 AWG | 22 AWG | 7 | Multi-Conductor | 0.381 mm | 0.015 in | 300 VDC | -70 °C | 200 °C | Red | 2 | UL Style CMP | Copper Tinned | Fluorinated Ethylene-Propylene (FEP) | 152.4 m | 500 ft |
