1674000 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

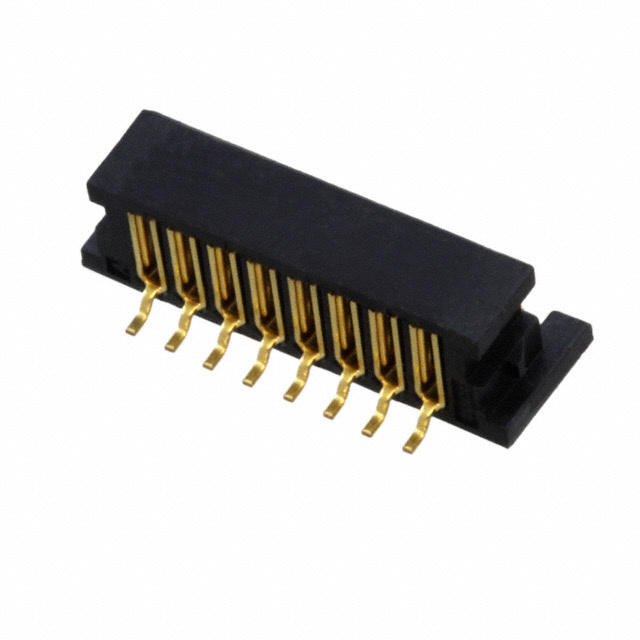

CONN HDR 8POS 0.039 GOLD SMD R/A
| Part | Number of Positions Loaded | Connector Type | Insulation Height | Insulation Height | Fastening Type | Style | Termination | Contact Shape | Number of Positions | Mounting Type | Number of Rows | Insulation Color | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | All | Header | 3.25 mm | 0.128 in | Locking Ramp | Board to Cable/Wire | Solder | Rectangular | 8 | Surface Mount Right Angle | 1 | Black | UL94 V-0 | -40 °C | 105 ░C | 10 VAC | Polyamide (PA46) Nylon 4/6 | 0.203 Ám | 8 Áin | Phosphor Bronze | Gold | 0.039 in | 1 mm | Female Blade Socket |
