ECQ-E4473 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP FILM 0.047UF 5% 400VDC RAD

Part	Tolerance	Package / Case	Voltage Rating - DC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Termination	Applications	Dielectric Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales ECQ-E4473JFW	5 %	Radial	400 V	13.3 mm	0.524 in	Through Hole	PC Pins	General Purpose	Polyester Metallized	0.197 "	12 mm	0.472 in	5 mm	0.394 in	10 mm	-40 °C	105 ░C

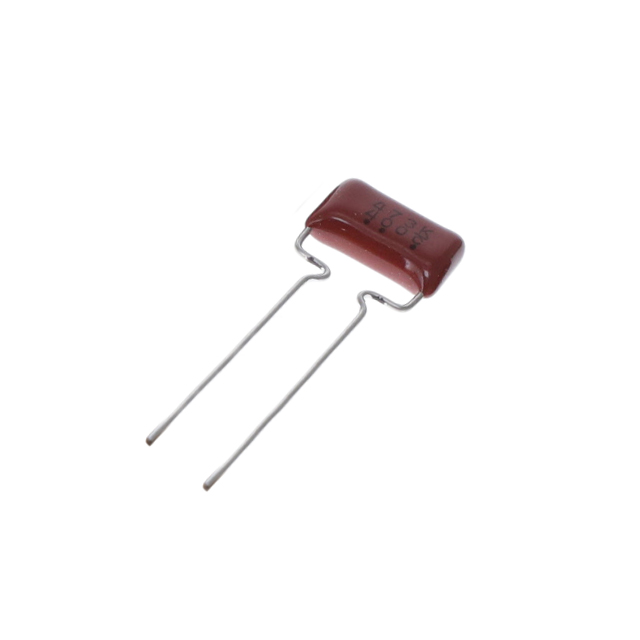

Panasonic Industrial Automation Sales ECQ-E4473KF3	10 %	Radial	400 V	13.3 mm	0.524 in	Through Hole	PC Pins	General Purpose	Polyester Metallized	0.197 "	12 mm	0.472 in	5 mm	0.197 in	5 mm	-40 °C	105 ░C

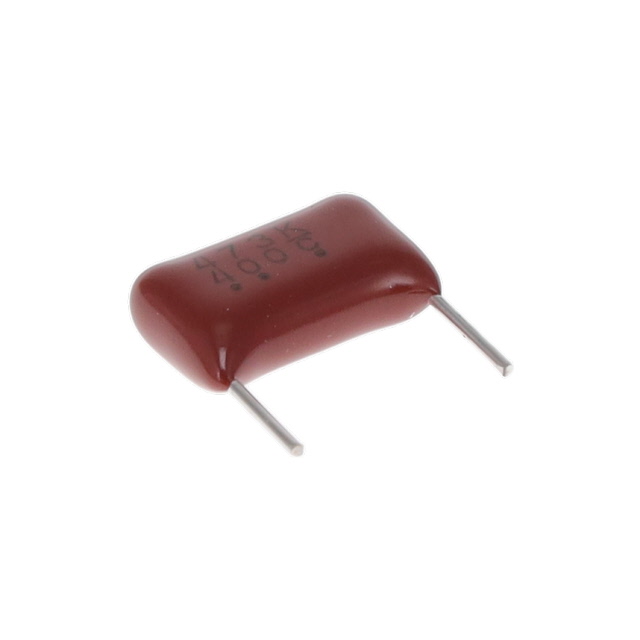

Panasonic Industrial Automation Sales ECQ-E4473KFA	10 %	Radial	400 V			Through Hole	PC Pins	General Purpose	Polyester Metallized							-40 °C	105 ░C
Panasonic Industrial Automation Sales ECQ-E4473KF9	10 %	Radial	400 V	13.3 mm	0.524 in	Through Hole	PC Pins	General Purpose	Polyester Metallized	0.197 "	12 mm	0.472 in	5 mm	0.197 in	5 mm	-40 °C	105 ░C
Panasonic Industrial Automation Sales ECQ-E4473KZ	10 %	Radial	400 V	13 mm	0.512 "	Through Hole	PC Pins	General Purpose	Polyester Metallized	0.256 in	13.5 mm	0.531 in	6.5 mm	0.413 in	10.5 mm	-40 °C	85 °C
Panasonic Industrial Automation Sales ECQ-E4473KF	10 %	Radial	400 V			Through Hole	PC Pins	General Purpose	Polyester Metallized	0.197 "	12 mm	0.472 in	5 mm	0.394 in	10 mm	-40 °C	105 ░C	9.3 mm	0.366 in
Panasonic Industrial Automation Sales ECQ-E4473JF9	5 %	Radial	400 V	13.3 mm	0.524 in	Through Hole	PC Pins	General Purpose	Polyester Metallized	0.197 "	12 mm	0.472 in	5 mm	0.197 in	5 mm	-40 °C	105 ░C
Panasonic Industrial Automation Sales ECQ-E4473KFB	10 %	Radial	400 V	13.3 mm	0.524 in	Through Hole	PC Pins	General Purpose	Polyester Metallized	0.197 "	12 mm	0.472 in	5 mm	0.394 in	10 mm	-40 °C	105 ░C

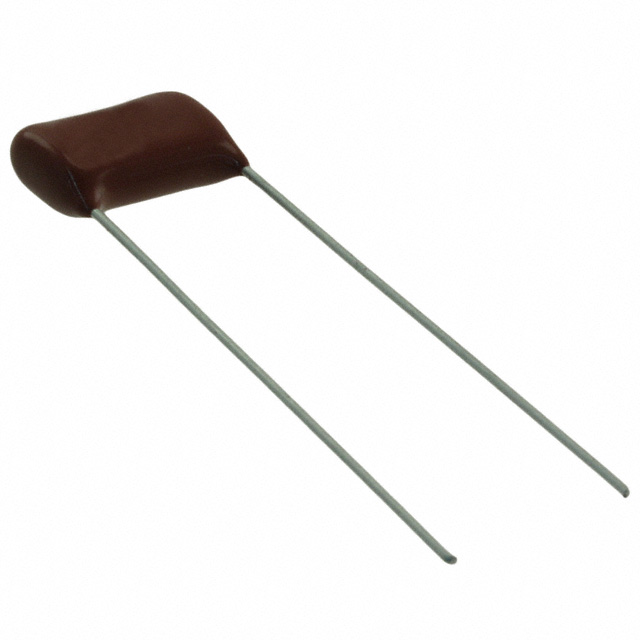

Panasonic Industrial Automation Sales ECQ-E4473JF	5 %	Radial	400 V			Through Hole	PC Pins	General Purpose	Polyester Metallized	0.197 "	12 mm	0.472 in	5 mm	0.394 in	10 mm	-40 °C	105 ░C	9.3 mm	0.366 in
Panasonic Industrial Automation Sales ECQ-E4473JFB	5 %	Radial	400 V	13.3 mm	0.524 in	Through Hole	PC Pins	General Purpose	Polyester Metallized	0.197 "	12 mm	0.472 in	5 mm	0.394 in	10 mm	-40 °C	105 ░C
