316-023 Series
Manufacturer: EDAC Inc.
Beta
⌘K

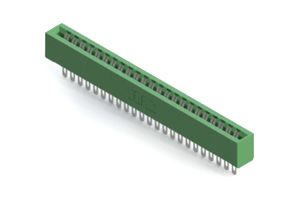

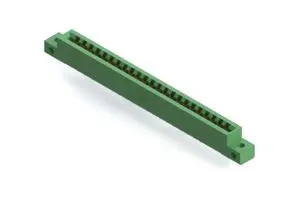

CONN EDGE DUAL FMALE 46POS 0.156
| Part | Termination Rows | Material - Insulation | Pitch | Pitch | Number of Rows [custom] | Card Thickness [Max] | Card Thickness [Min] | Color | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Contact Finish | Card Type | Read Out | Flange Feature | Termination | Contact Material | Number of Positions/Bay/Row | Number of Positions | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Cantilever | -40 C | 105 ░C | Female | Tin | Non Specified - Dual Edge | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Copper Alloy | 23 | 46 | Panel Mount Through Hole | |||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Cantilever | -40 C | 105 ░C | Female | Gold | Non Specified - Dual Edge | Dual | Flush Mount Side Opening Unthreaded | Solder | Copper Alloy | 23 | 46 | Panel Mount Through Hole | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Cantilever | -40 C | 105 ░C | Female | Tin | Non Specified - Dual Edge | Dual | Solder Eyelet(s) | Copper Alloy | 23 | 46 | Free Hanging (In-Line) | ||||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Cantilever | -40 C | 105 ░C | Female | Gold | Non Specified - Dual Edge | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Copper Alloy | 23 | 46 | Through Hole | 0.25 Ám | 10 Áin | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Cantilever | -40 C | 105 ░C | Female | Gold | Non Specified - Dual Edge | Dual | Flush Mount Side Opening Unthreaded | Solder | Copper Alloy | 23 | 46 | Panel Mount Through Hole | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Cantilever | -40 C | 105 ░C | Female | Tin | Non Specified - Dual Edge | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Solder Eyelet(s) | Copper Alloy | 23 | 46 | Panel Mount | Card Guides | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Cantilever | -40 C | 105 ░C | Female | Tin | Non Specified - Dual Edge | Dual | Flush Mount Side Opening Unthreaded | Solder Eyelet(s) | Copper Alloy | 23 | 46 | Panel Mount | 0.128 " | 3.25 mm | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Cantilever | -40 C | 105 ░C | Female | Gold | Non Specified - Dual Edge | Dual | Flush Mount Top Opening Unthreaded | Solder | Copper Alloy | 23 | 46 | Through Hole | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Cantilever | -40 C | 105 ░C | Female | Gold | Non Specified - Dual Edge | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Copper Alloy | 23 | 46 | Panel Mount Through Hole | 0.25 Ám | 10 Áin | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Cantilever | -40 C | 105 ░C | Female | Gold | Non Specified - Dual Edge | Dual | Flush Mount Top Opening Unthreaded | Solder Eyelet(s) | Copper Alloy | 23 | 46 | Panel Mount | 0.156 " | 3.96 mm | 0.25 Ám | 10 Áin |
