M50-355 Series

Catalog

CONNECTOR, HEADER20POS, 2ROW, 1.27MM ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mated Stacking Heights	Termination	Contact Finish Thickness - Mating	Style	Overall Contact Length [x]	Overall Contact Length [x]	Number of Positions Loaded	Insulation Height	Insulation Height	Number of Rows [custom]	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Features	Contact Type	Insulation Color	Mounting Type	Contact Finish - Mating	Material Flammability Rating	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Contact Length - Post	Contact Length - Post	Contact Shape	Contact Length - Mating	Contact Length - Mating	Number of Positions	Current Rating (Amps)	Connector Type	Number of Positions [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating

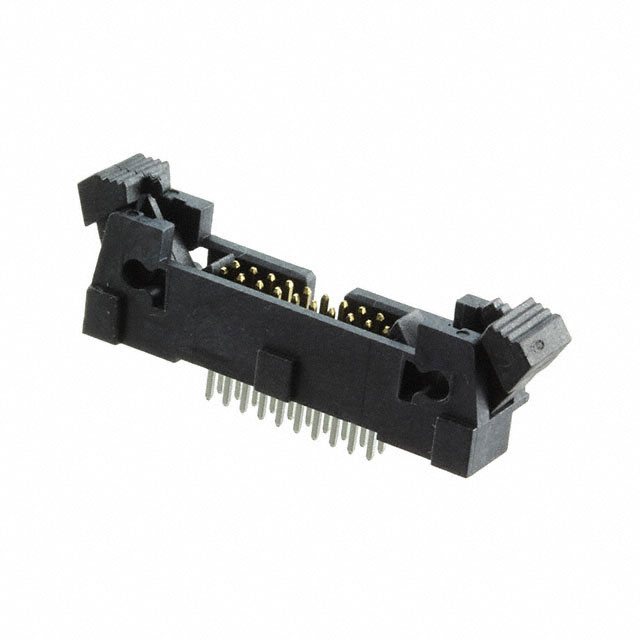

Harwin Inc. M50-3551042	2.54 µm	100 µin	11.6 mm	Solder	Flash	Board to Board Cable	0.351 "	8.92 mm	All	0.325 in	8.25 mm	2	Shrouded - 4 Wall	-55 C	125 °C	Tin	1.27 mm	0.05 in	Keying Slot	Male Pin	Black	Through Hole	Gold	UL94 V-0	Latch Lock/Eject Hooks	0.05 in	1.27 mm	Brass	0.107 in	2.71 mm	Square	0.12 in	3.05 mm	20	1.75 A	Header
Harwin Inc. M50-3551742	2.54 µm	100 µin	11.6 mm	Solder	Flash	Board to Board Cable	0.351 "	8.92 mm	All	0.325 in	8.25 mm	2	Shrouded - 4 Wall	-55 C	125 °C	Tin	1.27 mm	0.05 in	Keying Slot	Male Pin	Black	Through Hole	Gold	UL94 V-0	Latch Lock/Eject Hooks	0.05 in	1.27 mm	Brass	0.107 in	2.71 mm	Square	0.12 in	3.05 mm		1.75 A	Header	34

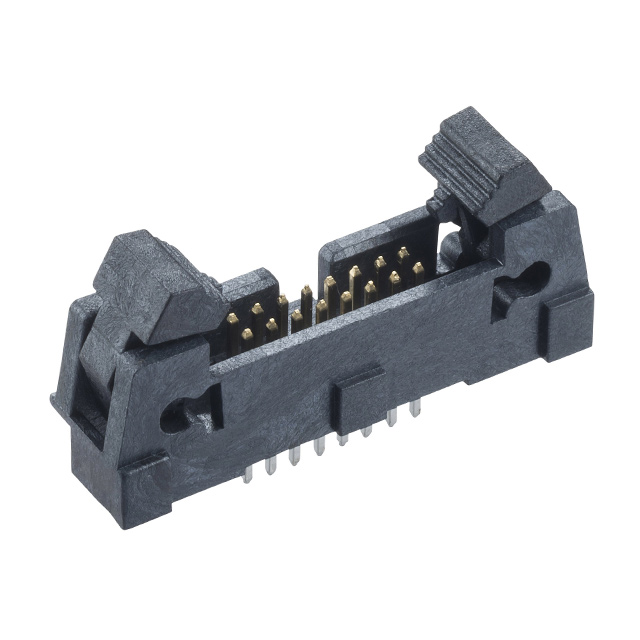

Harwin Inc. M50-3550842	2.54 µm	100 µin	11.6 mm	Solder		Board to Board Cable	0.351 "	8.92 mm	All	0.325 in	8.25 mm	2	Shrouded - 4 Wall	-55 C	125 °C	Tin	1.27 mm	0.05 in	Keying Slot	Male Pin	Black	Through Hole	Gold	UL94 V-0	Latch Lock/Eject Hooks	0.05 in	1.27 mm	Brass	0.107 in	2.71 mm	Square	0.12 in	3.05 mm	16	1.75 A	Header		0.38 µm	15 µin
Harwin Inc. M50-3552042	2.54 µm	100 µin	11.6 mm	Solder	Flash	Board to Board Cable	0.351 "	8.92 mm	All	0.325 in	8.25 mm	2	Shrouded - 4 Wall	-55 C	125 °C	Tin	1.27 mm	0.05 in	Keying Slot	Male Pin	Black	Through Hole	Gold	UL94 V-0	Latch Lock/Eject Hooks	0.05 in	1.27 mm	Brass	0.107 in	2.71 mm	Square	0.12 in	3.05 mm	40	1.75 A	Header
