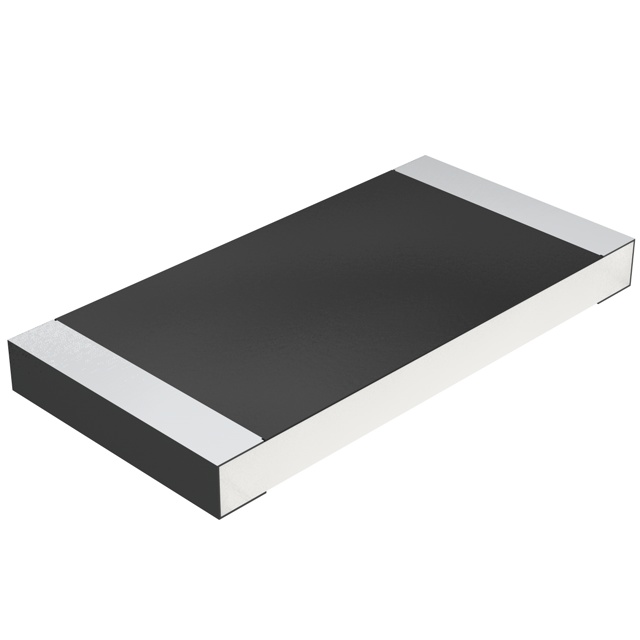

CRCW2512 Series

Catalog

RES THICK FILM 2512 7.15 OHM 1% 1W ±200PPM/°C PAD SMD T/R AUTOMOTIVE AEC-Q200

...

Part	Ratings	Number of Terminations	Features	Size / Dimension Width	Size / Dimension Length	Package Name	Operating Temperature (Max)	Operating Temperature (Min)	Height - Seated (Max)	Composition	Package / Case	Power (Watts)	Temperature Coefficient	Resistance	Tolerance
Vishay Dale CRCW25127R15FNTG	AEC-Q200	2	Automotive AEC-Q200	0.124 in	0.248 in	2512	155 °C	-55 °C	0.028 in	Thick Film	2512 (6432 Metric)	1 W	200 ppm/°C	7.15 Ohms	1 %
Vishay Dale CRCW251239R0JNEG	AEC-Q200	2	Automotive AEC-Q200	0.124 in	0.248 in	2512	155 °C	-55 °C	0.028 in	Thick Film	2512 (6332 Metric) 2512 (6432 Metric)	1 W	200 ppm/°C	39 Ohm	5 %
Vishay Dale CRCW251251K1FKTG	AEC-Q200	2	Automotive AEC-Q200	0.124 in	0.248 in	2512	155 °C	-55 °C	0.028 in	Thick Film	2512 (6432 Metric)	1 W	100 ppm/°C	51.1 kOhm	1 %
Vishay Dale CRCW25123R30FKEHHP	AEC-Q200	2	Automotive AEC-Q200 Pulse Withstanding	0.124 in	0.248 in	2512	155 °C	-55 °C	0.028 in	Thick Film	2512 (6432 Metric)	1.5 W	100 ppm/°C	3.3 Ohm	1 %
Vishay Dale CRCW251251K0FKEG	AEC-Q200	2	Automotive AEC-Q200	0.124 in	0.248 in	2512	155 °C	-55 °C	0.028 in	Thick Film	2512 (6432 Metric)	1 W	100 ppm/°C	51 kOhm	1 %
Vishay Dale CRCW25121R30FKEH	AEC-Q200	2	Automotive AEC-Q200	0.124 in	0.248 in	2512	155 °C	-55 °C	0.028 in	Thick Film	2512 (6432 Metric)	1 W	100 ppm/°C	1.3 Ohm	1 %
Vishay Dale CRCW251239K2FKTG	AEC-Q200	2	Automotive AEC-Q200	0.124 in	0.248 in	2512	155 °C	-55 °C	0.028 in	Thick Film	2512 (6432 Metric)	1 W	100 ppm/°C	39.2 kOhm	1 %
Vishay Dale CRCW25122K32FKEHHP	AEC-Q200	2	Automotive AEC-Q200 Pulse Withstanding	0.124 in	0.248 in	2512	155 °C	-55 °C	0.028 in	Thick Film	2512 (6432 Metric)	1.5 W	100 ppm/°C	2.32 kOhm	1 %
Vishay Dale CRCW25122R43FKEGHP	AEC-Q200	2	Automotive AEC-Q200 Pulse Withstanding	0.124 in	0.248 in	2512	155 °C	-55 °C	0.028 in	Thick Film	2512 (6432 Metric)	1.5 W	100 ppm/°C	2.43 Ohms	1 %
Vishay Dale CRCW25122K55FKTG	AEC-Q200	2	Automotive AEC-Q200	0.124 in	0.248 in	2512	155 °C	-55 °C	0.028 in	Thick Film	2512 (6432 Metric)	1 W	100 ppm/°C	2.55 kOhm	1 %
