TPSM13604H Series
Manufacturer: Texas Instruments
Beta
⌘K
POWER MANAGEMENT IC DEVELOPMENT TOOLS TPSM13604H 5-V TO 36 -V INPUT 3-V TO 16-
| Part | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output | Utilized IC / Part | Voltage - Output [Min] | Voltage - Output [Max] | Regulator Topology | Frequency - Switching | Outputs and Type | Contents | Main Purpose | Voltage - Input (Max) [Max] | Mounting Type | Supplier Device Package | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Features | Voltage - Input (Min) [Min] | Efficiency | Current - Output (Max) [Max] | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Type | Number of Outputs | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 36 V | 5 V | 4 A | TPSM13604H | 3 V | 16 V | Buck | 300 kHz | 1 Non-Isolated Output | Board(s) | DC/DC Step Down | |||||||||||||||||||||

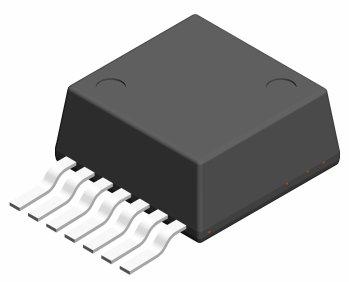

 Texas Instruments | 36 V | Surface Mount | TO-PMOD-7 | 9.9 mm | 0.19 in | 10.2 mm | 4.8 mm | 0.39 in | 0.4 " | TO-PMOD-7 Power Module | Adjustable Output Remote On/Off | 5 V | 96 % | 4 A | ITE (Commercial) | 125 °C | -40 C | Non-Isolated PoL Module | 1 | 3 V | 16 V |
