NPPN111 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

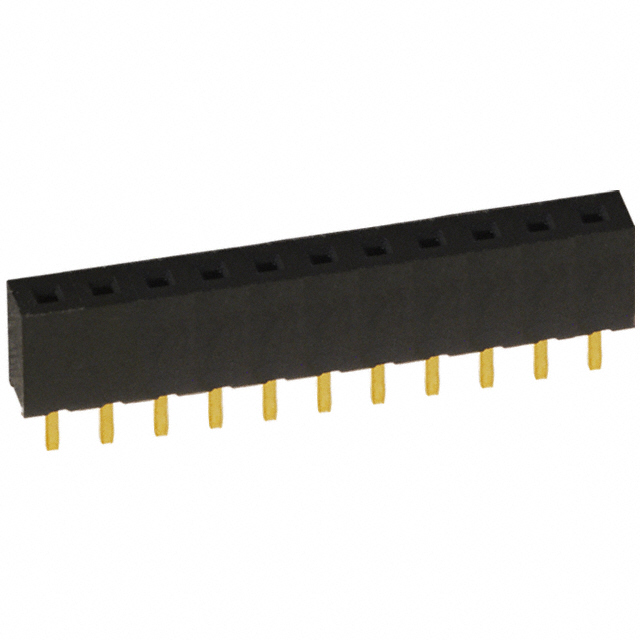

CONN HDR 11P 0.079 GOLD PCB R/A
| Part | Insulation Material | Contact Material | Contact Shape | Contact Finish Thickness - Post | Number of Positions | Number of Rows | Contact Type | Termination | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish - Mating | Insulation Color | Connector Type | Material Flammability Rating | Current Rating (Amps) | Contact Length - Post [x] | Contact Length - Post [x] | Mounting Type | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Fastening Type | Voltage Rating | Insulation Height [z] | Insulation Height [z] | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Nylon 6T Polyamide (PA6T) | Phosphor Bronze | Square | Flash | 11 | 1 | Female Socket | Solder | All | -40 C | 105 ░C | Flash | Gold | Black | Header | UL94 V-0 | 2 A | 0.122 in | 3.1 mm | Right Angle Through Hole | Gold | 0.079 " | 2 mm | Push-Pull | |||||||
Sullins Connector Solutions | Nylon 6T Polyamide (PA6T) | Phosphor Bronze | Square | Flash | 11 | 1 | Female Socket | Solder | All | -40 C | 105 ░C | Flash | Gold | Black | Header | UL94 V-0 | 2 A | Surface Mount | Gold | 0.079 " | 2 mm | Push-Pull | 150 VDC | 0.181 in | 4.6 mm | ||||||
 Sullins Connector Solutions | Nylon 6T Polyamide (PA6T) | Phosphor Bronze | Square | Flash | 11 | 1 | Female Socket | Solder | All | -40 C | 105 ░C | Flash | Gold | Black | Header | UL94 V-0 | 2 A | Through Hole | Gold | 0.079 " | 2 mm | Push-Pull | 2.4 mm | 0.094 in | 4.4 mm | 0.173 in |
