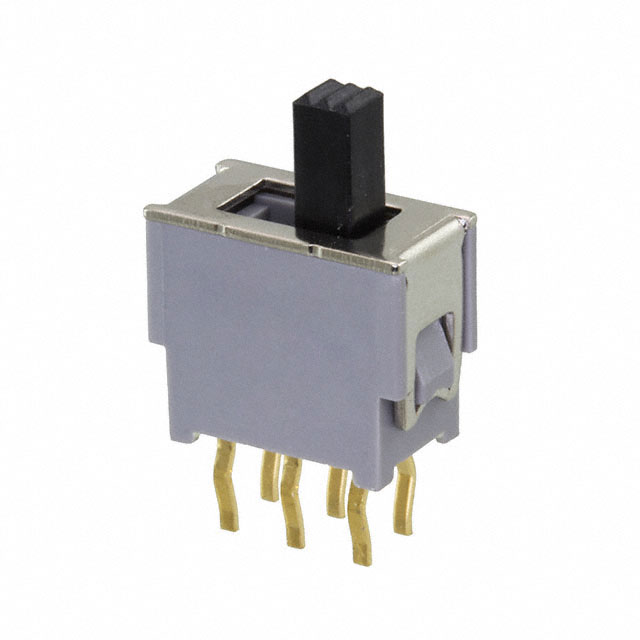

AS2E-2M Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH SLIDE DPDT 50MA 48V
| Part | Electrical Life | Switch Travel | Operating Force [Min] | Operating Force [Max] | Termination Style | Actuator Type | Contact Finish | Circuit | Actuator Length [x] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Voltage Rating - DC | Voltage Rating - AC | Current Rating (Amps) | Contact Timing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 10000 Cycles | 2.2 mm | 70 gf | 500 gf | PC Pin | Standard | Gold | DPDT | 4.3 mm | Through Hole | 85 °C | -20 ░C | On-Off-On | 48 V | 48 V | 50 mA | Non-Shorting (BBM) |
