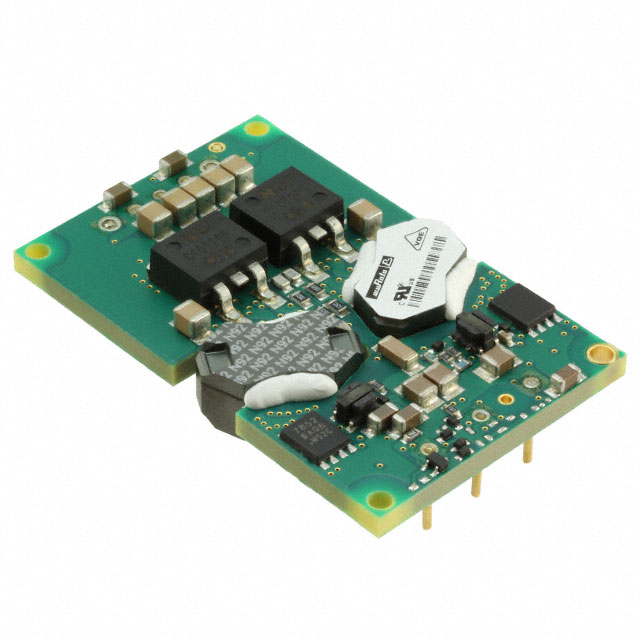

UVQ-5 Series

Catalog

DC DC CONVERTER 5V 100W

Part	Voltage - Output 1	Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Mounting Type	Package / Case	Efficiency	Applications	Number of Outputs	Current - Output (Max) [Max]	Features	Control Features	Voltage - Isolation	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Power (Watts)
Murata Electronics UVQ-5/20-D48N-C	5 V	Isolated Module	-40 C	110 °C	2.3 in	36.8 mm	1.45 in	10.7 mm	58.4 mm	0.42 "	Through Hole	8-DIP Module 1/4 Brick	90 %	ITE (Commercial)	1	20 A	OCP OTP OVP Remote On/Off SCP UVLO	Active Low Enable	2250 VDC	36 V	75 V	100 W
Murata Electronics UVQ-5/20-D24P-C	5 V	Isolated Module	-40 C	110 °C	2.3 in	36.8 mm	1.45 in	10.7 mm	58.4 mm	0.42 "	Through Hole	8-DIP Module 1/4 Brick	92 %	ITE (Commercial)	1	20 A	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	2000 V	18 V	36 V	100 W
Murata Electronics UVQ-5/20-D24N-C	5 V	Isolated Module	-40 C	110 °C	2.3 in	36.8 mm	1.45 in	10.7 mm	58.4 mm	0.42 "	Through Hole	8-DIP Module 1/4 Brick	92 %	ITE (Commercial)	1	20 A	OCP OTP OVP Remote On/Off SCP UVLO	Active Low Enable	2000 V	18 V	36 V	100 W

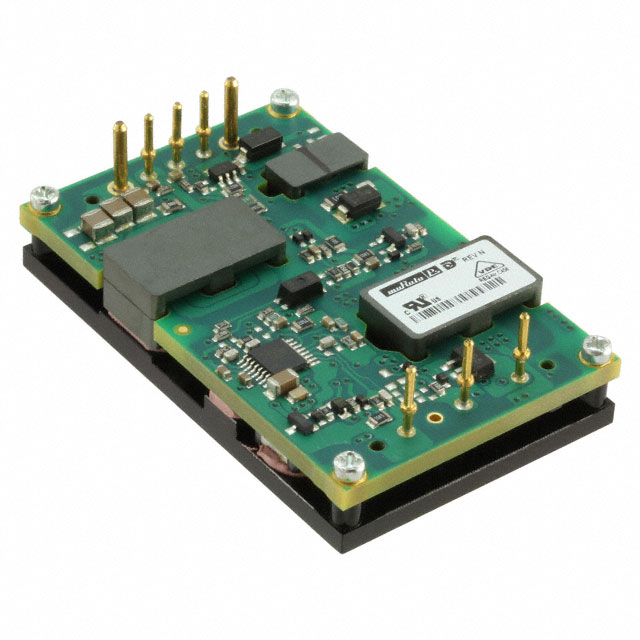

Murata Electronics UVQ-5/20-D48NB-C	5 V	Isolated Module	-40 C	110 °C	2.3 in	36.8 mm	1.45 in	12.7 mm	58.4 mm	0.5 in	Through Hole	8-DIP Module 1/4 Brick	90 %	ITE (Commercial)	1	20 A	OCP OTP OVP Remote On/Off SCP UVLO	Active Low Enable	2250 VDC	36 V	75 V	100 W
Murata Electronics UVQ-5/20-D24NB-C	5 V	Isolated Module	-40 C	110 °C	2.3 in	36.8 mm	1.45 in	12.7 mm	58.4 mm	0.5 in	Through Hole	8-DIP Module 1/4 Brick	92 %	ITE (Commercial)	1	20 A	OCP OTP OVP Remote On/Off SCP UVLO	Active Low Enable	2000 V	18 V	36 V	100 W
