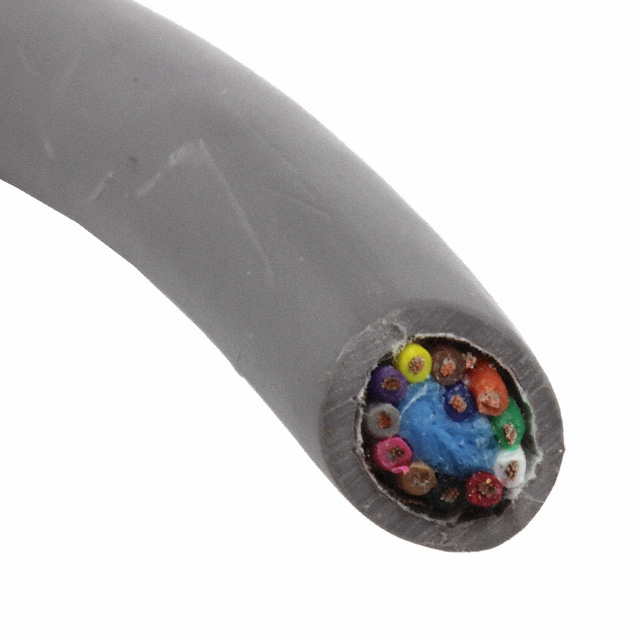

86212CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 12COND 24AWG SHLD 1000'
| Part | Conductor Insulation | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Length | Length | Number of Conductors | Features | Cable Type | Conductor Strand [diameter] | Conductor Strand [custom] | Wire Gauge | Voltage | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Material | Conductor Material | Jacket (Insulation) Material | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Poly-Vinyl Chloride (PVC) | Braid Foil | 0.04 in | 1.016 mm | Slate | 1000 ft | 304.8 m | 12 | Biological Compatibility Drain Wire | Multi-Conductor | 34 AWG | 10 | 24 AWG | 300 V | 90 % 100 % | 8.31 mm | 0.327 in | Aluminum Copper Tinned | Copper Tinned | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2661 |
