315-93 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

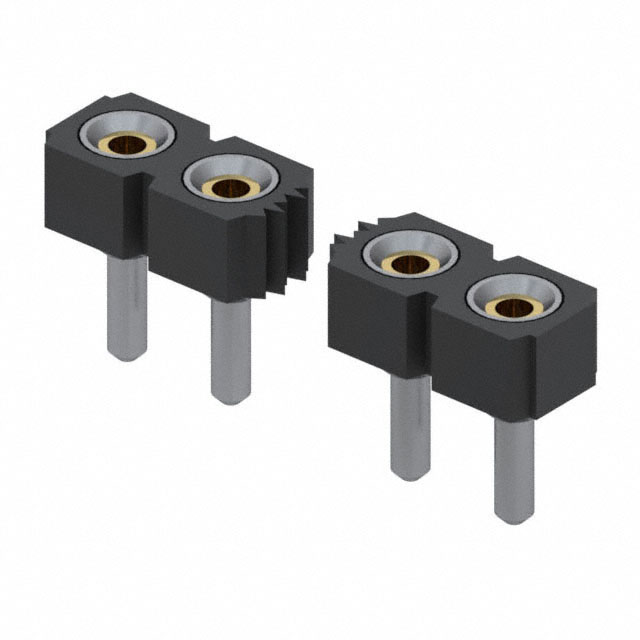

CONN RCPT 19POS 0.1 GOLD PCB
| Part | Insulation Material | Contact Shape | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Fastening Type | Contact Finish - Mating | Contact Finish - Post | Connector Type | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Voltage Rating | Voltage Rating | Number of Positions | Contact Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Mounting Type | Material Flammability Rating | Insulation Color | Number of Rows | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | 200 µin | 5.08 µm | -55 C | 125 °C | Solder | Push-Pull | Gold | Tin-Lead | Receptacle | 3 A | 0.1 " | 2.54 mm | All | 100 V | 150 VDC | 19 | Female Socket | 0.76 Ám | 30 Áin | 1.8 mm | 0.071 in | 2.41 mm | 0.095 in | Through Hole | UL94 V-0 | Black | 1 | |
Mill-Max Manufacturing Corp. | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | 200 µin | 5.08 µm | -55 C | 125 °C | Solder | Push-Pull | Gold | Tin-Lead | Receptacle | 3 A | 0.1 " | 2.54 mm | All | 100 V | 150 VDC | 53 | Female Socket | 0.76 Ám | 30 Áin | 1.8 mm | 0.071 in | 2.41 mm | 0.095 in | Through Hole | UL94 V-0 | Black | 1 | |
 Mill-Max Manufacturing Corp. | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | 200 µin | 5.08 µm | -55 C | 125 °C | Solder | Push-Pull | Gold | Tin | Receptacle | 3 A | 0.1 " | 2.54 mm | All | 100 V | 150 VDC | 45 | Female Socket | 0.76 Ám | 30 Áin | 1.8 mm | 0.071 in | 2.41 mm | 0.095 in | Through Hole | UL94 V-0 | Black | 1 | |
Mill-Max Manufacturing Corp. | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | 200 µin | 5.08 µm | -55 C | 125 °C | Solder | Push-Pull | Gold | Tin | Receptacle | 3 A | 0.1 " | 2.54 mm | All | 100 V | 150 VDC | 13 | Female Socket | 0.76 Ám | 30 Áin | 1.8 mm | 0.071 in | 2.41 mm | 0.095 in | Through Hole | UL94 V-0 | Black | 1 | |
Mill-Max Manufacturing Corp. | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | 200 µin | 5.08 µm | -55 C | 125 °C | Solder | Push-Pull | Gold | Tin-Lead | Receptacle | 3 A | 0.1 " | 2.54 mm | All | 100 V | 150 VDC | 15 | Female Socket | 0.76 Ám | 30 Áin | 1.8 mm | 0.071 in | 2.41 mm | 0.095 in | Through Hole | UL94 V-0 | Black | 1 | |
Mill-Max Manufacturing Corp. | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | 200 µin | 5.08 µm | -55 C | 125 °C | Solder | Push-Pull | Gold | Tin | Receptacle | 3 A | 0.1 " | 2.54 mm | All | 100 V | 150 VDC | 9 | Female Socket | 0.76 Ám | 30 Áin | 1.8 mm | 0.071 in | 2.41 mm | 0.095 in | Through Hole | UL94 V-0 | Black | 1 | |
Mill-Max Manufacturing Corp. | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | 200 µin | 5.08 µm | -55 C | 125 °C | Solder | Push-Pull | Gold | Tin-Lead | Receptacle | 3 A | 0.1 " | 2.54 mm | All | 100 V | 150 VDC | 61 | Female Socket | 0.76 Ám | 30 Áin | 1.8 mm | 0.071 in | 2.41 mm | 0.095 in | Through Hole | UL94 V-0 | Black | 1 | |
Mill-Max Manufacturing Corp. | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | 200 µin | 5.08 µm | -55 C | 125 °C | Solder | Push-Pull | Gold | Tin-Lead | Receptacle | 3 A | 0.1 " | 2.54 mm | All | 100 V | 150 VDC | 61 | Female Socket | 0.76 Ám | 30 Áin | 2.75 mm | Through Hole | UL94 V-0 | Black | 1 | 0.108 in | |||
Mill-Max Manufacturing Corp. | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | 200 µin | 5.08 µm | -55 C | 125 °C | Solder | Push-Pull | Gold | Tin | Receptacle | 3 A | 0.1 " | 2.54 mm | All | 100 V | 150 VDC | 57 | Female Socket | 0.76 Ám | 30 Áin | 1.8 mm | 0.071 in | 2.41 mm | 0.095 in | Through Hole | UL94 V-0 | Black | 1 | |
 Mill-Max Manufacturing Corp. | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | 200 µin | 5.08 µm | -55 C | 125 °C | Solder | Push-Pull | Gold | Tin-Lead | Receptacle | 3 A | 0.1 " | 2.54 mm | All | 100 V | 150 VDC | 59 | Female Socket | 0.76 Ám | 30 Áin | 2.75 mm | Through Hole | UL94 V-0 | Black | 1 | 0.108 in |
