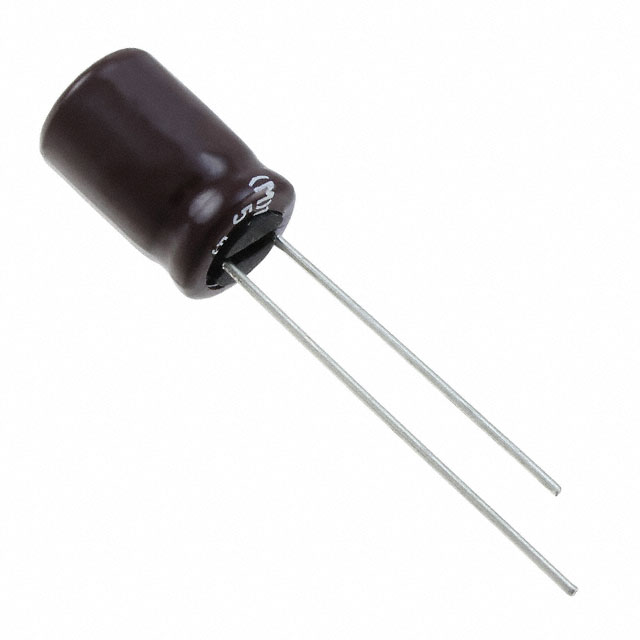

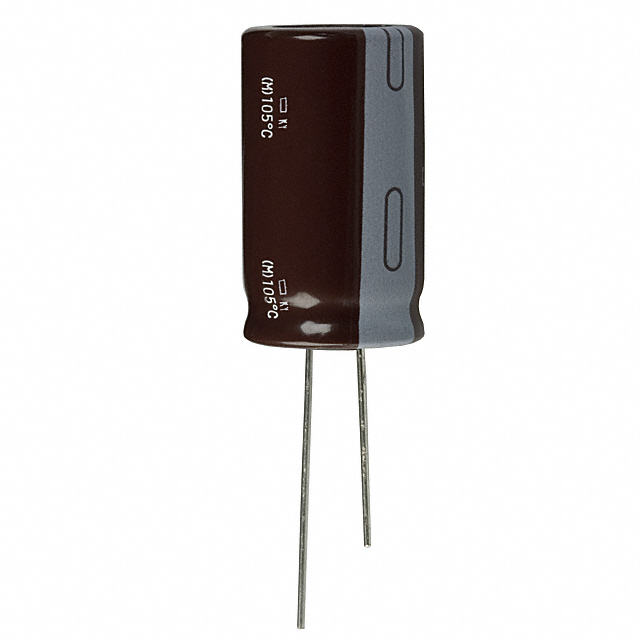

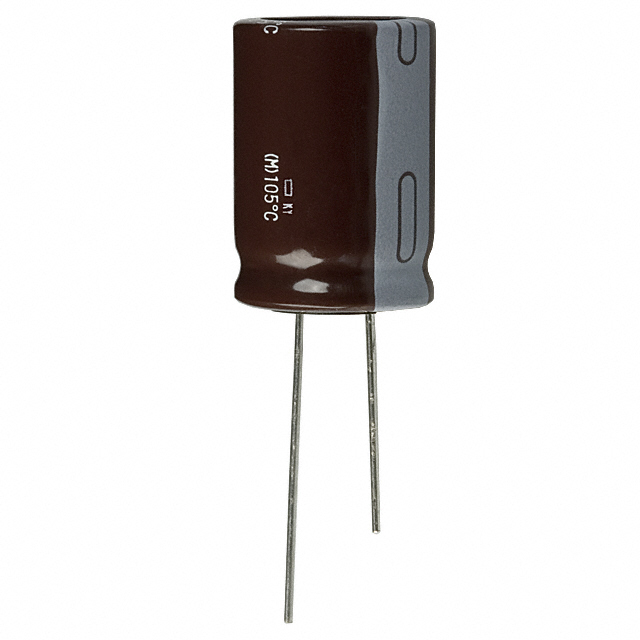

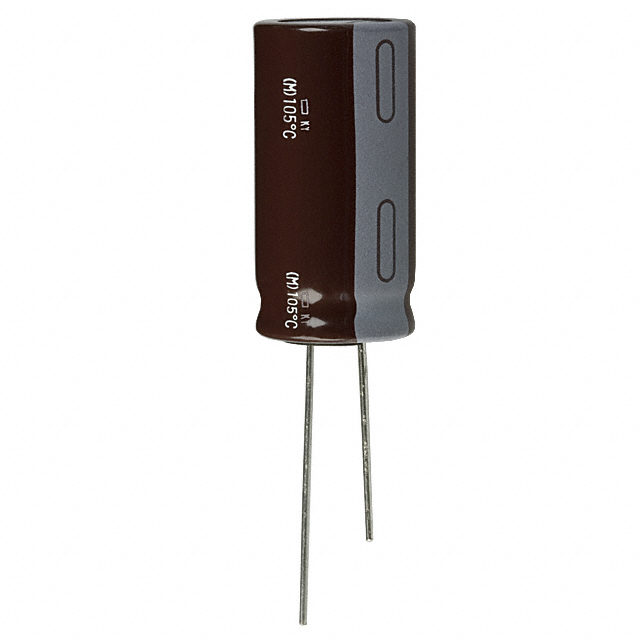

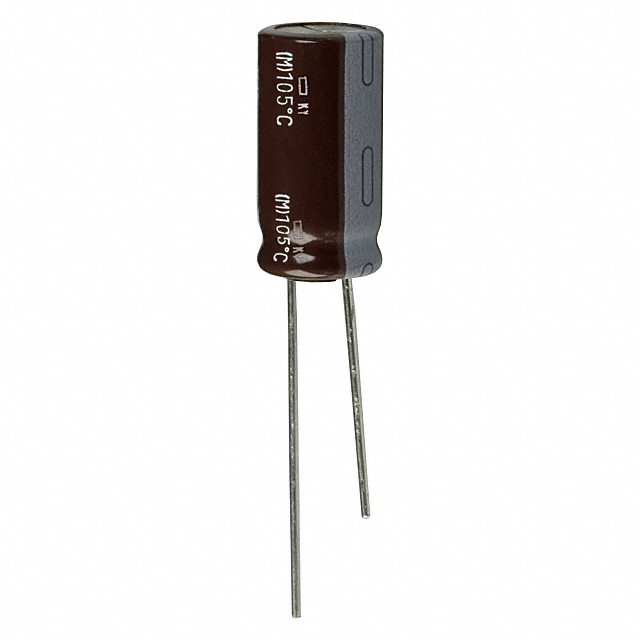

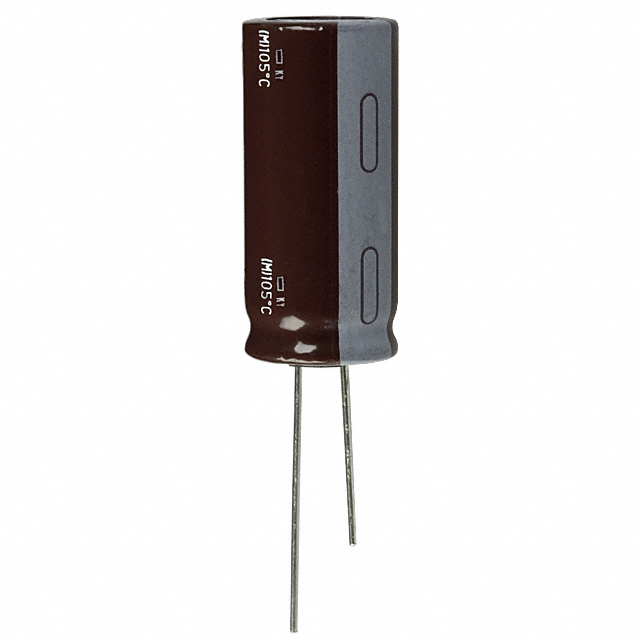

EKY-160E Series

Manufacturer: Chemi-Con

Catalog

CAP ALUM 4700UF 20% 16V RADIAL

Part	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Lifetime @ Temp.	Mounting Type	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Impedance	Package / Case	Capacitance	Applications	Lead Spacing	Lead Spacing	Polarization	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [z]	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Chemi-Con EKY-160ELL472MM25S	20 %	-40 C	105 ░C	3.14 A	10000 Hrs	Through Hole	2.669 A	0.709 in	18 mm	16 V	19 mOhms	Can Radial	4700 µF	General Purpose	0.295 in	7.5 mm	Polar	26.5 mm	1.043 in

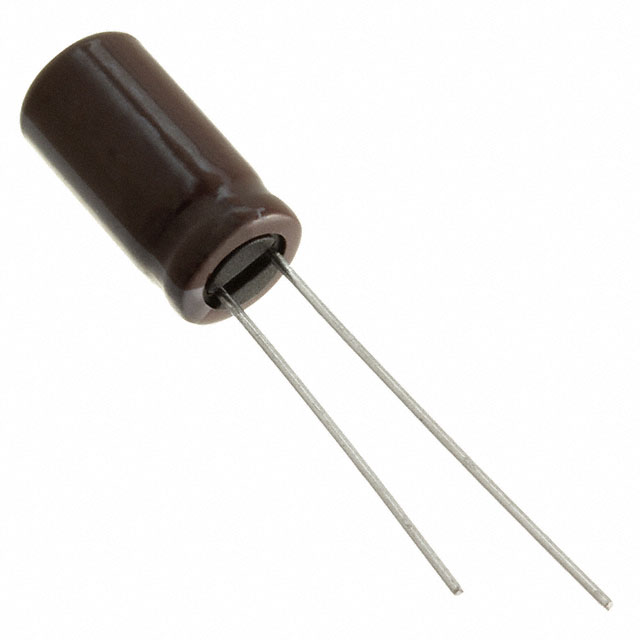

Chemi-Con EKY-160ELL471MH15D	20 %	-40 C	105 ░C	840 mA	7000 Hrs	Through Hole	420 mA	0.315 in	8 mm	16 V	87 mOhms	Can Radial	470 µF	General Purpose	0.138 in	3.5 mm	Polar	16.5 mm	0.65 in

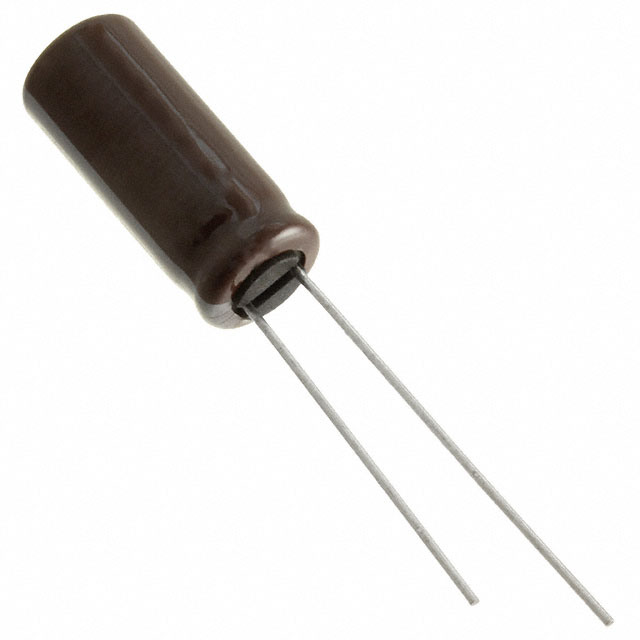

Chemi-Con EKY-160ELL681MH20D	20 %	-40 C	105 ░C	1.05 A	7000 Hrs	Through Hole	630 mA	0.315 in	8 mm	16 V	69 mOhms	Can Radial	680 µF	General Purpose	0.138 in	3.5 mm	Polar			0.846 "	21.5 mm
Chemi-Con EKY-160ELL562MMN3S	20 %	-40 C	105 ░C		10000 Hrs	Through Hole	3.5445 A	0.709 in	18 mm	16 V	15 mOhms	Can Radial	5.6 mF	General Purpose	0.295 in	7.5 mm	Polar	1.299 in				33 mm
Chemi-Con EKY-160ELL562MLP1S	20 %	-40 C	105 ░C	3.61 A	10000 Hrs	Through Hole	3.0685 A	0.63 in	16 mm	16 V	15 mOhms	Can Radial	5.6 mF	General Purpose	0.295 in	7.5 mm	Polar		1.457 in				37 mm
Chemi-Con EKY-160ELL560ME11D	20 %	-40 C	105 ░C	210 mA	5000 Hrs	Through Hole	84 mA	0.197 in	5 mm	16 V	580 mOhms	Can Radial	56 µF	General Purpose	0.079 in	2 mm	Polar				0.492 in			12.5 mm
Chemi-Con EKY-160ETD221MF11D	20 %	-40 C	105 ░C			Through Hole		0.248 "	6.3 mm	16 V		Can Radial	220 µF	General Purpose	0.098 in	2.5 mm	Polar				0.492 in			12.5 mm
Chemi-Con EKY-160ELL472MLN3S	20 %	-40 C	105 ░C	3.45 A	10000 Hrs	Through Hole	2.9325 A	0.63 in	16 mm	16 V	17 mOhms	Can Radial	4700 µF	General Purpose	0.295 in	7.5 mm	Polar	1.299 in				33 mm
Chemi-Con EKY-160ETD471MH15S	20 %	-40 C	105 ░C	840 mA	7000 Hrs	Through Hole	420 mA	0.315 in	8 mm	16 V		Can Radial	470 µF	General Purpose	0.138 in	3.5 mm	Polar	16.5 mm	0.65 in
Chemi-Con EKY-160ELL681MJ16S	20 %	-40 C	105 ░C	1.21 A	7000 Hrs	Through Hole	726 mA	0.394 in	10 mm	16 V	60 mOhms	Can Radial	680 µF	General Purpose	0.197 "	5 mm	Polar	0.689 in							17.5 mm
