77207 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

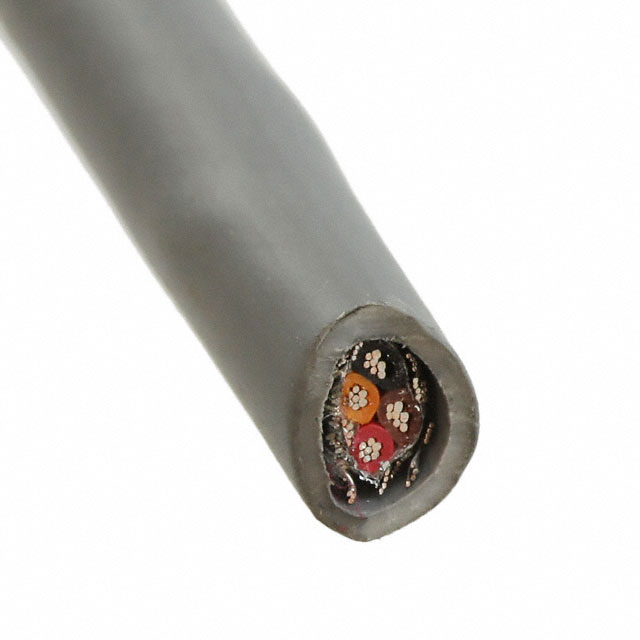

CABLE 4COND 20AWG SHLD
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Wire Gauge | Jacket (Insulation) Material | Number of Conductors | Conductor Insulation | Ratings | Jacket Color | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Cable Type | Shield Type | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 100 % | 0.813 mm | 0.032 in | 28 AWG | 7 | -50 °C | 105 ░C | Copper Tinned | 20 AWG | Polyphenylene Ether Modified (mPPE) | 4 | Polyphenylene Ether Modified (mPPE) | ISO 10993 | Slate | Biological Compatibility | 6.02 mm | 0.237 " | 304.8 m | 1000 ft | Multi-Conductor | Braid Foil | 600 V |
ALPHA WIRE | Aluminum Copper Tinned | 100 % | 0.813 mm | 0.032 in | 28 AWG | 7 | -50 °C | 105 ░C | Copper Tinned | 20 AWG | Polyphenylene Ether Modified (mPPE) | 4 | Polyphenylene Ether Modified (mPPE) | ISO 10993 | Slate | Biological Compatibility | 6.02 mm | 0.237 " | Multi-Conductor | Braid Foil | 600 V |
