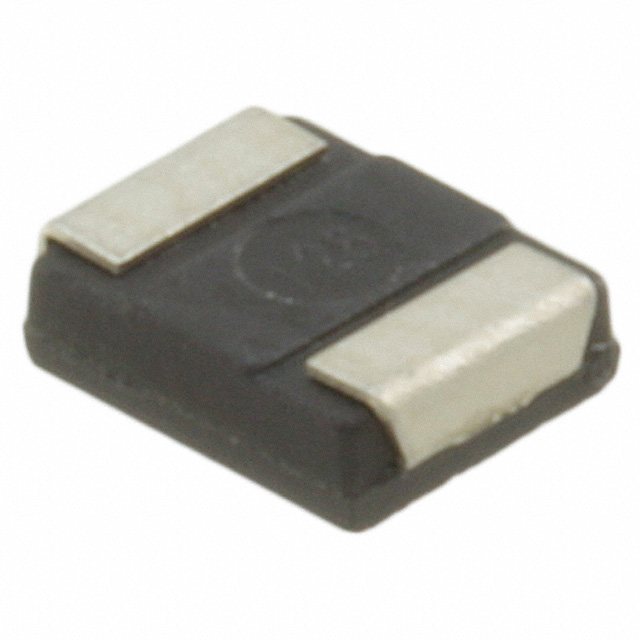

6TPC Series

Catalog

CAP TANT POLY 150UF 6.3V 2917

Part	Tolerance	Features	Mounting Type	ESR (Equivalent Series Resistance)	Type	Voltage - Rated	Package / Case	Capacitance	Manufacturer Size Code	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case
Panasonic Electronic Components 6TPC150M	20 %	General Purpose	Surface Mount	40 mOhm	Molded	6.3 VDC	2917 (7343 Metric)	150 µF	D2	0.169 "	7.3 mm	0.287 "	4.3 mm	0.079 in	2 mm	-55 C	105 ░C
Panasonic Electronic Components 6TPC100M	20 %	General Purpose	Surface Mount	45 mOhm	Molded	6.3 VDC	2917 (7343 Metric)	100 µF	D2	0.169 "	7.3 mm	0.287 "	4.3 mm	0.079 in	2 mm	-55 C	105 ░C
Panasonic Electronic Components 6TPC47M	20 %	General Purpose	Surface Mount	55 mOhm	Molded	6.3 VDC	1411	47 µF	B1	0.11 "	3.5 mm	0.138 in	2.8 mm			-55 C	105 ░C	1.2 mm	0.047 "	3528 Metric
Panasonic Electronic Components 6TPC47MB	20 %	General Purpose	Surface Mount	70 mOhm	Molded	6.3 VDC	1411	47 µF	B1	0.11 "	3.5 mm	0.138 in	2.8 mm			-55 C	105 ░C	1.2 mm	0.047 "	3528 Metric
Panasonic Electronic Components 6TPC330MA	20 %	General Purpose	Surface Mount	40 mOhm	Molded	6.3 VDC	2917 (7343 Metric)	330 µF	D2	0.169 "	7.3 mm	0.287 "	4.3 mm	0.079 in	2 mm	-55 C	105 ░C
