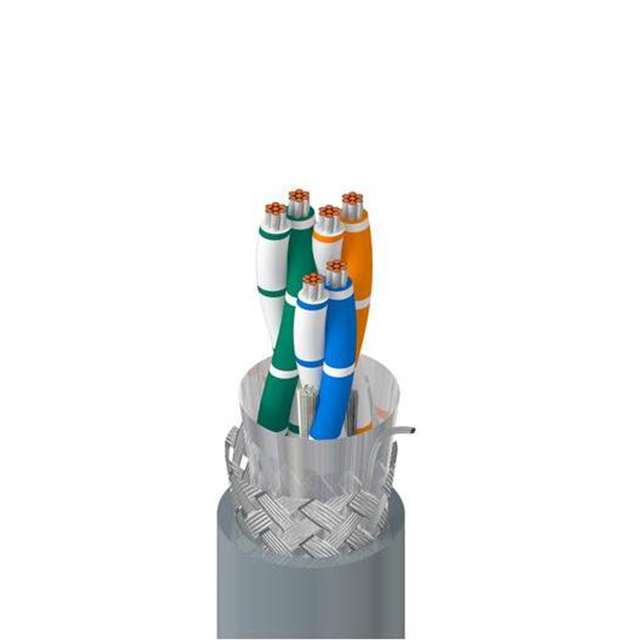

9843 Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 6COND 24AWG
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Number of Conductors | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Jacket Color | Cable Type | Features | Ratings | Conductor Material | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 90 % 100 % | 0.035 in | 0.889 mm | 9.14 mm | 0.36 in | Polyethylene (PE) | 6 | Poly-Vinyl Chloride (PVC) | 80 °C | -30 ░C | 7 | 32 AWG | Braid Foil | Chrome | Multi-Pair | Drain Wire | UL Style 2919 | Copper Tinned | 24 AWG |
