M2444 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

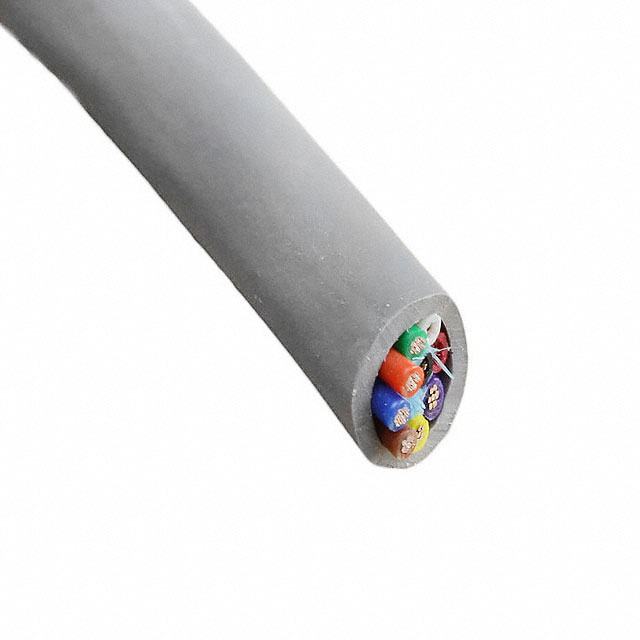

CABLE 9CON 24AWG SLATE SHLD 100'
| Part | Shield Coverage | Shield Material | Features | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Wire Gauge | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Jacket (Insulation) Material | Number of Conductors | Jacket Color | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Conductor Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | Drain Wire Rip Cord | Multi-Conductor | 0.813 mm | 0.032 in | UL Style 2464 | 24 AWG | 100 ft | 30.5 m | 0.25 " | 6.35 mm | 80 °C | -20 ░C | Braid Foil | Poly-Vinyl Chloride (PVC) | 9 | Slate | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | 300 VDC | Copper Tinned | ||
ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | Drain Wire Rip Cord | Multi-Conductor | 0.813 mm | 0.032 in | UL Style 2464 | 24 AWG | 0.25 " | 6.35 mm | 80 °C | -20 ░C | Braid Foil | Poly-Vinyl Chloride (PVC) | 9 | Slate | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | 300 VDC | Copper Tinned | 304.8 m | 1000 ft |
