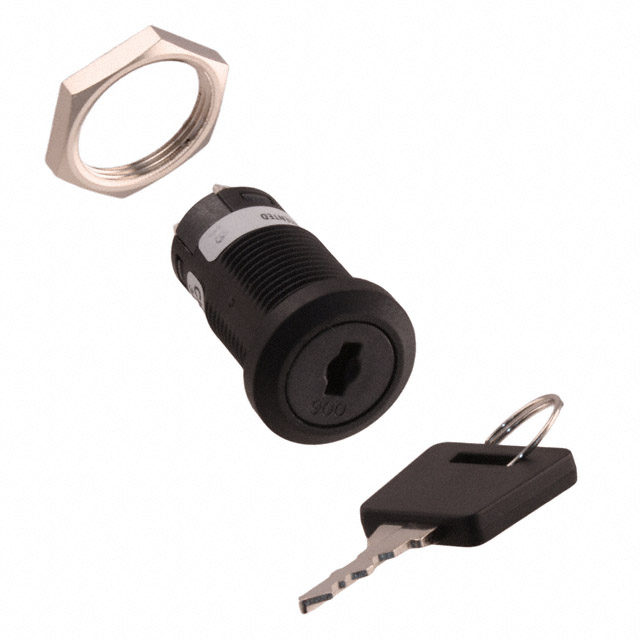

CKM12AFW Series

Catalog

SWITCH KEYLOCK 2POS SPDT 3A 250V

Part	Electrical Life	Depth Behind Flange	Mechanical Life	Actuator Type	Mounting Type	Key Removable Positions	Contact Timing	Switch Function	Current Rating (Amps)	Features	Contact Finish	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Termination Style	Angle of Throw	Circuit	Contact Material
NKK Switches CKM12AFW01-008	10000 Cycles	31.2 mm	30000 Steps	Flat Key	Panel Mount	All	Non-Shorting (BBM)	On-On	3 A	Epoxy Sealed Terminals	Silver	16 mm	250 V	-25 °C	70 °C	2	Solder Lug	90 °	SPDT	Silver (Ag)
NKK Switches CKM12AFW01-003	10000 Cycles	31.2 mm	30000 Steps	Flat Key	Panel Mount	All	Non-Shorting (BBM)	On-On	3 A	Epoxy Sealed Terminals	Silver	16 mm	250 V	-25 °C	70 °C	2	Solder Lug	90 °	SPDT	Silver (Ag)
NKK Switches CKM12AFW01-010	10000 Cycles	31.2 mm	30000 Steps	Flat Key	Panel Mount	All	Non-Shorting (BBM)	On-On	3 A	Epoxy Sealed Terminals	Silver	16 mm	250 V	-25 °C	70 °C	2	Solder Lug	90 °	SPDT	Silver (Ag)
NKK Switches CKM12AFW01-006	10000 Cycles	31.2 mm	30000 Steps	Flat Key	Panel Mount	All	Non-Shorting (BBM)	On-On	3 A	Epoxy Sealed Terminals	Silver	16 mm	250 V	-25 °C	70 °C	2	Solder Lug	90 °	SPDT	Silver (Ag)
NKK Switches CKM12AFW01-001	10000 Cycles	31.2 mm	30000 Steps	Flat Key	Panel Mount	All	Non-Shorting (BBM)	On-On	3 A	Epoxy Sealed Terminals	Silver	16 mm	250 V	-25 °C	70 °C	2	Solder Lug	90 °	SPDT	Silver (Ag)

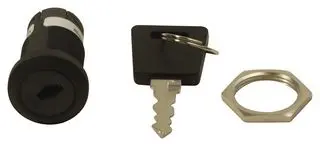

NKK Switches CKM12AFW01	10000 Cycles	31.2 mm	30000 Steps	Flat Key	Panel Mount	All	Non-Shorting (BBM)	On-On	3 A	Epoxy Sealed Terminals	Silver	16 mm	250 V	-25 °C	70 °C	2	Solder Lug	90 °	SPDT	Silver (Ag)
NKK Switches CKM12AFW01-004	10000 Cycles	31.2 mm	30000 Steps	Flat Key	Panel Mount	All	Non-Shorting (BBM)	On-On	3 A	Epoxy Sealed Terminals	Silver	16 mm	250 V	-25 °C	70 °C	2	Solder Lug	90 °	SPDT	Silver (Ag)
NKK Switches CKM12AFW01-007	10000 Cycles	31.2 mm	30000 Steps	Flat Key	Panel Mount	All	Non-Shorting (BBM)	On-On	3 A	Epoxy Sealed Terminals	Silver	16 mm	250 V	-25 °C	70 °C	2	Solder Lug	90 °	SPDT	Silver (Ag)
