RR9LE2500 Series

Catalog

AC/DC DSKTP/WALL MT ADPT 12V 30W

Part	Input Type	No Load Power Consumption	Region Utilized	Power (Watts)	Voltage - Output	Operating Temperature [Max]	Operating Temperature [Min]	Form	Output Connector [diameter]	Output Connector	Output Connector [x]	Cord Length	Cord Length	Applications	Efficiency	Polarization	Current - Output (Max) [Max]	Standard Number	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector

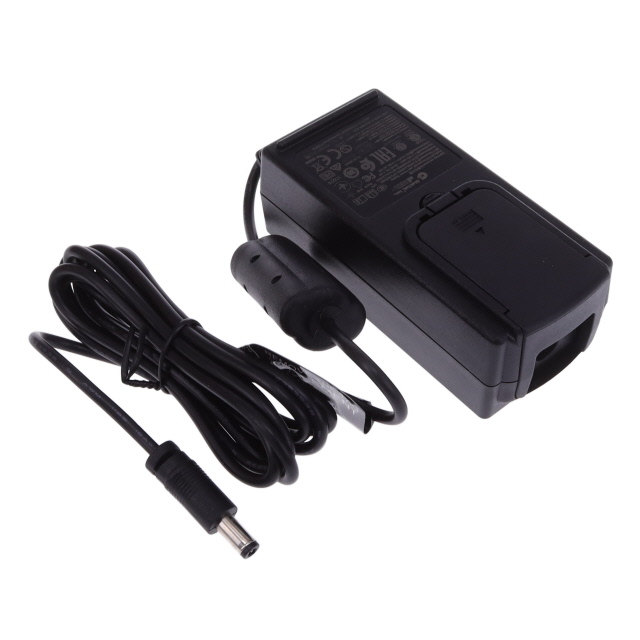

GlobTek, Inc. RR9LE2500LCPCIM(R6B)	Cord Cord (Sold Separately) Multi-Blade	75 mW	International	30 Watts	12 V	40 °C	-10 °C	Desktop Wall Mount	2.5 mm 5.5 mm	Barrel Plug	11 mm	1.83 m	72 in	Household Appliances ITE (Commercial) Medical	CoC Tier 2 Level VI	Positive Center	2.5 A	60335-1 60601-1 60950-1 62368-1	102.2 mm	1.44 in	1.87 "	4.02 in	47.5 mm	36.7 mm	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UkrSEPRO VCCI	264 VAC	90 VAC

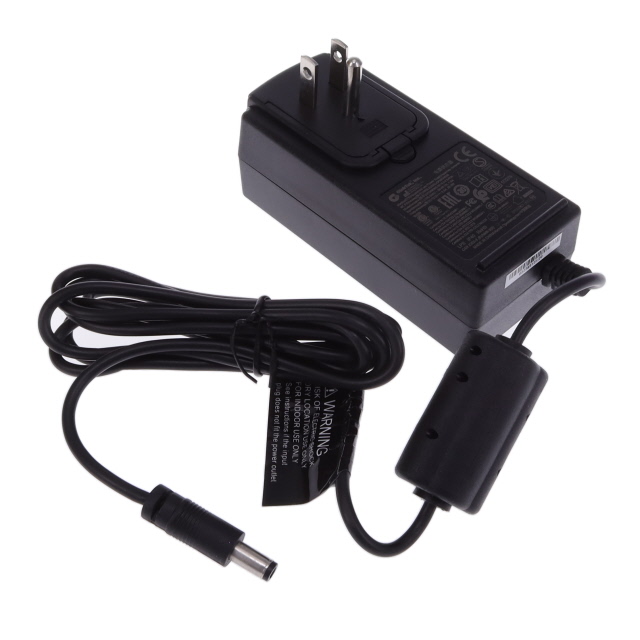

GlobTek, Inc. RR9LE2500LCPIMNAR6B	Cord (Sold Separately) Multi-Blade (Single Blade Included)	75 mW	International	30 Watts	12 V	40 °C	-10 °C	Desktop Wall Mount	2.5 mm 5.5 mm	Barrel Plug	11 mm	1.83 m	72 in	Household Appliances ITE (Commercial) Medical	CoC Tier 2 Level VI	Positive Center	2.5 A	60335-1 60601-1 60950-1 62368-1	102.2 mm	1.44 in	1.87 "	4.02 in	47.5 mm	36.7 mm	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UkrSEPRO VCCI	264 VAC	90 VAC	IEC 320-C6 Multi-Blade (Single Blade Included)
