standard-buccaneer-r Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, CABLE MOUNT RECEPTACLE, 7 CONTACTS, SCREW SOCKET
| Part | Color | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Primary Material | Mounting Type | Material Flammability Rating | Ingress Protection | Shell Material | Current Rating (Amps) | Contact Material | Backshell Material, Plating | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Orientation | Shielding | Insert Material | Connector Type | Features | Contact Finish - Mating | Voltage Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Mounting Feature | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | Black | 8 mm | 6 mm | 0.315 in | 0.236 in | Plastic | Free Hanging (In-Line) | UL94 HB | IP68 IP69K | Glass Filled Nylon Polyamide (PA) | 3 A | Brass | Glass Filled Nylon Polyamide (PA) | -20 C | 70 °C | Screw | Keyed | Unshielded | Nylon Polyamide (PA) | Female Sockets Plug | Backshell Coupling Nut | Nickel | 277 VAC/DC | |||||||||

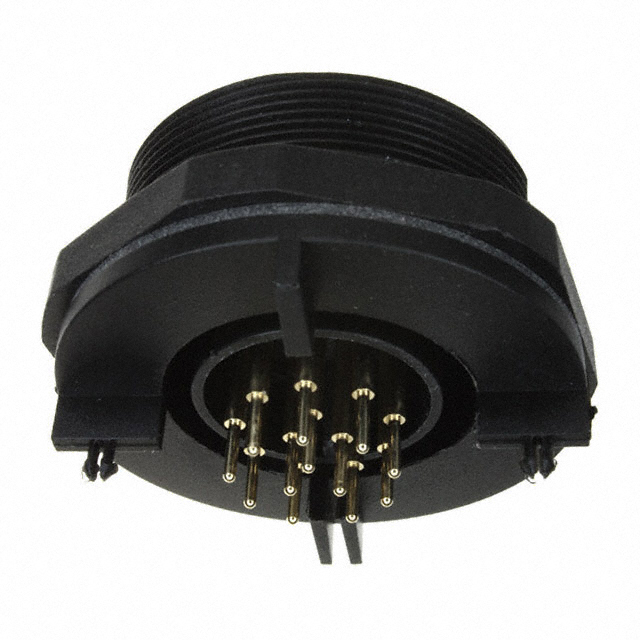

 BULGIN LIMITED | Black | Plastic | Panel Mount Through Hole | UL94 HB | IP68 IP69K | Glass Filled Nylon Polyamide (PA) | 5 A | Copper Alloy | -20 C | 70 °C | Solder | Keyed | Unshielded | Nylon Polyamide (PA) | Receptacle Female Sockets | Gold | 50 VAC | 0.099 µm | 3.9 µin | 12 | Bulkhead - Front Side Nut | |||||||||||

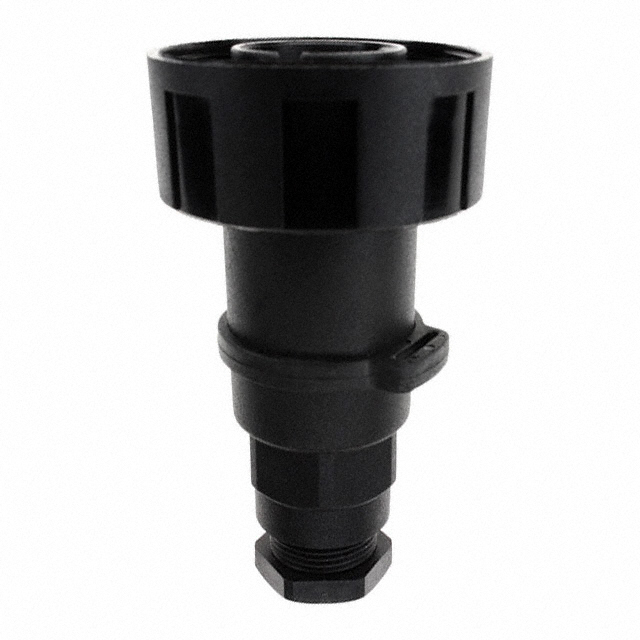

 BULGIN LIMITED | Black | 8 mm | 6 mm | 0.315 in | 0.236 in | Plastic | Free Hanging (In-Line) | UL94 HB | IP68 IP69K | Glass Filled Nylon Polyamide (PA) | 3 A | Brass | Glass Filled Nylon Polyamide (PA) | -20 C | 70 °C | Screw | Keyed | Unshielded | Nylon Polyamide (PA) | Male Pins Plug | Backshell Coupling Nut | Nickel | 277 VAC/DC | |||||||||

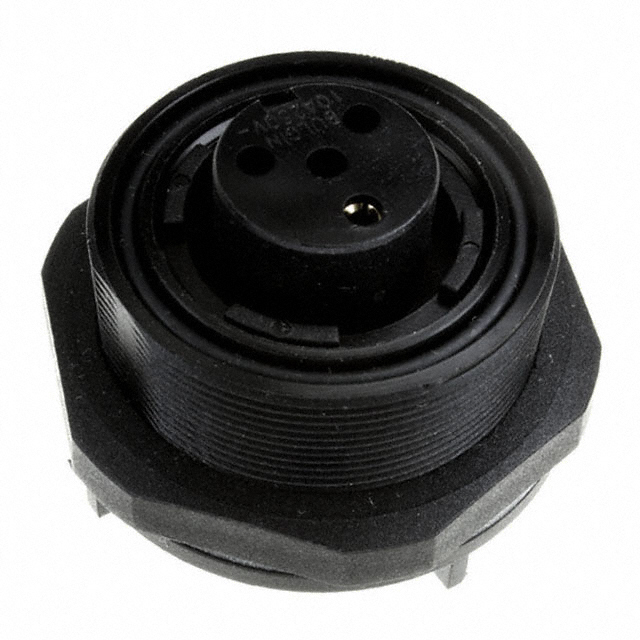

 BULGIN LIMITED | Black | Plastic | Panel Mount Through Hole | UL94 HB | IP68 IP69K | Glass Filled Nylon Polyamide (PA) | 12 A | -20 C | 70 °C | Solder | Keyed | Unshielded | Nylon Polyamide (PA) | Receptacle Female Sockets | Gold | 277 VAC/DC | Bulkhead - Front Side Nut | 3 | 1 | 2 | ||||||||||||
 BULGIN LIMITED | Black | Plastic | Free Hanging (In-Line) | UL94 HB | IP68 IP69K | Glass Filled Nylon Polyamide (PA) | 3 A | Brass | Glass Filled Nylon Polyamide (PA) | -20 C | 70 °C | Screw | Keyed | Unshielded | Nylon Polyamide (PA) | Male Pins Plug | Backshell Coupling Nut | Nickel | 277 VAC/DC | 0.276 in 0.354 in | 7 mm 9 mm | |||||||||||

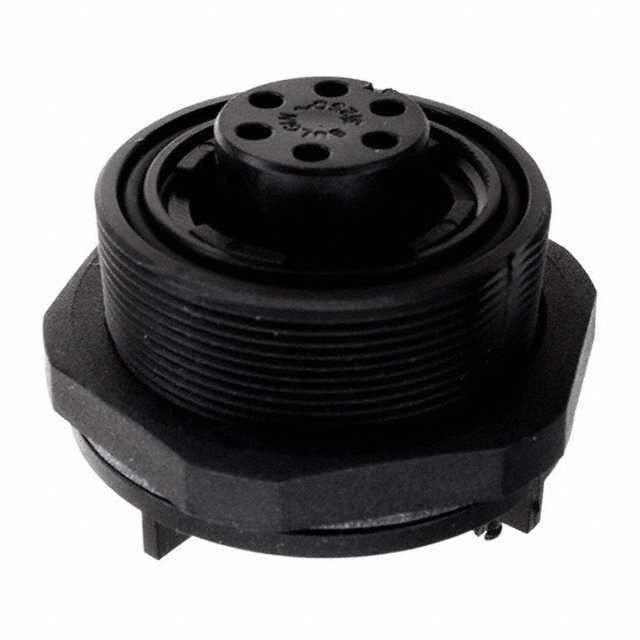

 BULGIN LIMITED | Black | Plastic | Panel Mount Through Hole | UL94 HB | IP68 IP69K | Glass Filled Nylon Polyamide (PA) | 5 A | -20 C | 70 °C | Solder | Keyed | Unshielded | Nylon Polyamide (PA) | Receptacle Female Sockets | Gold | 277 VAC/DC | 6 | Bulkhead - Front Side Nut | ||||||||||||||
 BULGIN LIMITED | Black | Plastic | UL94 HB | IP68 IP69K | Glass Filled Nylon Polyamide (PA) | 6 A | Brass | -20 C | 70 °C | Screw | Keyed | Unshielded | Nylon Polyamide (PA) | Receptacle Female Sockets | Nickel | 277 VAC/DC | 4 | Flange | ||||||||||||||

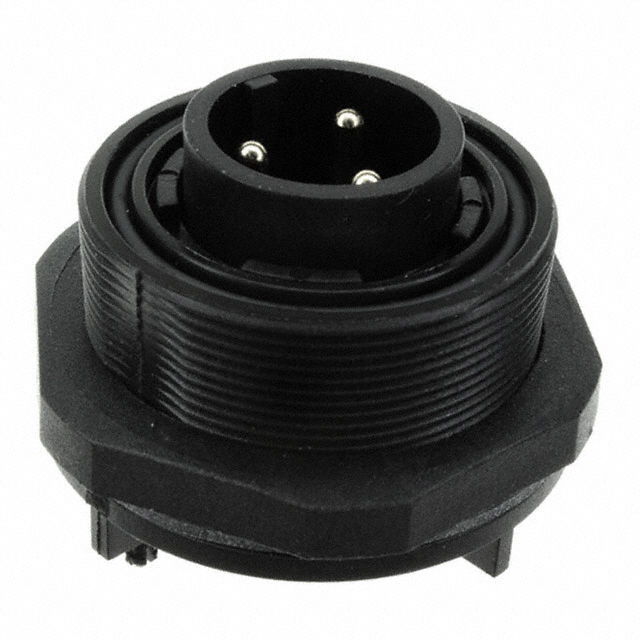

 BULGIN LIMITED | Black | Plastic | Panel Mount Through Hole | UL94 HB | IP68 IP69K | Glass Filled Nylon Polyamide (PA) | 12 A | -20 C | 70 °C | Solder | Keyed | Unshielded | Nylon Polyamide (PA) | Male Pins Receptacle | Gold | 277 VAC/DC | Bulkhead - Front Side Nut | 3 | 1 | 2 | ||||||||||||
 BULGIN LIMITED | Black | Plastic | Panel Mount Through Hole | UL94 HB | IP68 IP69K | Glass Filled Nylon Polyamide (PA) | 5 A | Copper Alloy | -20 C | 70 °C | Solder | Keyed | Unshielded | Nylon Polyamide (PA) | Male Pins Receptacle | Gold | 50 VAC | 0.099 µm | 3.9 µin | 12 | Bulkhead - Front Side Nut |
