2314915 Series

Catalog

16P,2MM,B-B,REC,DRHZ,2.1,SN,TB

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post	Mounting Type	Insulation Color	Insulation Material	Contact Shape	Contact Material	Contact Finish - Post	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Number of Positions	Number of Rows	Material Flammability Rating	Connector Type	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Number of Positions

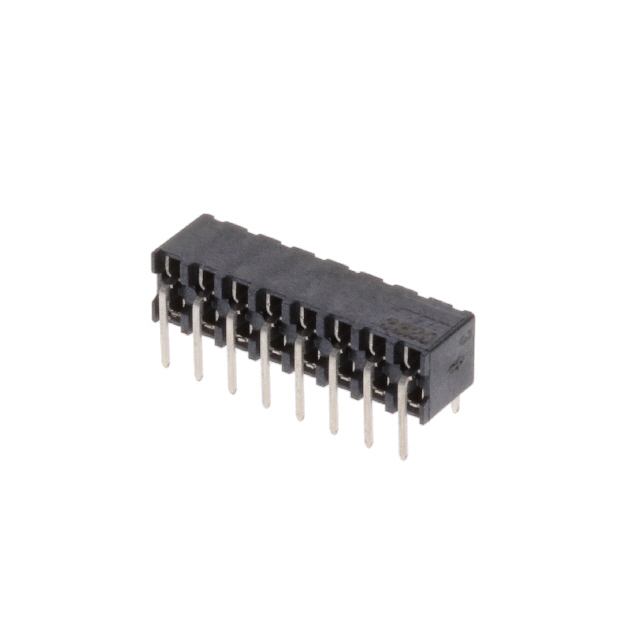

TE Connectivity Raychem Cable Protection 1-2314915-6	118.1 µin	3 µm	2 A	Female Socket	0.079 in	2 mm	0.083 in	2.11 mm	Through Hole Right Angle	Black	Liquid Crystal Polymer (LCP)	Square	Phosphor Bronze	Tin	Push-Pull	-40 °C	105 ░C	All	3 µm	118.1 µin	Solder	16	2	UL94 V-0	Receptacle	125 VDC	0.079 in	2 mm	0.161 in	4.1 mm

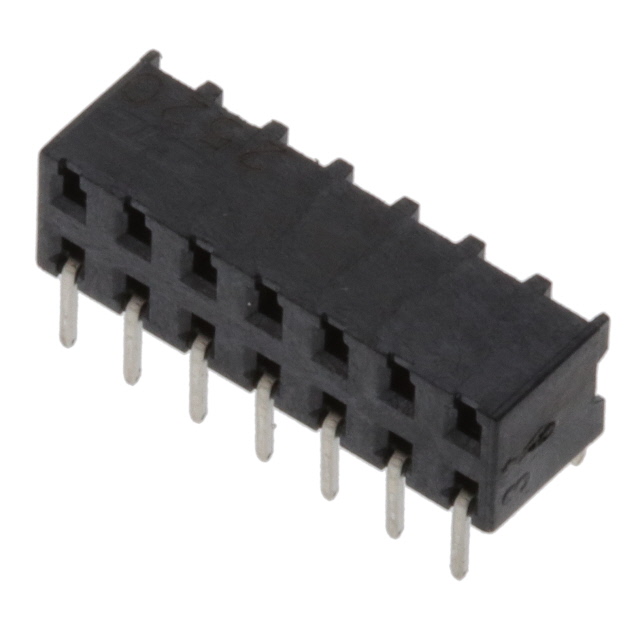

TE Connectivity Raychem Cable Protection 1-2314915-4	118.1 µin	3 µm	2 A	Female Socket	0.079 in	2 mm	0.083 in	2.11 mm	Through Hole Right Angle	Black	Liquid Crystal Polymer (LCP)	Square	Phosphor Bronze	Tin	Push-Pull	-40 °C	105 ░C	All	3 µm	118.1 µin	Solder		2	UL94 V-0	Receptacle	125 VDC	0.079 in	2 mm	0.161 in	4.1 mm	14
