TFT20026 Series

Catalog

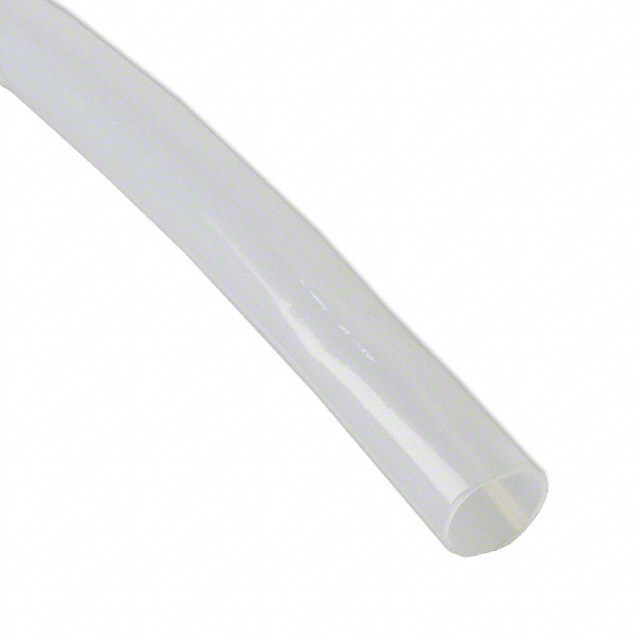

SLEEVING, PTFE (POLYTETRAFLUOROETHYLENE), NATURAL, 0.533 MM, 305 M, 1000 FT

Part	Abrasion Protection	Heat Protection	Type Attributes	Wall Thickness	Wall Thickness	Type	Color	Length	Length	Material Flammability Rating	Environment Protection	Operating Temperature [Min]	Operating Temperature [Max]	Diameter - Inside	Diameter - Inside	Liquid Protection	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Length [x]	Length [x]
ALPHA WIRE TFT20026 NA001	Abrasion Resistant	Heat Resistant	Smooth	0.009 in	0.23 mm	Solid Tubing	Natural	304.8 m	1000 ft	UL94 V-0	Corrosion Resistant	-75 °C	260 °C	0.41 mm	0.016 in	Oil Resistant	Polytetrafluoroethylene (PTFE)	0.039 in	0.99 mm
ALPHA WIRE TFT20026 NA002	Abrasion Resistant	Heat Resistant	Smooth	0.009 in	0.23 mm	Solid Tubing	Natural			UL94 V-0	Corrosion Resistant	-75 °C	260 °C	0.41 mm	0.016 in	Oil Resistant	Polytetrafluoroethylene (PTFE)	0.039 in	0.99 mm	152.4 m	500 ft
ALPHA WIRE TFT20026 NA005	Abrasion Resistant	Heat Resistant	Smooth	0.009 in	0.23 mm	Solid Tubing	Natural	30.48 m	100 '	UL94 V-0	Corrosion Resistant	-75 °C	260 °C	0.41 mm	0.016 in	Oil Resistant	Polytetrafluoroethylene (PTFE)	0.039 in	0.99 mm
