172360 Series
Manufacturer: Molex
Beta
⌘K

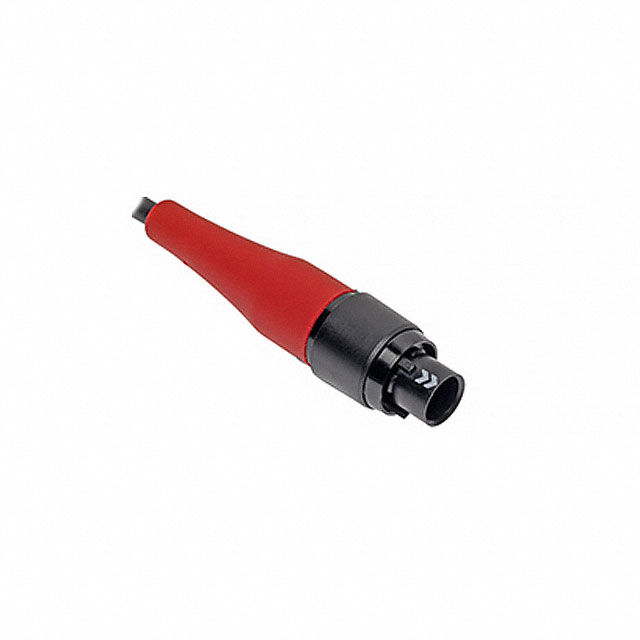

CONN PLUG MALE 17POS SOLDER CUP
| Part | Mounting Type | Contact Finish - Mating | Backshell Material, Plating | Shell Material | Color | Connector Type | Ingress Protection | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Orientation | Primary Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Material | Current Rating (Amps) | Applications | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Free Hanging (In-Line) | Gold | Polyetherimide (PEI) | Polyetherimide (PEI) | Black Red | Male Pins Plug | IP50 | 30 Áin | 0.76 Ám | Latch Lock Push-Pull | AA | Plastic | 300 VAC | -40 °C | 105 ░C | Backshell Spring Lock Strain Relief | Copper Alloy | 1.6 A | Medical | Polyetherimide (PEI) |
