EZM06 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

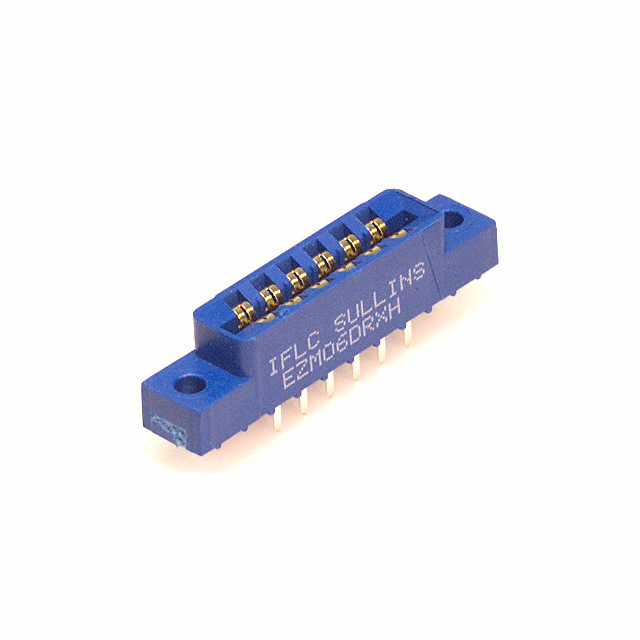

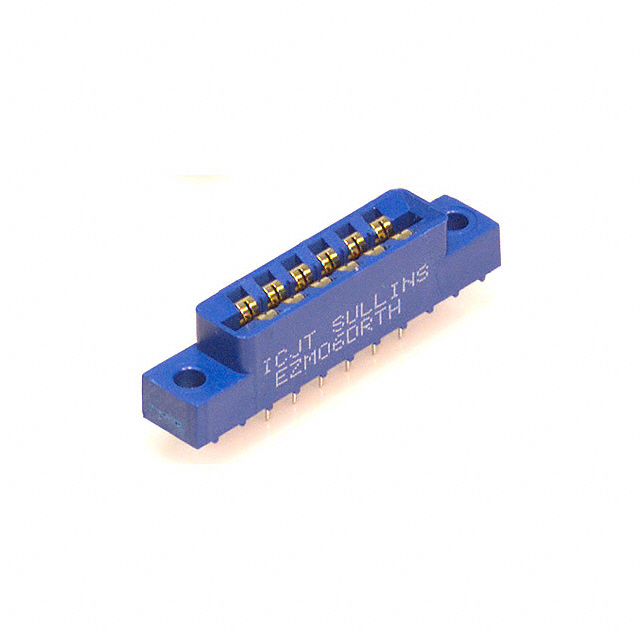

CONN EDGE DUAL FMALE 12POS 0.156
| Part | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Mounting Type | Card Type | Contact Finish | Contact Material | Number of Rows [custom] | Termination | Read Out | Color | Number of Positions/Bay/Row | Pitch | Pitch | Card Thickness | Card Thickness | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 0.25 Ám | 10 Áin | Female | -65 ░C | 125 °C | Full Bellows | Through Hole | Non Specified - Dual Edge | Gold | Phosphor Bronze | 2 | Solder | Dual | Blue | 6 | 3.96 mm | 0.156 in | 1.57 mm | 0.062 in | 0.125 " | 3.18 mm | 12 |
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 0.25 Ám | 10 Áin | Female | -65 ░C | 125 °C | Full Bellows | Through Hole | Non Specified - Dual Edge | Gold | Phosphor Bronze | 2 | Solder | Dual | Blue | 6 | 3.96 mm | 0.156 in | 1.57 mm | 0.062 in | 0.125 " | 3.18 mm | 12 |
