9101-1573 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

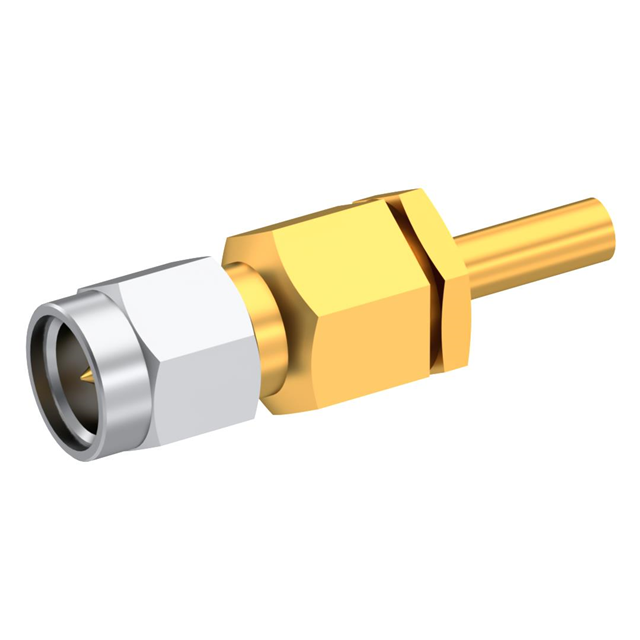

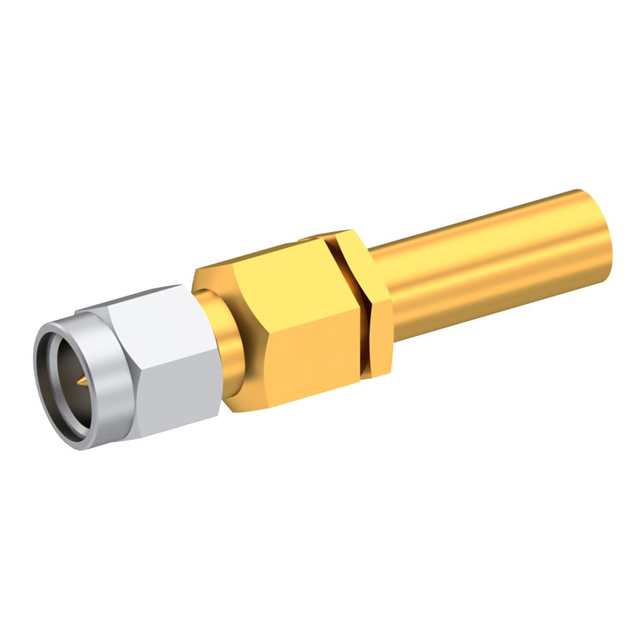

SMA / STRAIGHT PLUG MALE CRIMP T
| Part | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Impedance | Connector Style | Fastening Type | Contact Termination | Shield Termination | Frequency - Max [Max] | Number of Ports | Cable Group | Mounting Type | Connector Type | Body Finish | Dielectric Material | Center Contact Plating | Body Material | Housing Color | Center Contact Material | Voltage Rating | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | -65 ░C | 165 °C | 50 Ohms | SMA | Threaded | Crimp | Crimp | 18 GHz | 1 | RG-178DS | Free Hanging (In-Line) | Plug Male Pin | ||||||||
 Radiall USA, Inc. | 500 | -65 ░C | 165 °C | 50 Ohms | SMA | Threaded | Crimp | Crimp | 18 GHz | 1 | RG-316 | Free Hanging (In-Line) | Plug Male Pin | Gold | Polytetrafluoroethylene (PTFE) | Gold | Stainless Steel | Gold | Beryllium Copper | ||
 Radiall USA, Inc. | 500 | -65 ░C | 165 °C | 50 Ohms | SMA | Threaded | Crimp | Crimp | 12.4 GHz | 1 | RG-178 | Free Hanging (In-Line) | Plug Male Pin | Gold | Polytetrafluoroethylene (PTFE) | Gold | Stainless Steel | Gold | Beryllium Copper | 175 VDC | 196 |
Radiall USA, Inc. | 500 | -65 ░C | 165 °C | 50 Ohms | SMA | Threaded | Crimp | Crimp | 18 GHz | 1 | RD-316 RG-316DS | Free Hanging (In-Line) | Plug Male Pin | Gold | Polytetrafluoroethylene (PTFE) | Gold | Stainless Steel | Gold | Beryllium Copper |
