1553 Series

Catalog

HOOK-UP STRND 20AWG BRN 100'

Part	Operating Temperature [Max]	Operating Temperature [Min]	Qualification	Conductor Material	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Jacket Color	Wire Gauge	Length [x]	Length [x]	Length	Length
ALPHA WIRE 1553 BR005	80 °C	-40 C	MIL-W-76B Type MW	Copper Tinned	1 kV	0.069 "	1.75 mm	0.41 mm	0.016 in	Hook-Up	10	30 AWG	Poly-Vinyl Chloride (PVC)	Brown	20 AWG	100 ft	30.5 m
ALPHA WIRE 1553 BL001	80 °C	-40 C	MIL-W-76B Type MW	Copper Tinned	1 kV	0.069 "	1.75 mm	0.41 mm	0.016 in	Hook-Up	10	30 AWG	Poly-Vinyl Chloride (PVC)	Blue	20 AWG			304.8 m	1000 ft
ALPHA WIRE 1553 WO001	80 °C	-40 C	MIL-W-76B Type MW	Copper Tinned	1 kV	0.069 "	1.75 mm	0.41 mm	0.016 in	Hook-Up	10	30 AWG	Poly-Vinyl Chloride (PVC)	White Orange Stripe	20 AWG			304.8 m	1000 ft
ALPHA WIRE 1553 WH001	80 °C	-40 C	MIL-W-76B Type MW	Copper Tinned	1 kV	0.069 "	1.75 mm	0.41 mm	0.016 in	Hook-Up	10	30 AWG	Poly-Vinyl Chloride (PVC)	White	20 AWG			304.8 m	1000 ft
ALPHA WIRE 1553 RD005	80 °C	-40 C	MIL-W-76B Type MW	Copper Tinned	1 kV	0.069 "	1.75 mm	0.41 mm	0.016 in	Hook-Up	10	30 AWG	Poly-Vinyl Chloride (PVC)	Red	20 AWG	100 ft	30.5 m
ALPHA WIRE 1553 SL005	80 °C	-40 C	MIL-W-76B Type MW	Copper Tinned	1 kV	0.069 "	1.75 mm	0.41 mm	0.016 in	Hook-Up	10	30 AWG	Poly-Vinyl Chloride (PVC)	Slate	20 AWG	100 ft	30.5 m
ALPHA WIRE 1553 WG005	80 °C	-40 C	MIL-W-76B Type MW	Copper Tinned	1 kV	0.069 "	1.75 mm	0.41 mm	0.016 in	Hook-Up	10	30 AWG	Poly-Vinyl Chloride (PVC)		20 AWG	100 ft	30.5 m

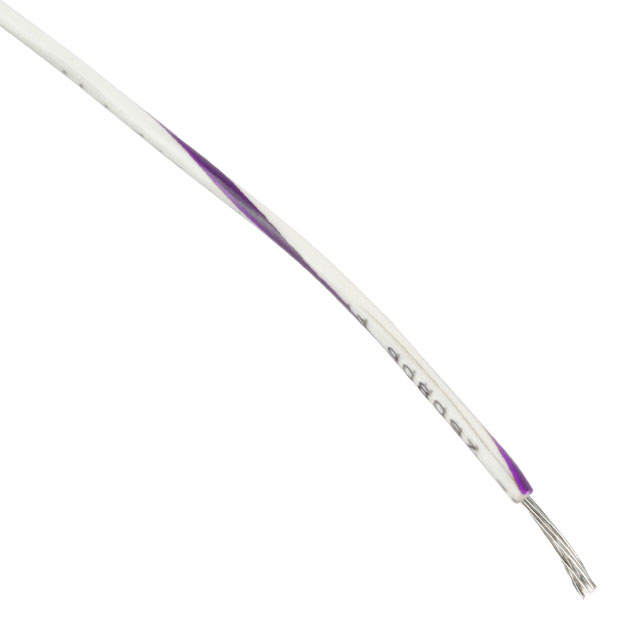

ALPHA WIRE 1553 WV001	80 °C	-40 C	MIL-W-76B Type MW	Copper Tinned	1 kV	0.069 "	1.75 mm	0.41 mm	0.016 in	Hook-Up	10	30 AWG	Poly-Vinyl Chloride (PVC)	White Violet Stripe	20 AWG			304.8 m	1000 ft
ALPHA WIRE 1553 GR005	80 °C	-40 C	MIL-W-76B Type MW	Copper Tinned	1 kV	0.069 "	1.75 mm	0.41 mm	0.016 in	Hook-Up	10	30 AWG	Poly-Vinyl Chloride (PVC)	Green	20 AWG	100 ft	30.5 m
ALPHA WIRE 1553 SL001	80 °C	-40 C	MIL-W-76B Type MW	Copper Tinned	1 kV	0.069 "	1.75 mm	0.41 mm	0.016 in	Hook-Up	10	30 AWG	Poly-Vinyl Chloride (PVC)	Slate	20 AWG			304.8 m	1000 ft
