M2023S2 Series

Catalog

SWITCH TOGGLE DPDT 0.4VA 28V

Part	Electrical Life	Actuator Material	Mounting Type	Current Rating (Amps)	Circuit	Actuator Length	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage Rating - AC	Illumination	Bushing Thread	Termination Style	Switch Function	Actuator Type	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Actuator Length [x]
NKK Switches M2023S2A1G30	50000 Cycles	Brass Chrome Plated	Right Angle Through Hole	0.4 VA	DPDT	6.86 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	28 V	Non-Illuminated	1/4-40	PC Pin	On-Off-On	Standard Round	6.5 mm	28 V
NKK Switches M2023S2A2W30	25000 Steps	Brass Chrome Plated	Right Angle Through Hole	3 A 6 A	DPDT	6.86 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	125 V	Non-Illuminated	Unthreaded	PC Pin	On-Off-On	Standard Round	6.5 mm	30 V
NKK Switches M2023S2A2G30	50000 Cycles	Brass Chrome Plated	Right Angle Through Hole	0.4 VA	DPDT	6.86 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	28 V	Non-Illuminated	Unthreaded	PC Pin	On-Off-On	Standard Round	6.5 mm	28 V
NKK Switches M2023S2S2W03	25000 Steps	Brass Chrome Plated	Through Hole	3 A 6 A	DPDT		85 °C	-30 ░C	Epoxy Sealed Terminals	125 V	Non-Illuminated	Unthreaded	PC Pin	On-Off-On	Standard Round	6.5 mm	30 V	5.08 mm

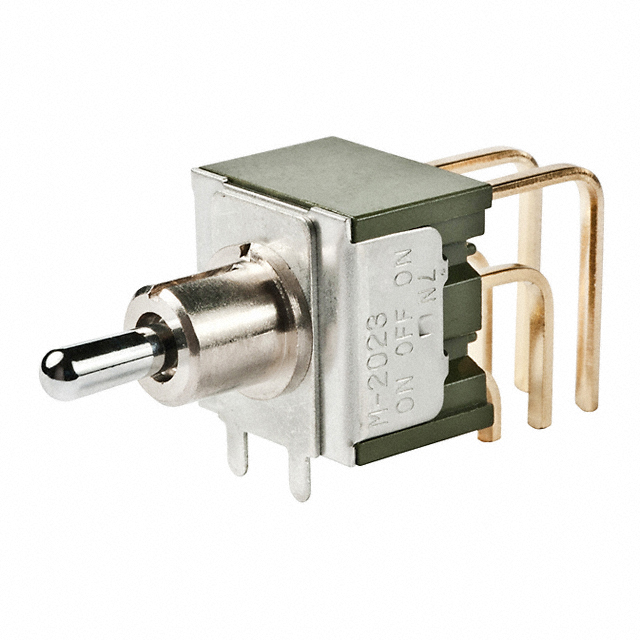

NKK Switches M2023S2A2G40	50000 Cycles	Brass Chrome Plated	Right Angle Through Hole Vertical	0.4 VA	DPDT	6.86 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	28 V	Non-Illuminated	Unthreaded	PC Pin	On-Off-On	Standard Round	6.5 mm	28 V
