YB16RK Series

Catalog

SWITCH PUSHBUTTON SPDT 3A 125V

Part	Electrical Life	Mechanical Life	Color - Actuator/Cap	Illumination Voltage (Nominal)	Actuator Marking	Panel Cutout Dimensions [diameter]	Termination Style	Voltage Rating - AC	Type	Voltage Rating - DC	Circuit	Mounting Type	Illumination Type, Color	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Features	Current Rating (Amps)
NKK Switches YB16RKW01-5F12-JB	100000 Cycles	200000 Cycles	Clear	12 VDC	No Marking	16 mm	Solder Quick Connect - 0.110" (2.8mm)	125 V	Illuminated Standard	30 V	SPDT	Panel Mount Front	Green LED	Button Rectangular	50 °C	-25 °C	On-On	Tactile Feedback	3 A
NKK Switches YB16RKW01-JB	100000 Cycles	200000 Cycles	Clear		No Marking	16 mm	Solder Quick Connect - 0.110" (2.8mm)	125 V	Standard	30 V	SPDT	Panel Mount Front		Button Rectangular	70 °C	-25 °C	On-On	Tactile Feedback	3 A
NKK Switches YB16RKG01-5C05-JC	100000 Cycles	200000 Cycles	Clear	5 VDC	No Marking	16 mm	Solder Quick Connect - 0.110" (2.8mm)	28 V	Illuminated Standard	28 V	SPDT	Panel Mount Front	LED Red	Button Rectangular	50 °C	-25 °C	On-On	Tactile Feedback	0.4 VA
NKK Switches YB16RKG01	100000 Cycles	200000 Cycles			No Marking	16 mm	Solder Quick Connect - 0.110" (2.8mm)	28 V	Standard	28 V	SPDT	Panel Mount Front		Plunger for Cap	70 °C	-25 °C	On-On	Tactile Feedback	0.4 VA
NKK Switches YB16RKW01-BB	100000 Cycles	200000 Cycles	White		No Marking	16 mm	Solder Quick Connect - 0.110" (2.8mm)	125 V	Standard	30 V	SPDT	Panel Mount Front		Button Rectangular	70 °C	-25 °C	On-On	Tactile Feedback	3 A

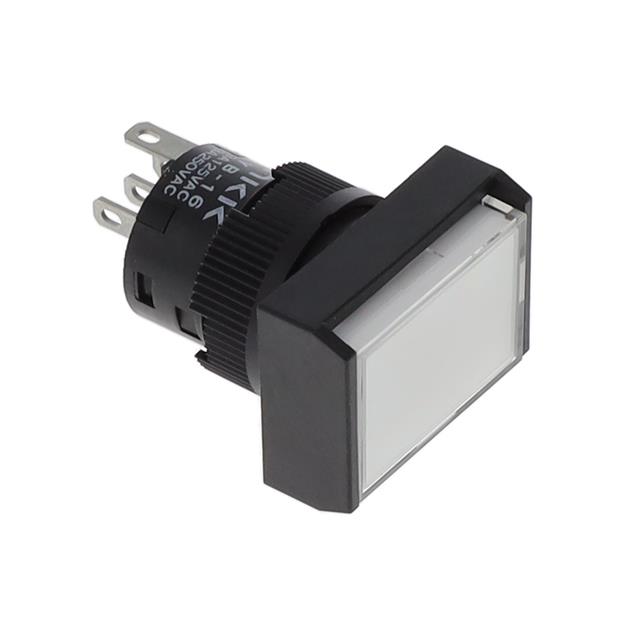

NKK Switches YB16RKW01-5C12-JB	100000 Cycles	200000 Cycles	Clear	12 VDC	No Marking	16 mm	Solder Quick Connect - 0.110" (2.8mm)	125 V	Illuminated Standard	30 V	SPDT	Panel Mount Front	LED Red	Button Rectangular	50 °C	-25 °C	On-On	Tactile Feedback	3 A
NKK Switches YB16RKW01-2CF24-JB	100000 Cycles	200000 Cycles	Clear	24 V	No Marking	16 mm	Solder Quick Connect - 0.110" (2.8mm)	125 V	Illuminated Standard	30 V	SPDT	Panel Mount Front	Green/Red LED	Button Rectangular	50 °C	-25 °C	On-On	Tactile Feedback	3 A
NKK Switches YB16RKW01-5C24-JC	100000 Cycles	200000 Cycles	Clear	24 V	No Marking	16 mm	Solder Quick Connect - 0.110" (2.8mm)	125 V	Illuminated Standard	30 V	SPDT	Panel Mount Front	LED Red	Button Rectangular	50 °C	-25 °C	On-On	Tactile Feedback	3 A
NKK Switches YB16RKW01-5D12-JB	100000 Cycles	200000 Cycles	Clear	12 VDC	No Marking	16 mm	Solder Quick Connect - 0.110" (2.8mm)	125 V	Illuminated Standard	30 V	SPDT	Panel Mount Front	Amber LED	Button Rectangular	50 °C	-25 °C	On-On	Tactile Feedback	3 A
NKK Switches YB16RKW01-5D-JD	100000 Cycles	200000 Cycles	Clear	2 VDC	No Marking	16 mm	Solder Quick Connect - 0.110" (2.8mm)	125 V	Illuminated Standard	30 V	SPDT	Panel Mount Front	Amber LED	Button Rectangular	50 °C	-25 °C	On-On	Tactile Feedback	3 A
