SIT5155 Series

Manufacturer: SiTime

Catalog

MEMS OSC TCXO 10.000000 MHZ LVCM

Part	Mounting Type	Output	Frequency	Supplier Device Package	Frequency Stability	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Supply	Type	Base Resonator	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Absolute Pull Range (APR)	Current - Supply (Disable) (Max) [Max]	Function
SiTime SIT5155AC-FK033JT-10.000000	Surface Mount	LVCMOS	10 MHz	10-CQFN (5x3.2)	500 ppb	-20 ░C	70 °C	10-SMD No Lead	3.3 V	DCTCXO	MEMS	1.06 mm	0.042 in	3.2 mm	0.126 in	5 mm	0.197 in	2.75 ppm
SiTime SIT5155AI-FK533IT-20.000000	Surface Mount	LVCMOS	20 MHz	10-CQFN (5x3.2)	500 ppb	-40 C	85 °C	10-SMD No Lead	3.3 V	DCTCXO	MEMS	1.06 mm	0.042 in	3.2 mm	0.126 in	5 mm	0.197 in	2.75 ppm	51 mA	Enable/Disable
SiTime SIT5155ACCFK033JT-10.000000	Surface Mount	Clipped Sine Wave	10 MHz	10-CQFN (5x3.2)	500 ppb	-20 ░C	70 °C	10-SMD No Lead	3.3 V	DCTCXO	MEMS	1.06 mm	0.042 in	3.2 mm	0.126 in	5 mm	0.197 in	2.75 ppm
SiTime SIT5155AICFK033JT-40.000000	Surface Mount	Clipped Sine Wave	40 MHz	10-CQFN (5x3.2)	500 ppb	-40 C	85 °C	10-SMD No Lead	3.3 V	DCTCXO	MEMS	1.06 mm	0.042 in	3.2 mm	0.126 in	5 mm	0.197 in	2.75 ppm
SiTime SIT5155AC-FK-33E0-40.000000	Surface Mount	LVCMOS	40 MHz	10-CQFN (5x3.2)	500 ppb	-20 ░C	70 °C	10-SMD No Lead	3.3 V	TCXO	MEMS	1.06 mm	0.042 in	3.2 mm	0.126 in	5 mm	0.197 in		51 mA	Enable/Disable

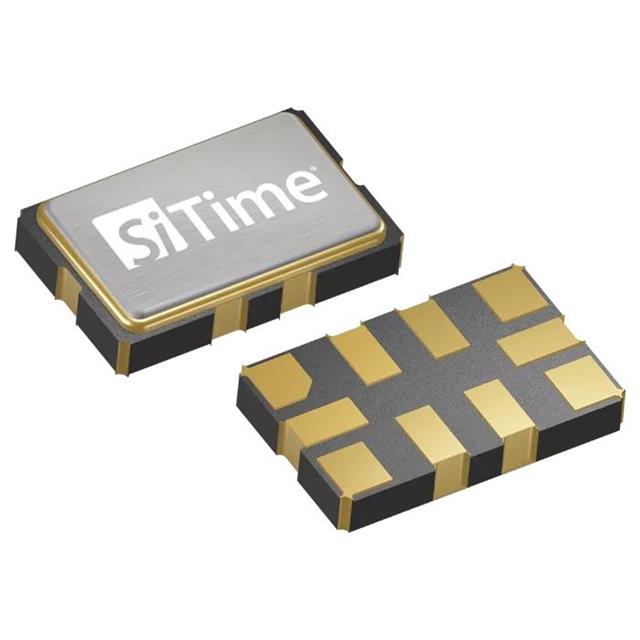

SiTime SIT5155AECFK028IT-16.368000	Surface Mount	Clipped Sine Wave	16.368 MHz	10-CQFN (5x3.2)	500 ppb	-40 C	105 ░C	10-SMD No Lead	2.8 V	DCTCXO	MEMS	1.06 mm	0.042 in	3.2 mm	0.126 in	5 mm	0.197 in	6.25 ppm	51 mA	Enable/Disable
