3134-2 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

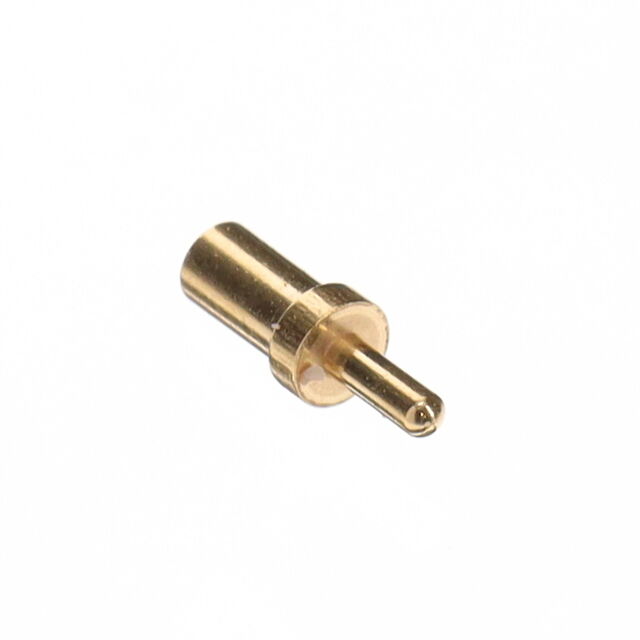

CONN PC PIN CIRC .025DIA GOLD

Part	Mounting Type	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Insulation	Contact Finish	Contact Material	Board Thickness	Board Thickness	Length - Below Flange [x]	Length - Below Flange [x]	Length - Above Flange [x]	Length - Above Flange [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Terminal Style	Terminal Type
Mill-Max Manufacturing Corp. 3134-2-00-34-00-00-08-0	Through Hole	0.64 mm	0.025 in	Non-Insulated	Gold	Brass Alloy	1.57 mm	0.062 "	2.08 mm	0.082 "	2.01 mm	0.079 in	1.57 mm	0.062 in	1.32 mm	0.052 in	Swage	0.182 in	4.62 mm	50 µin	1.27 µm	Single End	PC Pin
Mill-Max Manufacturing Corp. 3134-2-00-15-00-00-08-0	Through Hole	0.64 mm	0.025 in	Non-Insulated	Gold	Brass Alloy	1.57 mm	0.062 "	2.08 mm	0.082 "	2.01 mm	0.079 in	1.57 mm	0.062 in	1.32 mm	0.052 in	Swage	0.182 in	4.62 mm	10 Áin	0.25 Ám	Single End	PC Pin
Mill-Max Manufacturing Corp. 3134-2-00-80-00-00-08-0	Through Hole	0.64 mm	0.025 in	Non-Insulated	Tin	Brass Alloy	1.57 mm	0.062 "	2.08 mm	0.082 "	2.01 mm	0.079 in	1.57 mm	0.062 in	1.32 mm	0.052 in	Swage	0.182 in	4.62 mm	200 Áin	5.08 Ám	Single End	PC Pin
Mill-Max Manufacturing Corp. 3134-2-00-21-00-00-08-0	Through Hole	0.64 mm	0.025 in	Non-Insulated	Gold	Brass Alloy	1.57 mm	0.062 "	2.08 mm	0.082 "	2.01 mm	0.079 in	1.57 mm	0.062 in	1.32 mm	0.052 in	Swage	0.182 in	4.62 mm	20 µin	0.51 µm	Single End	PC Pin
Mill-Max Manufacturing Corp. 3134-2-00-01-00-00-08-0	Through Hole	0.64 mm	0.025 in	Non-Insulated	Tin-Lead	Brass Alloy	1.57 mm	0.062 "	2.08 mm	0.082 "	2.01 mm	0.079 in	1.57 mm	0.062 in	1.32 mm	0.052 in	Swage	0.182 in	4.62 mm	200 Áin	5.08 Ám	Single End	PC Pin
