CM1242-33 Series

ESD protection in 0201 outline

Catalog

ESD protection in 0201 outline

Part	Package / Case	Voltage - Clamping (Max) @ Ipp	Voltage - Reverse Standoff (Typ)	Power Line Protection	Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Peak Pulse (10/1000µs)	Voltage - Breakdown (Min) [Min]	Bidirectional Channels [custom]	Supplier Device Package

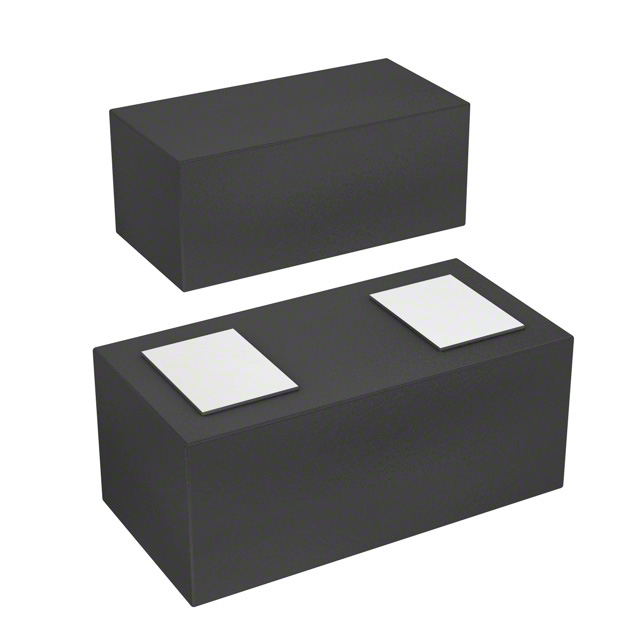

ON Semiconductor CM1242-33CP	2-XFBGA WLCSP	8.6 V	5 V		Zener	General Purpose	85 °C	-40 °C	Surface Mount	1 A	6 V	1	2-WLCSP (0.6x0.3)

Catalog

ESD protection in 0201 outline

Key Features

• ESD Protection in 0201 outline

Description

The CM1242-33CP is a 2-bump ESD protection device in 0201 CSP form factor. It is fully compliant with IEC 61000-4-2. The CM1242-33CP is also RoHS II compliant and has a pure tin finish.
