GB10S07 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K

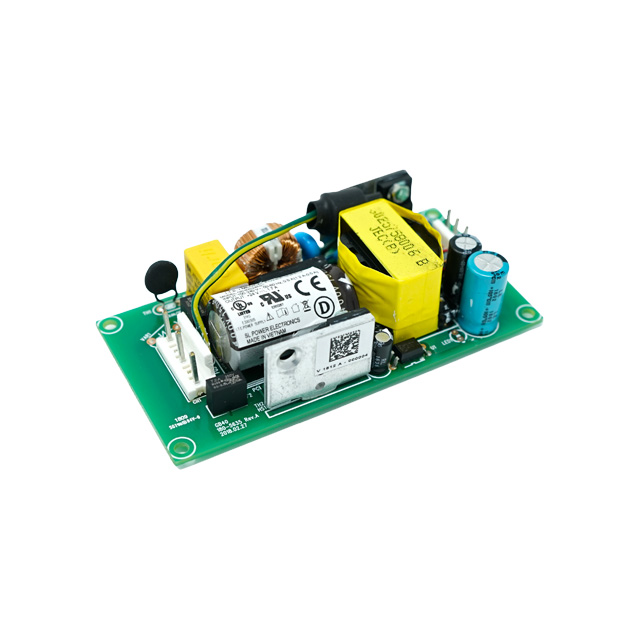

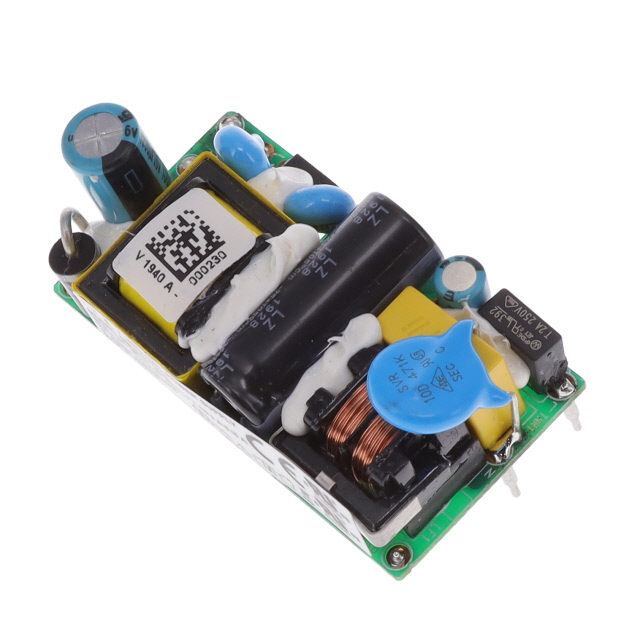

AC/DC CONVERTER 7.5V 9.8W
| Part | Minimum Load Required | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Output 1 | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Approval Agency | Type | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output 1 | Voltage - Isolation | Applications | Efficiency | Features | Mounting Type | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 85.9 mm | 1.6 in | 25.4 mm | 3.38 in | 40.6 mm | 1 in | 7.5 V | 1 | 70 °C | -25 °C | 9.8 W | CE cURus UL | Open Frame | 100 VAC | 240 VAC | 1.3 A | 4000 V | ITE (Commercial) Medical | 88 % | Universal Input | Chassis Mount | ||
 SL POWER / Advanced Energy | 52 mm | 1.07 in | 18 mm | 2.05 in | 27.3 mm | 0.71 in | 7.5 V | 1 | 70 °C | -25 °C | 9.8 W | CE cURus DEMKO | Open Frame | 90 VAC | 264 VAC | 1.3 A | 4000 V | ITE (Commercial) Medical | 88 % | Universal Input | Chassis Mount | 60601-1; 62368-1 |
