9892 Series
Manufacturer: Belden Inc.
Beta
⌘K

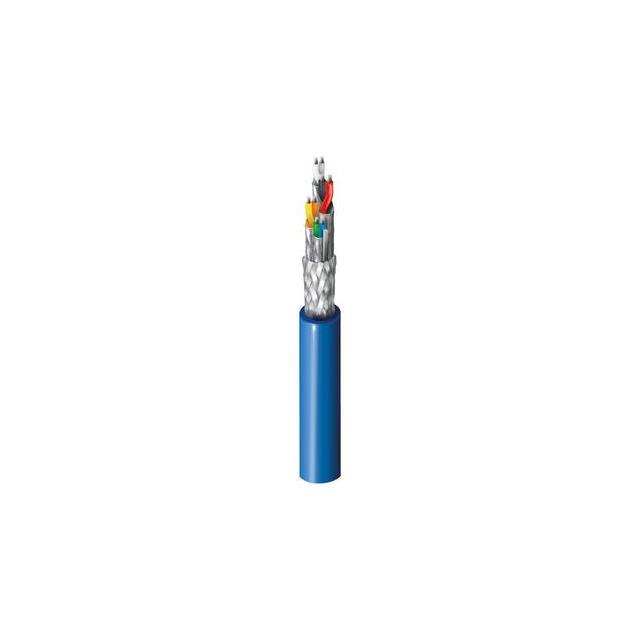

MULTI-PAIR 8COND 20AWG BLU
| Part | Shield Coverage | Shield Material | Ratings | Shield Type | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Conductor Material | Number of Conductors | Wire Gauge | Conductor Insulation | Jacket Color | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | UL Style 2919 | Foil | 80 °C | -40 C | Poly-Vinyl Chloride (PVC) | Copper Tinned | 8 | 20 AWG | Foam High Density Polyethylene (FHDPE) | Blue | 304.8 m | 1000 ft | 28 AWG | 7 | 0.035 in | 0.889 mm | Drain Wire | 0.398 in | 10.11 mm | Multi-Pair |
Belden Inc. | 100 % | Aluminum | UL Style 2919 | Foil | 80 °C | -40 C | Poly-Vinyl Chloride (PVC) | Copper Tinned | 8 | 20 AWG | Foam High Density Polyethylene (FHDPE) | Blue | 152.4 m | 500 ft | 28 AWG | 7 | 0.035 in | 0.889 mm | Drain Wire | 0.398 in | 10.11 mm | Multi-Pair |
