RT9198 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K
IC REG LIN 2.5V 300MA TSOT23-5
| Part | Protection Features | Voltage - Input (Max) [Max] | Current - Output | Supplier Device Package | Voltage Dropout (Max) | Current - Quiescent (Iq) | Voltage - Output (Min/Fixed) | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Regulators | Package / Case | Output Configuration | PSRR [Min] | PSRR [Max] | Voltage - Output (Min/Fixed) [Min] | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Richtek USA Inc. | Over Current Over Temperature | 5.5 V | 300 mA | TSOT-23-5 | 0.33 V | 130 µA | 2.5 V | 125 °C | -40 C | Surface Mount | 1 | SOT-23-5 Thin TSOT-23-5 | Positive | 30 dB | 60 dB | ||

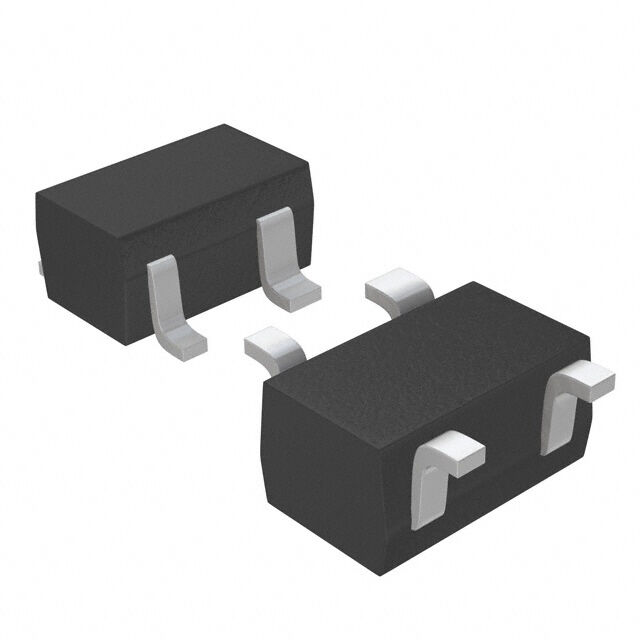

 Richtek USA Inc. | Over Current Over Temperature | 5.5 V | 300 mA | SC-82 | 0.33 V | 130 µA | 1.8 V | 125 °C | -40 C | Surface Mount | 1 | SC-82 | Positive | 30 dB | 60 dB | ||
Richtek USA Inc. | Over Current Over Temperature | 5.5 V | 300 mA | SC-70-5R | 0.33 V | 130 µA | 1.5 V | 125 °C | -40 C | Surface Mount | 1 | 5-TSSOP SC-70-5 SOT-353 | Positive | 30 dB | 60 dB | ||
Richtek USA Inc. | Over Current Over Temperature | 5.5 V | 300 mA | SC-82 | 0.33 V | 130 µA | 125 °C | -40 C | Surface Mount | 1 | SC-82 | Positive | 30 dB | 60 dB | 1.85 V | ||
 Richtek USA Inc. | Over Current Over Temperature | 5.5 V | 300 mA | 6-WDFN (2x2) | 0.33 V | 130 µA | 3 V | 125 °C | -40 C | Surface Mount | 1 | Positive | 30 dB | 60 dB | |||
Richtek USA Inc. | Over Current Over Temperature | 5.5 V | 300 mA | SOT-23-5R | 0.33 V | 130 µA | 2.5 V | 125 °C | -40 C | Surface Mount | 1 | SC-74A SOT-753 | Positive | 30 dB | 60 dB | ||
Richtek USA Inc. | Over Current Over Temperature | 5.5 V | 300 mA | SC-70-5R | 0.33 V | 130 µA | 2.7 V | 125 °C | -40 C | Surface Mount | 1 | 5-TSSOP SC-70-5 SOT-353 | Positive | 30 dB | 60 dB | ||
 Richtek USA Inc. | Over Current Over Temperature | 5.5 V | 300 mA | SC-70-5 | 0.33 V | 130 µA | 3 V | 125 °C | -40 C | Surface Mount | 1 | 5-TSSOP SC-70-5 SOT-353 | Positive | 30 dB | 60 dB | ||
Richtek USA Inc. | Over Current Over Temperature | 5.5 V | 300 mA | SOT-23-5R | 0.33 V | 130 µA | 1.8 V | 125 °C | -40 C | Surface Mount | 1 | SC-74A SOT-753 | Positive | 30 dB | 60 dB | ||
 Richtek USA Inc. | Over Current Over Temperature | 5.5 V | 300 mA | SOT-23-3 | 0.33 V | 130 µA | 3 V | 125 °C | -40 C | Surface Mount | 1 | SC-59 SOT-23-3 TO-236-3 | Positive | 30 dB | 60 dB | Enable |
