117-83 Series

Manufacturer: Preci-Dip

Catalog

CONN IC DIP SOCKET 40POS GOLD

Part	Material Flammability Rating	Contact Resistance	Current Rating (Amps)	Termination Post Length	Termination Post Length	Termination	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Material - Post [custom]	Contact Finish - Mating	Housing Material	Number of Positions or Pins (Grid)	Pitch - Mating	Pitch - Mating	Type [custom]	Type [custom]	Type	Contact Finish - Post	Mounting Type	Contact Material - Mating	Features	Pitch - Post	Pitch - Post	Operating Temperature [Min]	Operating Temperature [Max]	Type	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Type
Preci-Dip 117-83-640-41-105101	UL94 V-0	10 mOhm	1 A	0.125 in	3.18 mm	Solder	29.5 µin	0.75 µm	Brass	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	40	0.07 in	1.78 mm	15.24 mm	0.6 in	DIP	Tin	Through Hole	Beryllium Copper	Open Frame	0.07 in	1.78 mm	-55 C	125 °C

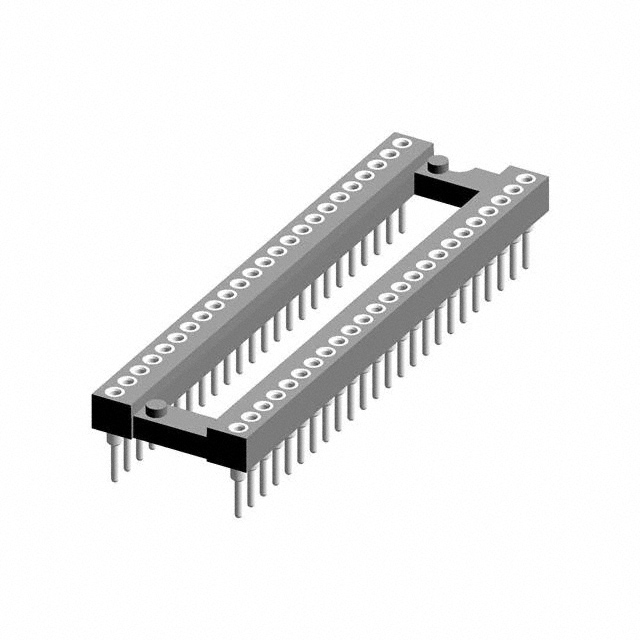

Preci-Dip 117-83-448-41-005101	UL94 V-0	10 mOhm	1 A	0.125 in	3.18 mm	Solder	29.5 µin	0.75 µm	Brass	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester		0.07 in	1.78 mm			DIP	Tin	Through Hole	Beryllium Copper	Open Frame	0.07 in	1.78 mm	-55 C	125 °C	0.4 in	2	48	24

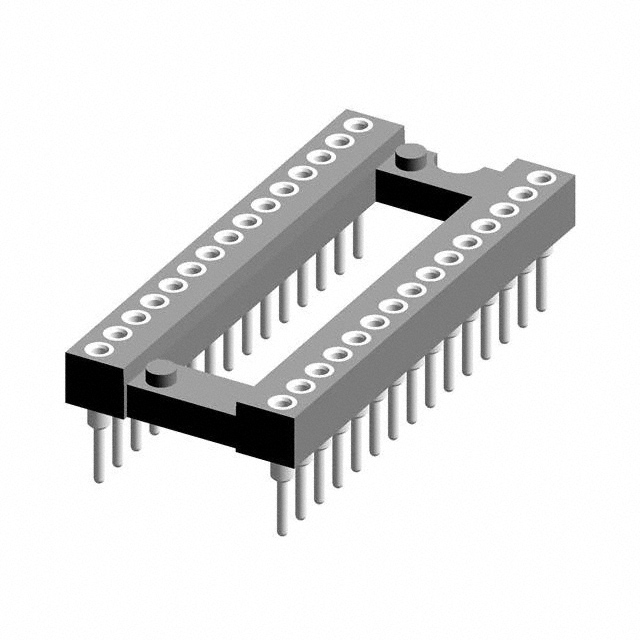

Preci-Dip 117-83-430-41-005101	UL94 V-0	10 mOhm	1 A	0.125 in	3.18 mm	Solder	29.5 µin	0.75 µm	Brass	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30	0.07 in	1.78 mm			DIP	Tin	Through Hole	Beryllium Copper	Open Frame	0.07 in	1.78 mm	-55 C	125 °C	0.4 in				15	2

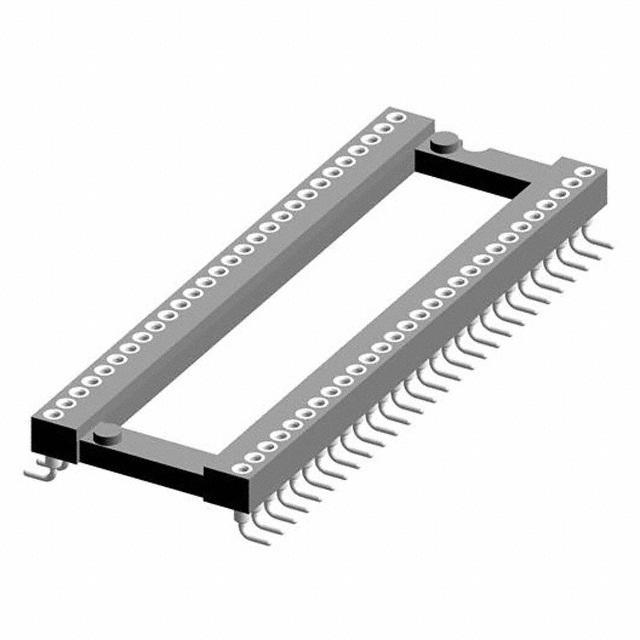

Preci-Dip 117-83-656-41-105101	UL94 V-0	10 mOhm	1 A	0.125 in	3.18 mm	Solder	29.5 µin	0.75 µm	Brass	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	56	0.07 in	1.78 mm	15.24 mm	0.6 in	DIP	Tin	Through Hole	Beryllium Copper	Open Frame	0.07 in	1.78 mm	-55 C	125 °C

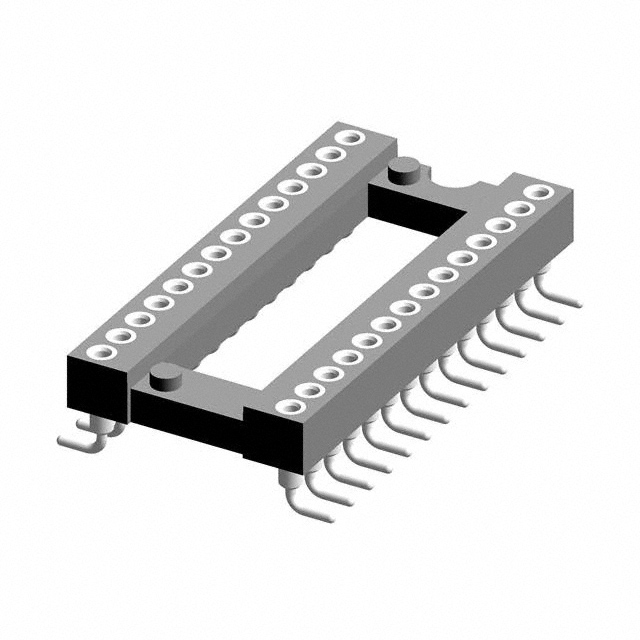

Preci-Dip 117-83-428-41-105101	UL94 V-0	10 mOhm	1 A	0.125 in	3.18 mm	Solder	29.5 µin	0.75 µm	Brass	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	28	0.07 in	1.78 mm			DIP	Tin	Through Hole	Beryllium Copper	Open Frame	0.07 in	1.78 mm	-55 C	125 °C	0.4 in

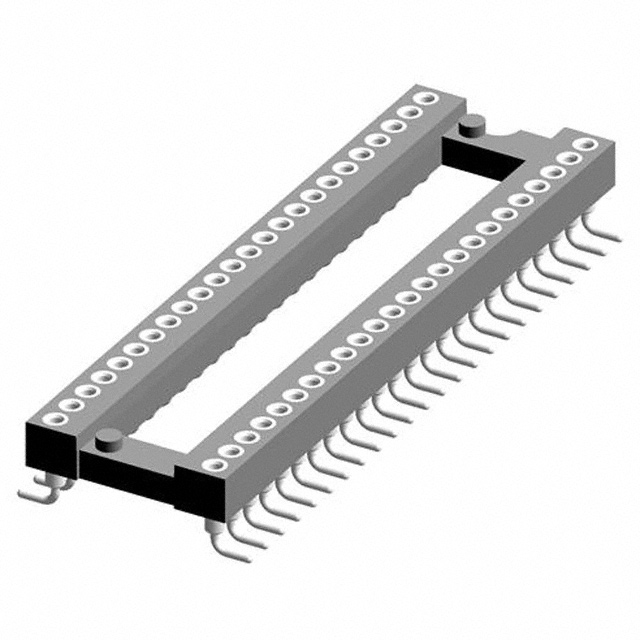

Preci-Dip 117-83-448-41-105101	UL94 V-0	10 mOhm	1 A	0.125 in	3.18 mm	Solder	29.5 µin	0.75 µm	Brass	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester		0.07 in	1.78 mm			DIP	Tin	Through Hole	Beryllium Copper	Open Frame	0.07 in	1.78 mm	-55 C	125 °C	0.4 in	2	48	24

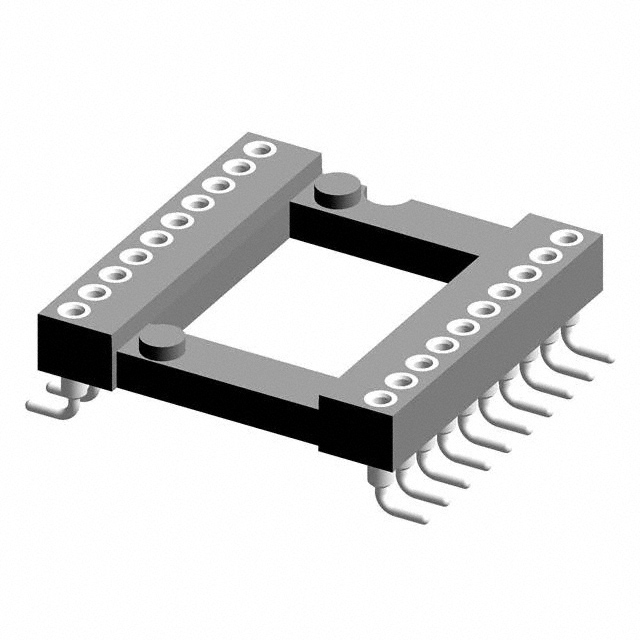

Preci-Dip 117-83-620-41-105101	UL94 V-0	10 mOhm	1 A	0.125 in	3.18 mm	Solder	29.5 µin	0.75 µm	Brass	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	20	0.07 in	1.78 mm	15.24 mm	0.6 in	DIP	Tin	Through Hole	Beryllium Copper	Open Frame	0.07 in	1.78 mm	-55 C	125 °C

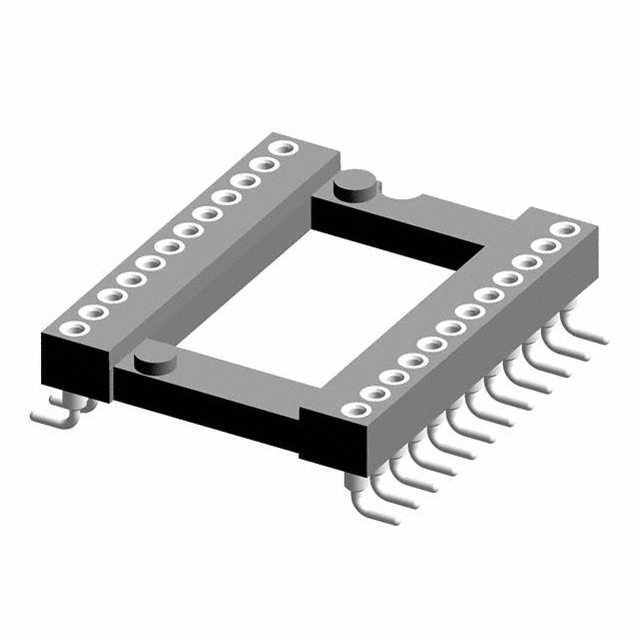

Preci-Dip 117-83-624-41-105101	UL94 V-0	10 mOhm	1 A	0.125 in	3.18 mm	Solder	29.5 µin	0.75 µm	Brass	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	24	0.07 in	1.78 mm	15.24 mm	0.6 in	DIP	Tin	Through Hole	Beryllium Copper	Open Frame	0.07 in	1.78 mm	-55 C	125 °C		2		12

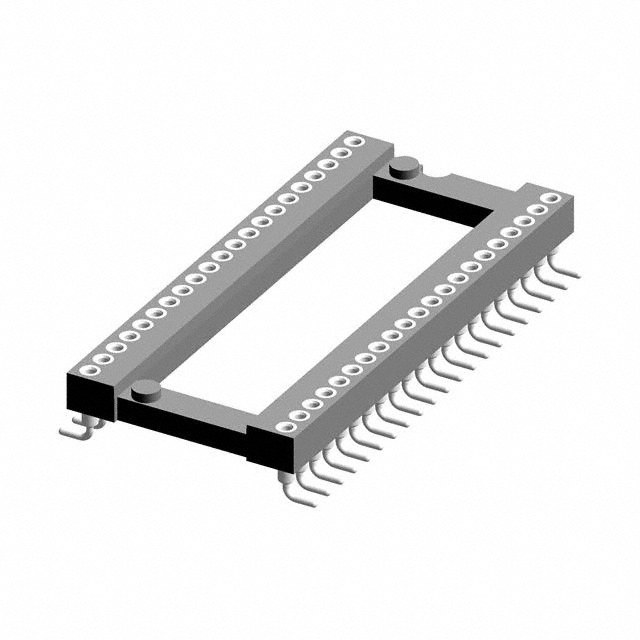

Preci-Dip 117-83-642-41-105101	UL94 V-0	10 mOhm	1 A	0.125 in	3.18 mm	Solder	29.5 µin	0.75 µm	Brass	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	42	0.07 in	1.78 mm	15.24 mm	0.6 in	DIP	Tin	Through Hole	Beryllium Copper	Open Frame	0.07 in	1.78 mm	-55 C	125 °C
Preci-Dip 117-83-316-41-105101	UL94 V-0	10 mOhm	1 A	0.125 in	3.18 mm	Solder	29.5 µin	0.75 µm	Brass	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	16	0.07 in	1.78 mm			DIP	Tin	Through Hole	Beryllium Copper	Open Frame	0.07 in	1.78 mm	-55 C	125 °C	0.3 in				8	2	7.62 mm
