1617R Series
Manufacturer: Belden Inc.
Beta
⌘K

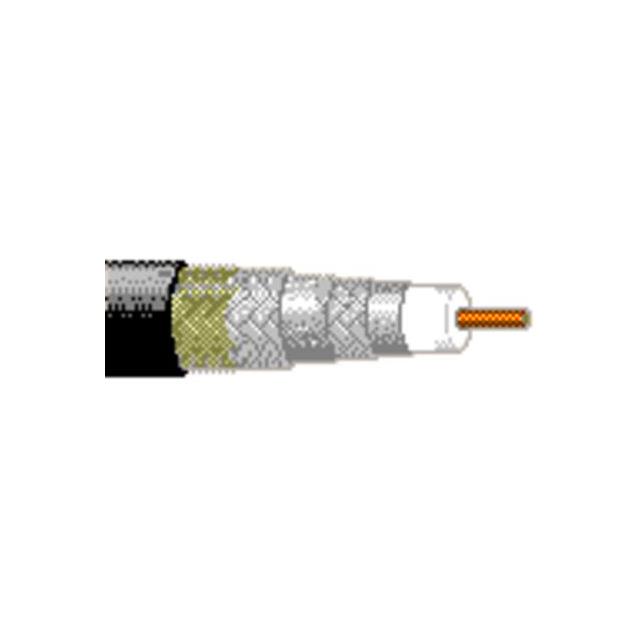

CBL COAX RISER RG-11 14AWG 1000'
| Part | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Conductor Material | Dielectric Material | Shield Material | Shield Coverage | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Length [x] | Length [x] | Jacket (Insulation) Material | Conductor Strand | Impedance | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Wire Gauge | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 83 | 0.28 in | 7.11 mm | Copper Coated Steel | Foam Polyethylene (FPE) | Aluminum | 40 % 60 % 100 % | 80 °C | -40 C | Braid Foil | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | Solid | 75 Ohms | Black | 10.34 mm | 0.407 in | Coaxial - Riser | 14.5 AWG | RG-11 |
