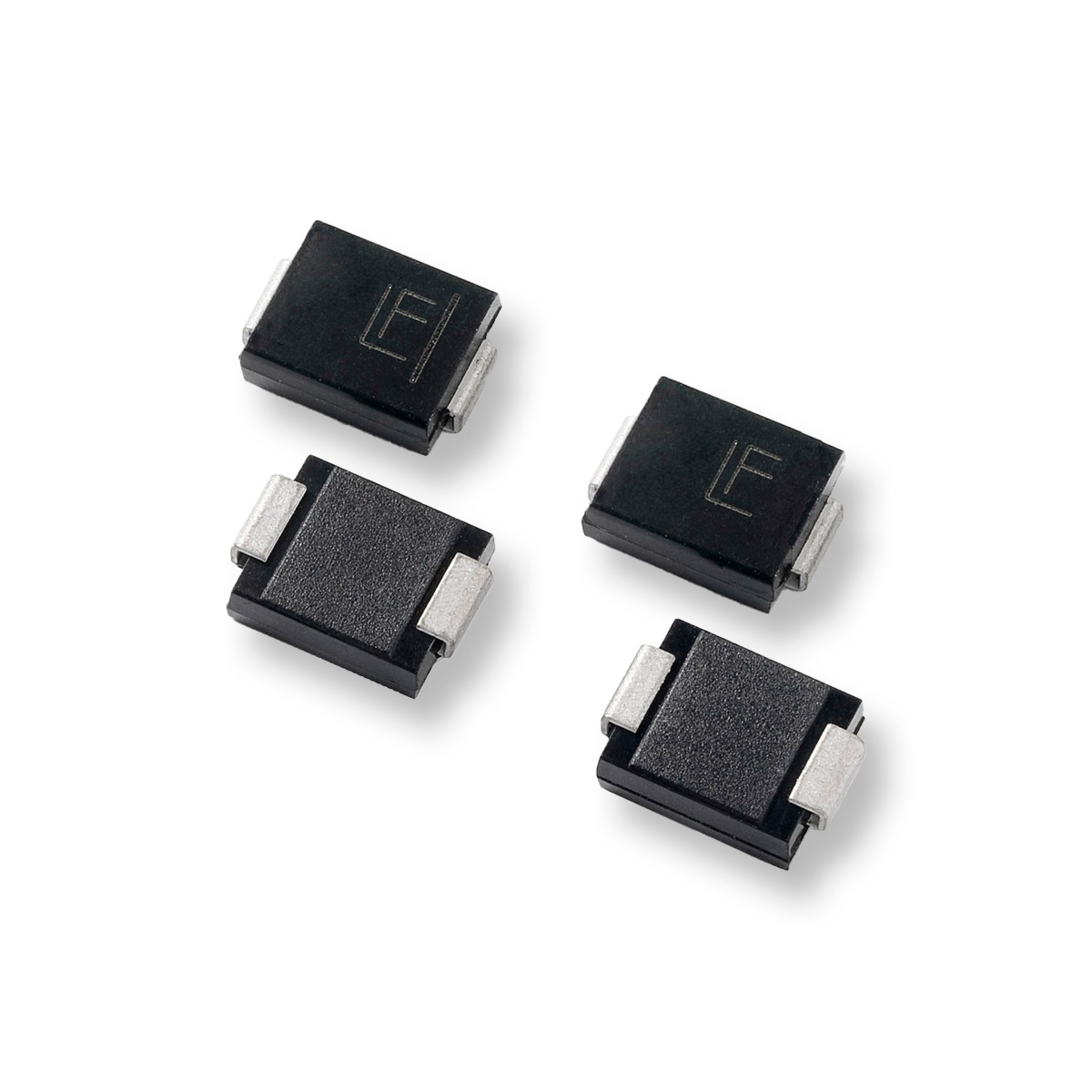

5.0SMDJ8.0CAS Series
TVS 4.5KW 51V 5%BI DO-214AB TR13 RoHS
Manufacturer: Littelfuse/Commercial Vehicle Products
Catalog
TVS 4.5KW 51V 5%BI DO-214AB TR13 RoHS
...
| Part | Type | Power - Peak Pulse | Power - Peak Pulse | Applications | Voltage - Clamping (Max) @ Ipp [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Mounting Type | Voltage - Reverse Standoff (Typ) | Power Line Protection | Package / Case | Current - Peak Pulse (10/1000µs) | Unidirectional Channels [custom] | Voltage - Breakdown (Min) [Min] | Bidirectional Channels [custom] | Voltage - Clamping (Max) @ Ipp |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | Zener | 5000 W | 5 kW | Telecom | 26 V | 150 °C | -65 °C | DO-214AB (SMCJ) | Surface Mount | 16 V | DO-214AB SMC | 192.3 A | 1 | ||||
Littelfuse/Commercial Vehicle Products | Zener | 5000 W | 5 kW | Telecom | 38.9 V | 150 °C | -65 °C | DO-214AB (SMCJ) | Surface Mount | 24 V | DO-214AB SMC | 129 A | 1 | 26.7 V | |||
 Littelfuse/Commercial Vehicle Products | Zener | 5000 W | 5 kW | Telecom | 146 V | 150 °C | -65 °C | DO-214AB (SMCJ) | Surface Mount | 90 V | DO-214AB SMC | 34.3 A | 100 V | 1 | |||
Littelfuse/Commercial Vehicle Products | Zener | 5000 W | 5 kW | Telecom | 38.9 V | 150 °C | -65 °C | DO-214AB (SMCJ) | Surface Mount | 24 V | DO-214AB SMC | 129 A | 26.7 V | 1 | |||
Littelfuse/Commercial Vehicle Products | Zener | 5000 W | 5 kW | Telecom | 150 °C | -65 °C | DO-214AB (SMCJ) | Surface Mount | 8.5 V | DO-214AB SMC | 347.2 A | 1 | 9.44 V | 14.4 V | |||
Littelfuse/Commercial Vehicle Products | Zener | 5000 W | 5 kW | Telecom | 150 °C | -65 °C | DO-214AB (SMCJ) | Surface Mount | 78 V | DO-214AB SMC | 39.7 A | 1 | 86.7 V | 126 V | |||
Littelfuse/Commercial Vehicle Products | Zener | 5000 W | 5 kW | Telecom | 177 V | 150 °C | -65 °C | DO-214AB (SMCJ) | Surface Mount | 110 V | DO-214AB SMC | 28.3 A | 1 | 122 V | |||
 Littelfuse/Commercial Vehicle Products | Zener | 5000 W | 5 kW | Telecom | 150 °C | -65 °C | DO-214AB (SMCJ) | Surface Mount | 51 V | DO-214AB SMC | 60.7 A | 1 | 82.4 V | ||||
Littelfuse/Commercial Vehicle Products | Zener | 5000 W | 5 kW | Telecom | 32.4 V | 150 °C | -65 °C | DO-214AB (SMCJ) | Surface Mount | 20 V | DO-214AB SMC | 154.3 A | 22.2 V | 1 | |||
Littelfuse/Commercial Vehicle Products | Zener | 5000 W | 5 kW | Telecom | 13.6 V | 150 °C | -65 °C | DO-214AB (SMCJ) | Surface Mount | 8 V | DO-214AB SMC | 1 | 8.89 V |
Key Features
• 5 kW peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01 %
• Recognized to UL 497B as an Isolated Loop Circuit Protector
• DO214AB SMT package for minimized board space
• Low profile package
• Typical failure mode is short from over-specified voltage or current
• Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
• ESD protection of data lines in accordance with IEC 61000-4-2, ESD 30 kV (Air), 30 kV (Contact)
• EFT protection of data lines in accordance with IEC 61000-4-4
• Built-in strain relief
• Glass passivated chip junction
Description
AI
The 5.0SMDJxxS series, single chip design is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
