BFB0724 Series

Catalog

FAN BLOWER 75.7X30MM 24VDC WIRE

Part	Material - Frame	Lifetime @ Temp.	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Noise	RPM	Static Pressure	Static Pressure	Bearing Type	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Termination	Weight	Weight	Approval Agency	Width [y]	Power (Watts)	Fan Type	Operating Temperature [Max]	Operating Temperature [Min]	Air Flow	Air Flow	Ingress Protection	Features

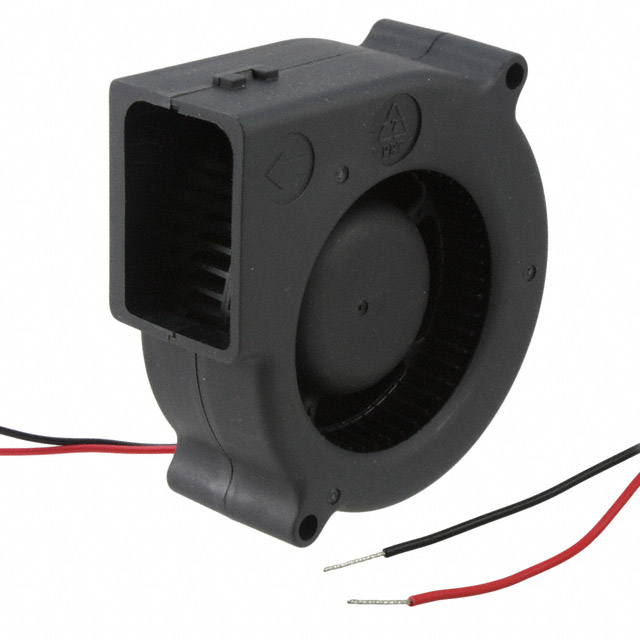

Delta Electronics BFB0724L	Plastic	40 °C 50000 Hrs	50 mA	27.6 VDC	14	Plastic	26 dB	1900 RPM	0.157 in H2O	39.1 Pa	Ball	Square/Rounded	75.7 mm	75.7 mm	24 VDC	2 Wire Leads	95.71 g	0.211 lb	CE CSA UL VDE	30 mm	1.2 W	Blower	70 °C	-10 °C	7 CFM	0.196 mł/min
Delta Electronics BFB0724H	Plastic	40 °C 50000 Hrs	120 mA	27.6 VDC	14	Plastic	38 dB(A)	2900 RPM	0.48 in H2O	119.6 Pa	Ball	Square/Rounded	75.7 mm	75.7 mm	24 VDC	2 Wire Leads	95.71 g	0.211 lb	CE CSA UL VDE	30 mm	2.88 W	Blower	70 °C	-10 °C	11.3 CFM	0.316 m³/min

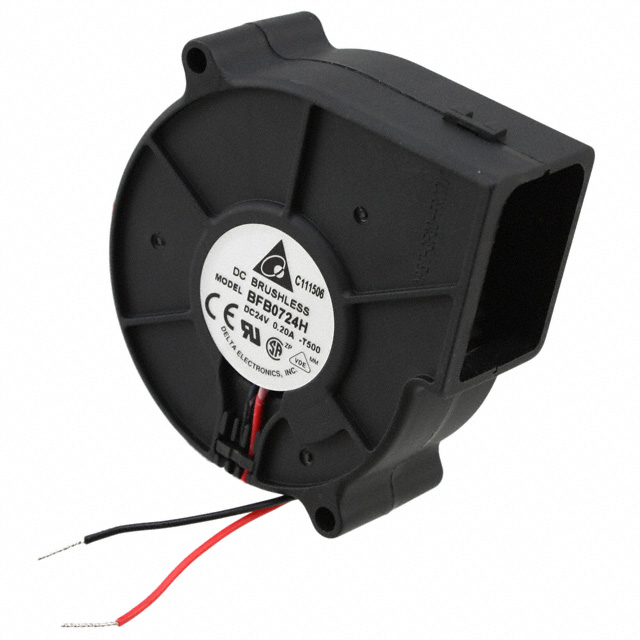

Delta Electronics BFB0724H-T500	Plastic	40 °C 50000 Hrs	120 mA	27.6 VDC	14	Plastic	38 dB(A)	2900 RPM	0.48 in H2O	119.6 Pa	Ball	Square/Rounded	75.7 mm	75.7 mm	24 VDC	2 Wire Leads	95.71 g	0.211 lb	CE CSA UL VDE	30 mm	2.88 W	Blower	70 °C	-10 °C	11.3 CFM	0.316 m³/min	IP55 - Dust Protected Water Resistant

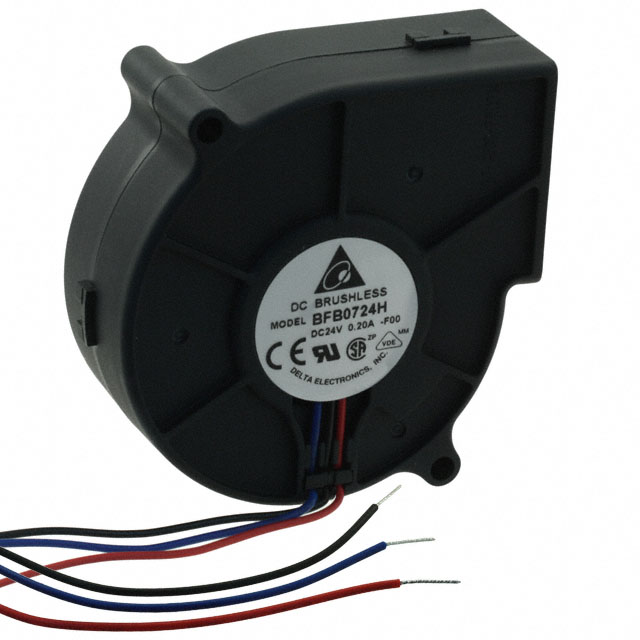

Delta Electronics BFB0724H-F00	Plastic	40 °C 50000 Hrs	120 mA	27.6 VDC	14	Plastic	38 dB(A)	2900 RPM	0.48 in H2O	119.6 Pa	Ball	Square/Rounded	75.7 mm	75.7 mm	24 VDC	3 Wire Leads	95.71 g	0.211 lb	CE CSA UL VDE	30 mm	2.88 W	Blower	70 °C	-10 °C	11.3 CFM	0.316 m³/min		Locked Rotor Protection Speed Sensor (Tach)
