1241.160 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
SWITCH TACTILE N.O. SPST ROUND BUTTON J-LEAD 0.05A 30VAC 42VDC 0.12VA >1000000CYCLES 1.8N SMD BOX
| Part | Mechanical Life | Switch Travel | Actuator Material | Actuator Type | Termination Style | Actuator Height off PCB, Vertical [z] | Outline [y] | Outline [x] | Actuator Orientation | Ingress Protection | Illumination | Operating Force | Switch Function | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Features | Contact Rating @ Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

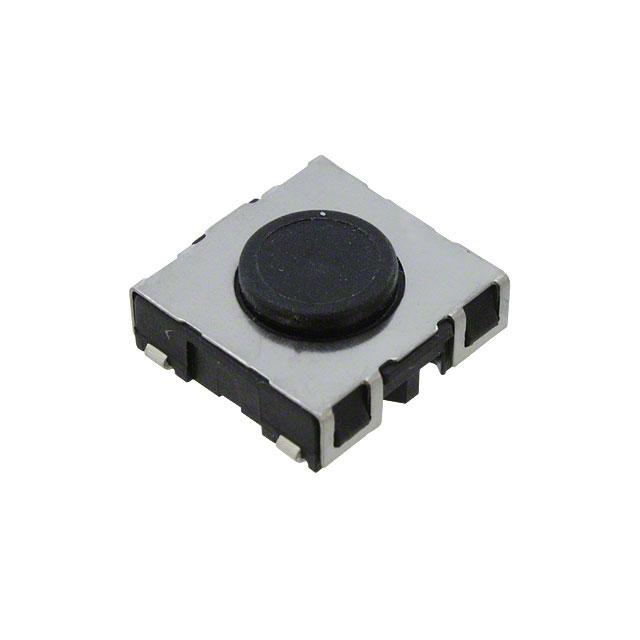

 SCHURTER Inc. | 1000000 Cycles | 0.35 mm | Polyphenylene Sulfide (PPS) | Standard | J Lead | 4.7 mm | 11.4 mm | 11.4 mm | Top Actuated | IP40 | Non-Illuminated | 180 gf | Off-Mom | SPST-NO | 85 °C | -40 C | Surface Mount | Tactile Feedback | 0.05 A 42 VDC |
 SCHURTER Inc. | 1000000 Cycles | 0.35 mm | Polyphenylene Sulfide (PPS) | Standard | J Lead | 4.95 mm | 11.4 mm | 11.4 mm | Top Actuated | IP67 - Dust Tight Waterproof | Non-Illuminated | 220 gf | Off-Mom | SPST-NO | 85 °C | -40 C | Surface Mount | Tactile Feedback | 0.05 A 42 VDC |

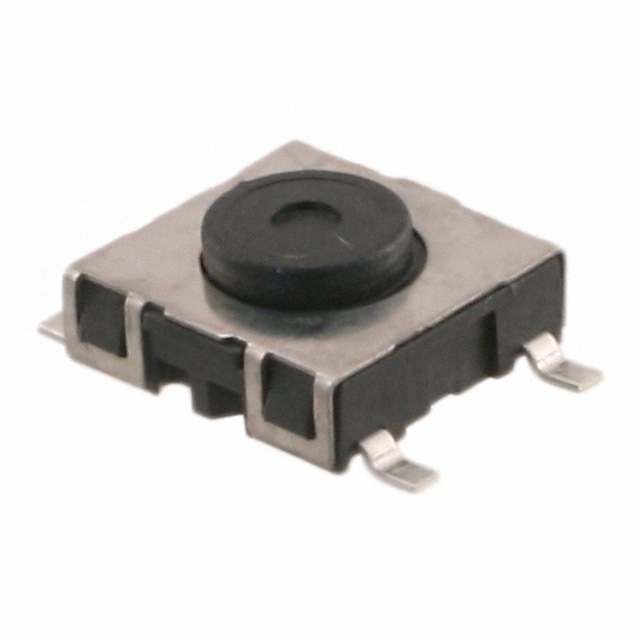

 SCHURTER Inc. | 1000000 Cycles | 0.35 mm | Polyphenylene Sulfide (PPS) | Standard | Gull Wing | 4.95 mm | 11.4 mm | 11.4 mm | Top Actuated | IP67 - Dust Tight Waterproof | Non-Illuminated | 220 gf | Off-Mom | SPST-NO | 85 °C | -40 C | Surface Mount | Tactile Feedback | 0.05 A 42 VDC |
