90HBW04 Series

Catalog

SWITCH DIP ON OFF SPST 4 RECESSED SLIDE 0.1A 30VDC GULL WING 2000CYCLES 2.54MM SMD T/R

Part	Electrical Life	Length	Length	Body Material	Mechanical Life	Number of Positions	Termination Style	Contact Finish	Circuit	Current Rating (Amps)	Actuator Type	Contact Material	Voltage Rating	Pitch	Pitch	Mounting Type	Actuator Level	Washable	Height Above Board [z]	Height Above Board [z]	Operating Temperature [Max]	Operating Temperature [Min]	Features
Grayhill Inc. 90HBW04RT	2000 Steps	11.94 mm	0.47 in	Thermoplastic	2000 Cycles	4	Gull Wing	Gold	SPST	25 mA	Slide (Standard)	Copper Alloy	24 VDC	2.54 mm	0.1 "	Surface Mount	Flush Recessed		0.19 in	4.83 mm	85 °C	-40 C

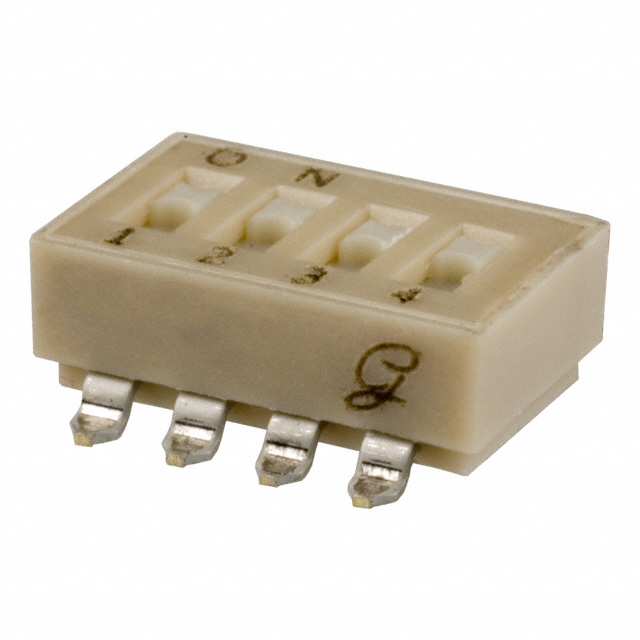

Grayhill Inc. 90HBW04PT	2000 Steps	11.94 mm	0.47 in	Thermoplastic	2000 Cycles	4	Gull Wing	Gold	SPST	25 mA	Slide (Standard)	Copper Alloy	24 VDC	2.54 mm	0.1 "	Surface Mount	Flush Recessed		0.19 in	4.83 mm	85 °C	-40 C	Tape Seal
