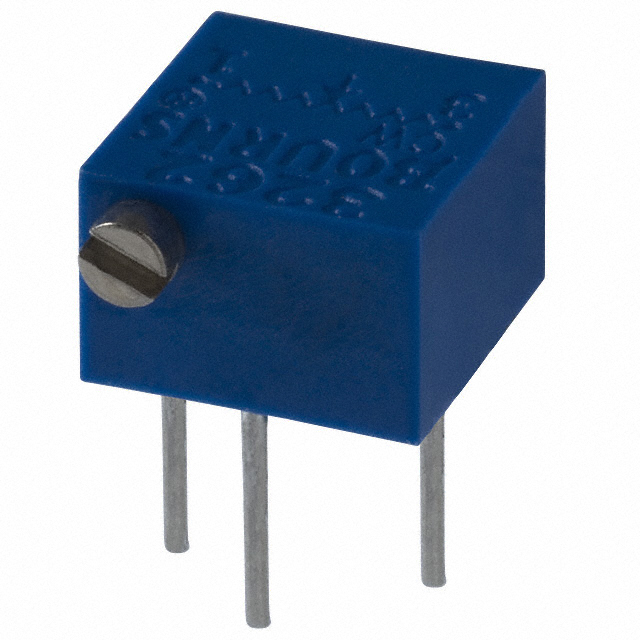

3262P Series

Catalog

TRIMMER 500K OHM 0.25W PC PIN

Part	Power (Watts)	Power (Watts)	Number of Turns	Adjustment Type	Tolerance	Resistive Material	Termination Style	Mounting Type	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Resistance
Bourns Inc. 3262P-1-504LF	0.25 W	0.25 W	12	Side Adjustment	10 %	Cermet	PC Pins	Through Hole	100 ppm/°C	6.35 mm	0.25 in	4.7 mm	0.185 in
Bourns Inc. 3262P-1-202	0.25 W	0.25 W	12	Side Adjustment	10 %	Cermet	PC Pins	Through Hole	100 ppm/°C	6.35 mm	0.25 in	4.7 mm	0.185 in	2 kOhms
Bourns Inc. 3262P-1-200	0.25 W	0.25 W	12	Side Adjustment	10 %	Cermet	PC Pins	Through Hole	100 ppm/°C	6.35 mm	0.25 in	4.7 mm	0.185 in	20 Ohms
Bourns Inc. 3262P-1-204LF	0.25 W	0.25 W	12	Side Adjustment	10 %	Cermet	PC Pins	Through Hole	100 ppm/°C	6.35 mm	0.25 in	4.7 mm	0.185 in	200000 Ohms
Bourns Inc. 3262P-1-105	0.25 W	0.25 W	12	Side Adjustment	10 %	Cermet	PC Pins	Through Hole	100 ppm/°C	6.35 mm	0.25 in	4.7 mm	0.185 in	1 MOhms
Bourns Inc. 3262P-1-105LF	0.25 W	0.25 W	12	Side Adjustment	10 %	Cermet	PC Pins	Through Hole	100 ppm/°C	6.35 mm	0.25 in	4.7 mm	0.185 in	1 MOhms
Bourns Inc. 3262P-1-253LF	0.25 W	0.25 W	12	Side Adjustment	10 %	Cermet	PC Pins	Through Hole	100 ppm/°C	6.35 mm	0.25 in	4.7 mm	0.185 in	25 kOhms
Bourns Inc. 3262P-1-100	0.25 W	0.25 W	12	Side Adjustment	10 %	Cermet	PC Pins	Through Hole	100 ppm/°C	6.35 mm	0.25 in	4.7 mm	0.185 in	10 Ohms
Bourns Inc. 3262P-1-200LF	0.25 W	0.25 W	12	Side Adjustment	10 %	Cermet	PC Pins	Through Hole	100 ppm/°C	6.35 mm	0.25 in	4.7 mm	0.185 in	20 Ohms
Bourns Inc. 3262P-1-101LF	0.25 W	0.25 W	12	Side Adjustment	10 %	Cermet	PC Pins	Through Hole	100 ppm/°C	6.35 mm	0.25 in	4.7 mm	0.185 in	100 Ohms
