W7500 Series

Manufacturer: WIZnet

Catalog

ETHERNET CTLR SINGLE CHIP 3.3V 64-PIN LQFP

Part	Speed	Core Size (Bit Width)	RAM Size Width	RAM Size Depth	Program Memory Type	Core Processor	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Oscillator Type	Operating Temperature (Min)	Operating Temperature (Max)	Program Memory Size	Program Memory Width	Program Memory Depth	A/D Channels	A/D Resolution (bits)	Number of I/O	Connectivity	Peripherals	EEPROM Size (Depth)	EEPROM Size (Width)	Package / Case	Mounting Type	Package Name	Package Width	Package Length	Core Configuration	Program Memory Depth (128KB)	Program Memory Size	Program Memory Width (128KB)	Standards	Current - Supply	Function	Protocol	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Interface
WIZnet W7500P-S2E	48 MHz	32 Bit	8 bit	16 K	FLASH	ARM® Cortex®-M0	2.7 V	5.5 V	External Internal	0 °C	70 °C	128 KB	32	32 K	9 count	12 bit	34	Ethernet I2C IP SSP TCP UART USART	DMA POR PWM WDT	6 K	8 bit	64-LQFP	Surface Mount	64-TQFP	7 mm	7 mm	Single-Core
WIZnet W7500P	48 MHz	32 Bit	8 bit	16 K	FLASH	ARM® Cortex®-M0	2.7 V	3.6 V	External Internal	0 °C	70 °C	128 KB	32	32 K	9 count	12 bit	34	Ethernet I2C IP SSP TCP UART USART	DMA POR PWM WDT			64-LQFP	Surface Mount	64-TQFP	7 mm	7 mm	Single-Core
WIZnet W7500-S2E	48 MHz	32 Bit	8 bit	16 K	FLASH	ARM® Cortex®-M0	2.7 V	5.5 V	Internal	0 °C	70 °C				8 count	12 bit	53	Ethernet I2C IP IrDA Microwire SPI SSI SSP TCP UART USART	DMA POR PWM WDT			64-LQFP	Surface Mount	64-TQFP	7 mm	7 mm	Single-Core	128 K	128KB	8

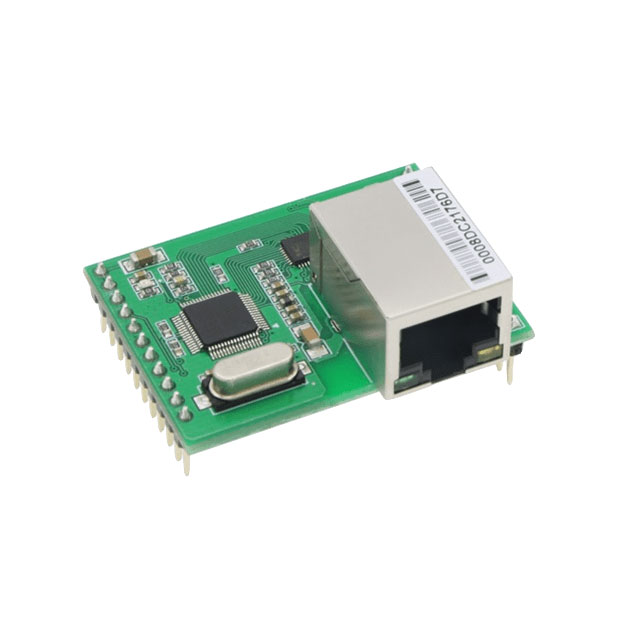

WIZnet W7500S2E-R1										-40 °C	85 °C											Module		Module							100BASE-T 100BASE-TX 10BASE-T 10BASE-TX	106 mA	Bridge RS232 to TCP/IP	Ethernet	3.6 V	2.97 V	Serial
