745-050 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 50POS 0.100

Part	Material - Insulation	Termination Rows	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Contact Finish	Number of Rows	Gender	Pitch	Pitch	Number of Positions/Bay/Row	Number of Positions	Read Out	Color	Mounting Type	Termination	Card Thickness [Max]	Card Thickness [Min]	Contact Type	Termination Rows [custom]	Number of Rows [custom]
EDAC Inc. 745-050-520-101	Polyester Thermoplastic	1	-40 C	105 ░C	Non Specified - Single Edge	30 Áin	0.76 Ám	Copper Alloy	Gold	1	Female	0.1 "	2.54 mm	50	50	Single	Black	Through Hole	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever
EDAC Inc. 745-050-540-106	Polyester Thermoplastic	1	-40 C	105 ░C	Non Specified - Single Edge	30 Áin	0.76 Ám	Copper Alloy	Gold	1	Female	0.1 "	2.54 mm	50	50	Single	Black	Through Hole	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever
EDAC Inc. 745-050-540-101	Polyester Thermoplastic	1	-40 C	105 ░C	Non Specified - Single Edge	30 Áin	0.76 Ám	Copper Alloy	Gold	1	Female	0.1 "	2.54 mm	50	50	Single	Black	Through Hole	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever
EDAC Inc. 745-050-522-101	Polyester Thermoplastic	1	-40 C	105 ░C	Non Specified - Single Edge	30 Áin	0.76 Ám	Copper Alloy	Gold	1	Female	0.1 "	2.54 mm	50	50	Single	Black	Through Hole	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever
EDAC Inc. 745-050-525-206	Polyester Thermoplastic		-40 C	105 ░C	Non Specified - Dual Edge	30 Áin	0.76 Ám	Copper Alloy	Gold		Female	0.1 "	2.54 mm	25	50	Dual	Black	Through Hole	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	2	2

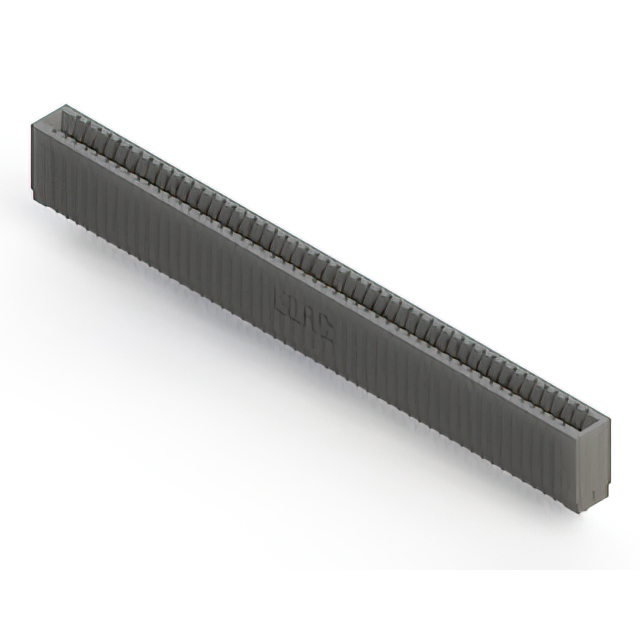

EDAC Inc. 745-050-525-101	Polyester Thermoplastic	1	-40 C	105 ░C	Non Specified - Single Edge	30 Áin	0.76 Ám	Copper Alloy	Gold	1	Female	0.1 "	2.54 mm	50	50	Single	Black	Through Hole	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever

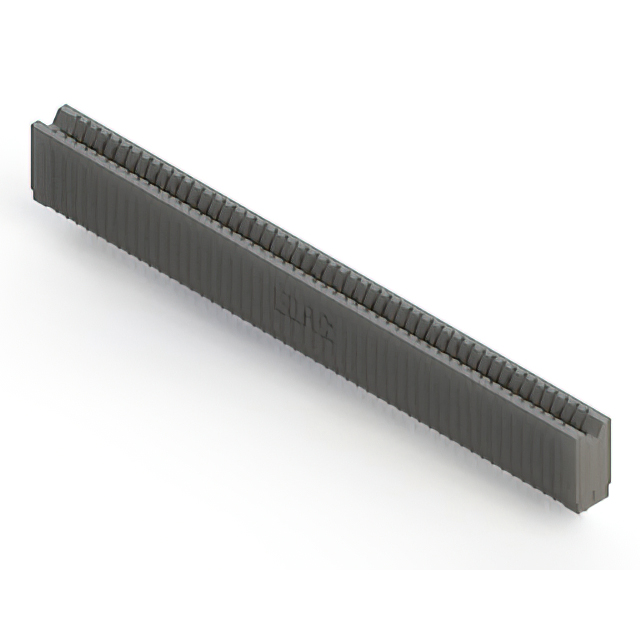

EDAC Inc. 745-050-525-106	Polyester Thermoplastic	1	-40 C	105 ░C	Non Specified - Single Edge	30 Áin	0.76 Ám	Copper Alloy	Gold	1	Female	0.1 "	2.54 mm	50	50	Single	Black	Through Hole	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever
EDAC Inc. 745-050-541-101	Polyester Thermoplastic	1	-40 C	105 ░C	Non Specified - Single Edge	30 Áin	0.76 Ám	Copper Alloy	Gold	1	Female	0.1 "	2.54 mm	50	50	Single	Black	Through Hole	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever
EDAC Inc. 745-050-520-106	Polyester Thermoplastic	1	-40 C	105 ░C	Non Specified - Single Edge	30 Áin	0.76 Ám	Copper Alloy	Gold	1	Female	0.1 "	2.54 mm	50	50	Single	Black	Through Hole	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever

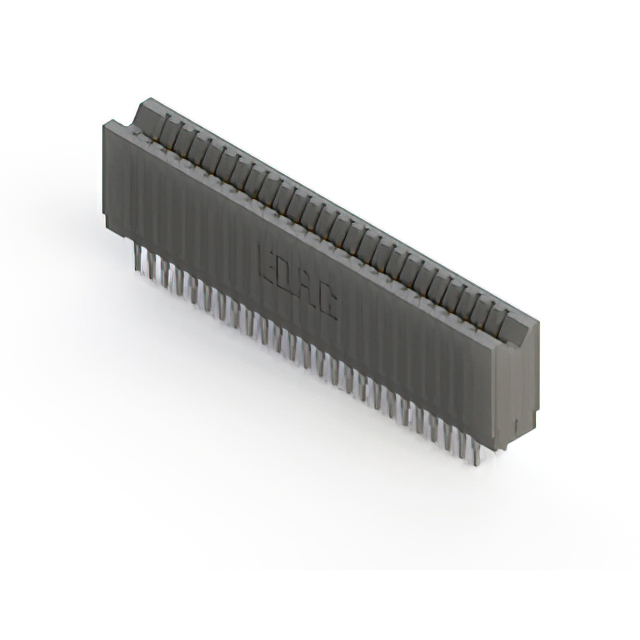

EDAC Inc. 745-050-545-206	Polyester Thermoplastic		-40 C	105 ░C	Non Specified - Dual Edge	30 Áin	0.76 Ám	Copper Alloy	Gold		Female	0.1 "	2.54 mm	25	50	Dual	Black	Through Hole	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	2	2
