470215CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

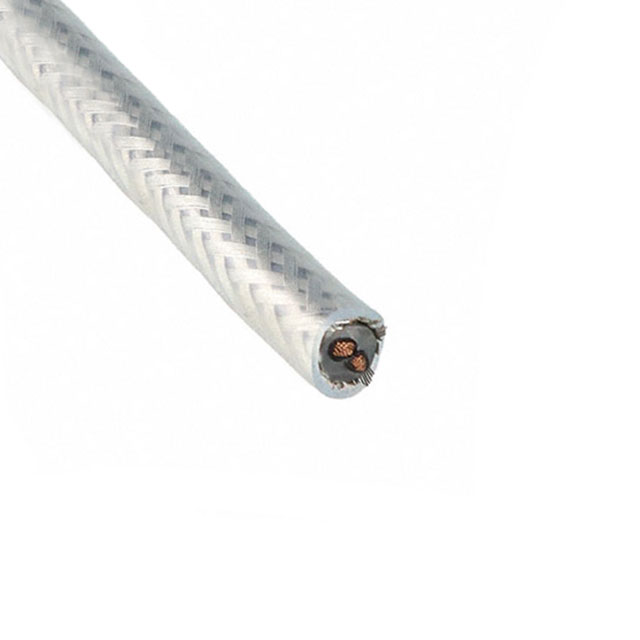

CABLE 2COND 15AWG CLEAR SHLD 20M
| Part | Wire Gauge | Jacket (Insulation) Material | Jacket Color | Shield Material | Cable Type | Length | Length | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Shield Coverage | Operating Temperature [Min] | Operating Temperature [Max] | Number of Conductors | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE | 15 AWG | Poly-Vinyl Chloride (PVC) | Clear | Copper Tinned | Multi-Conductor | 20 m | 65.62 ft | Braid | 28 | 0.0098 in | 300 V | 80 % | -40 °C | 80 C | 2 | Poly-Vinyl Chloride (PVC) | 0.348 in | 8.84 mm | 0.0354 in | 0.9 mm | Chemical Resistant Oil Resistant UV Resistant | Copper Bare |
 ALPHA WIRE | 15 AWG | Poly-Vinyl Chloride (PVC) | Clear | Copper Tinned | Multi-Conductor | 100 m | 328.1 ft | Braid | 28 | 0.0098 in | 300 V | 80 % | -40 °C | 80 C | 2 | Poly-Vinyl Chloride (PVC) | 0.348 in | 8.84 mm | 0.0354 in | 0.9 mm | Chemical Resistant Oil Resistant UV Resistant | Copper Bare |
