9613-9523 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

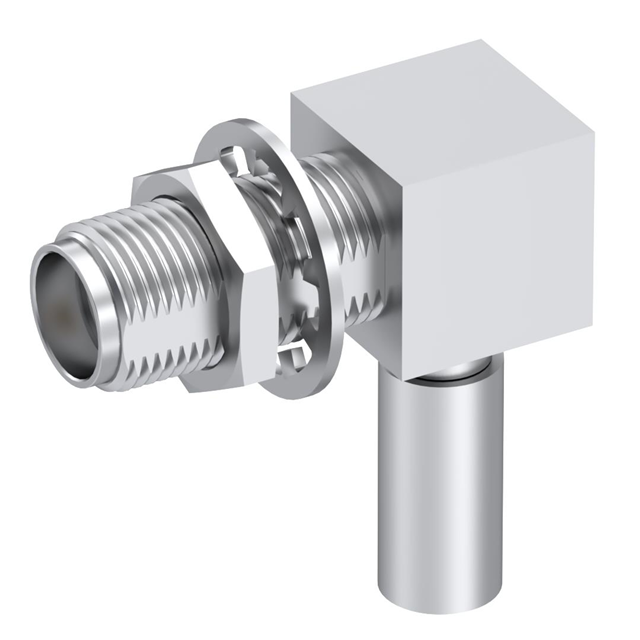

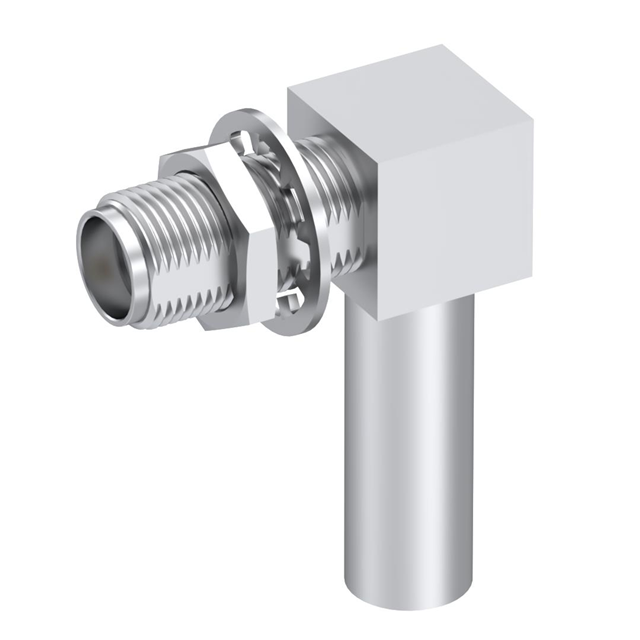

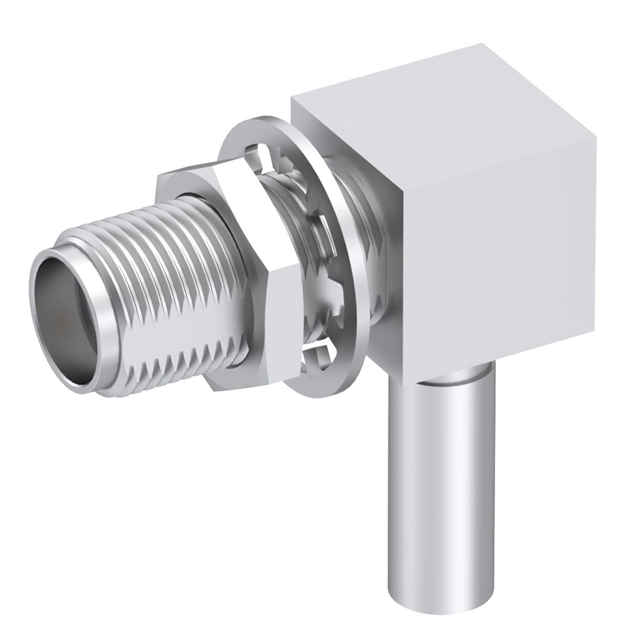

SMA / RIGHT ANGLE JACK FEMALE CR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Material | Dielectric Material | Voltage Rating | Center Contact Plating | Mounting Feature | Impedance | Contact Termination | Housing Color | Shield Termination | Connector Type | Connector Style | Number of Ports | Cable Group | Mounting Type | Center Contact Material | Fastening Type | Frequency - Max [Max] | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | 500 | Stainless Steel | Polytetrafluoroethylene (PTFE) | 250 V | Gold | Bulkhead - Front Side Nut | 50 Ohms | Crimp | Silver | Crimp | Female Socket Jack | SMA | 1 | 188 316 RG-174 | Panel Mount Right Angle | Beryllium Copper | Threaded | 12.4 GHz | |
 Radiall USA, Inc. | -65 ░C | 165 °C | 500 | Stainless Steel | Polytetrafluoroethylene (PTFE) | 250 V | Gold | Bulkhead - Front Side Nut | 50 Ohms | Crimp | Silver | Crimp | Female Socket Jack | SMA | 1 | RG-316 Double Braid | Panel Mount Right Angle | Beryllium Copper | Threaded | 12.4 GHz | |
 Radiall USA, Inc. | -65 ░C | 165 °C | 500 | Stainless Steel | Polytetrafluoroethylene (PTFE) | Gold | Bulkhead - Front Side Nut | 50 Ohms | Crimp | Silver | Crimp | Female Socket Jack | SMA | 1 | RG-178 | Panel Mount Right Angle | Beryllium Copper | Threaded | 12.4 GHz | 196 |
