OSTT702 Series

Catalog

TERM BLK 2P SIDE ENT 7.62MM PCB

Part	Screw Material - Plating	Torque - Screw	Torque - Screw	Housing Material	Screw Thread	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Plating	Clamp Material - Plating	Mounting Type	Wire Termination	Wire Gauge [Max]	Wire Gauge [Min]	Mating Orientation	Number of Levels	Voltage	Color	Positions Per Level	Current	Pitch	Pitch	Features
On Shore Technology Inc. OSTT7024350	Steel - Zinc Plated	0.49 Nm	4.3 Lb-In	Thermoplastic	M3	-30 ░C	105 ░C	Brass	Brass	Through Hole	Screw - Rising Cage Clamp	24 AWG	12 AWG	Horizontal with Board	1	300 VDC	Green	2	25 A	0.3 in	7.62 mm	Interlocking (Side)

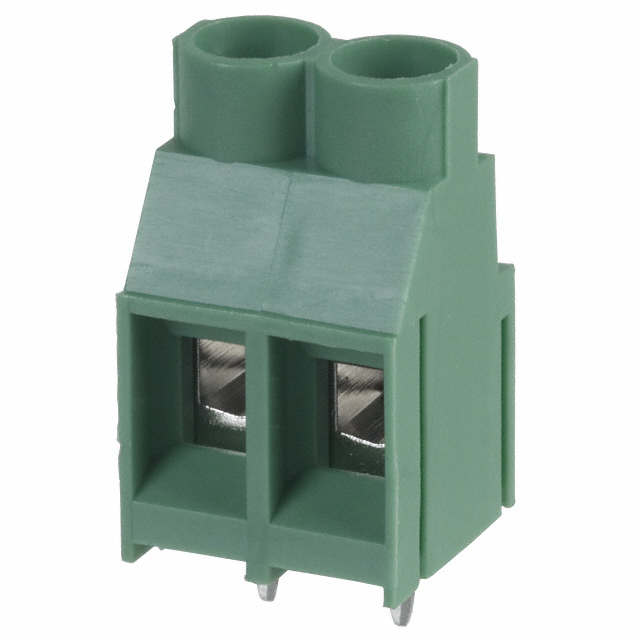

On Shore Technology Inc. OSTT7020150	Steel - Zinc Plated	1 Nm	8.9 Lb-In	Thermoplastic	M3	-30 ░C	105 ░C	Brass	Brass	Through Hole	Screw - Rising Cage Clamp	24 AWG	10 AWG	Horizontal with Board	1	300 VDC	Green	2	25 A	0.25 in	6.35 mm	Interlocking (Side)
