179-037 Series

Catalog

CONN D-SUB RCPT 37POS R/A SLDR

Part	Dielectric Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Form	Flange Feature	Termination	Connector Type	Connector Style	Contact Finish Thickness	Number of Positions [Min]	Number of Positions [Max]	Features	Shell Size, Connector Layout	Number of Rows [custom]	Contact Type	Mounting Type	Contact Finish	Material Flammability Rating	Current Rating (Amps)	Backset Spacing	Backset Spacing	Shell Material, Finish	Flange Feature

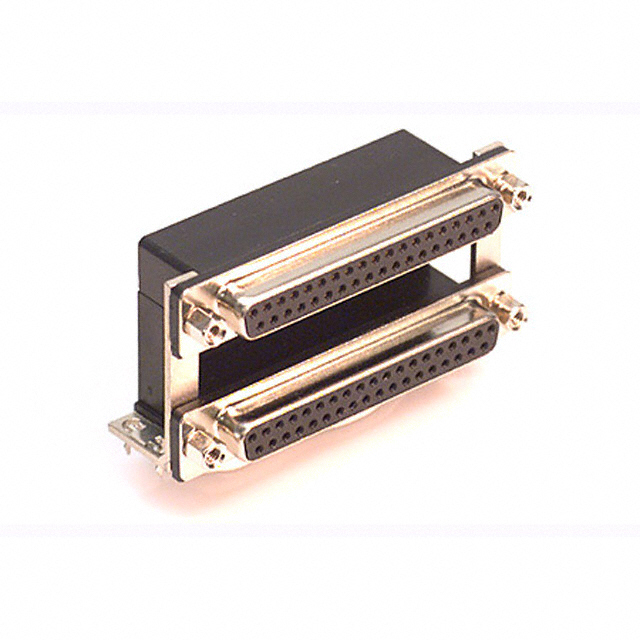

NorComp Inc. 179-037-512-571	Polyester Glass Filled	Brass	-55 C	105 ░C	Black	Stamped	4-40 Mating Side Female Screwlock	Solder	Receptacle Female Sockets	D-Sub - Stacked	Flash	37	37	Board Lock	4	2	Signal	Board Edge Right Angle Through Hole	Gold	UL94 V-0	5 A	8.08 mm	0.318 "

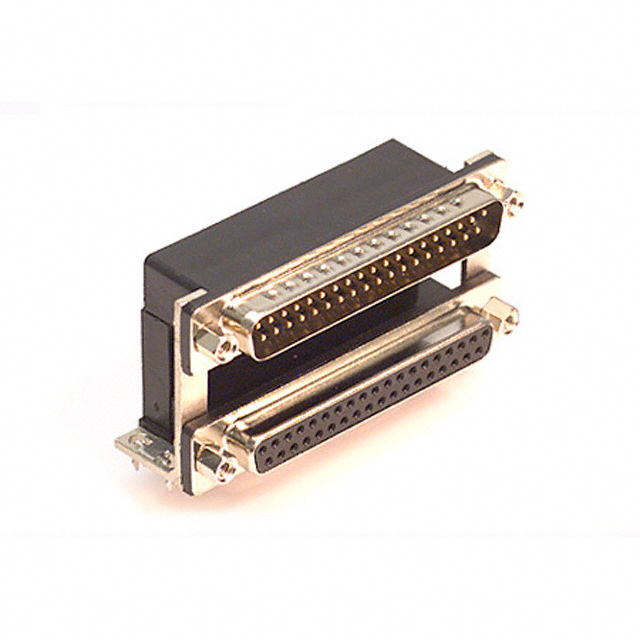

NorComp Inc. 179-037-413R571	Nylon 9T Polyamide (PA9T)	Brass	-55 C	105 ░C	Black	Stamped	4-40 Mating Side Female Screwlock	Solder	Plug Male Pins Receptacle Female Sockets	D-Sub - Stacked	Flash	37	37	Board Lock Grounding Indents Shielded	4	2	Signal	Board Edge Right Angle Through Hole	Gold	UL94 V-0	5 A	8.08 mm	0.318 "	Nickel Plated Steel
NorComp Inc. 179-037-613R691	Nylon 9T Polyamide (PA9T)	Brass	-55 C	105 ░C	Black	Stamped	Housing/Shell	Solder	Plug Male Pins	D-Sub - Stacked	Flash	37	37	Board Lock Grounding Indents Shielded	4	2	Signal	Board Edge Right Angle Through Hole	Gold	UL94 V-0	5 A	8.08 mm	0.318 "	Nickel Plated Steel	4-40
NorComp Inc. 179-037-513R451	Nylon 9T Polyamide (PA9T)	Brass	-55 C	105 ░C	Black	Stamped	Housing/Shell	Solder	Receptacle Female Sockets	D-Sub - Stacked	Flash	37	37	Shielded	4	2	Signal	Board Edge Right Angle Through Hole	Gold	UL94 V-0	5 A	8.08 mm	0.318 "	Nickel Plated Steel	4-40
NorComp Inc. 179-037-613R571	Nylon 9T Polyamide (PA9T)	Brass	-55 C	105 ░C	Black	Stamped	4-40 Mating Side Female Screwlock	Solder	Plug Male Pins	D-Sub - Stacked	Flash	37	37	Board Lock Grounding Indents Shielded	4	2	Signal	Board Edge Right Angle Through Hole	Gold	UL94 V-0	5 A	8.08 mm	0.318 "	Nickel Plated Steel
NorComp Inc. 179-037-613R671	Nylon 9T Polyamide (PA9T)	Brass	-55 C	105 ░C	Black	Stamped	4-40 Mating Side Female Screwlock	Solder	Plug Male Pins	D-Sub - Stacked	Flash	37	37	Board Lock Grounding Indents Shielded	4	2	Signal	Board Edge Right Angle Through Hole	Gold	UL94 V-0	5 A	8.08 mm	0.318 "	Nickel Plated Steel

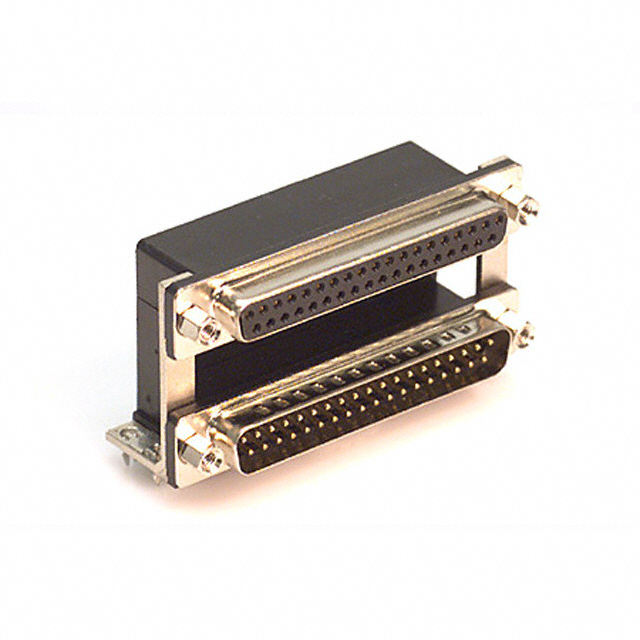

NorComp Inc. 179-037-313R571	Nylon 9T Polyamide (PA9T)	Brass	-55 C	105 ░C	Black	Stamped	4-40 Mating Side Female Screwlock	Solder	Plug Male Pins Receptacle Female Sockets	D-Sub - Stacked	Flash	37	37	Board Lock Grounding Indents Shielded	4	2	Signal	Board Edge Right Angle Through Hole	Gold	UL94 V-0	5 A	8.08 mm	0.318 "	Nickel Plated Steel
NorComp Inc. 179-037-413R481	Nylon 9T Polyamide (PA9T)	Brass	-55 C	105 ░C	Black	Stamped	4-40 Mating Side Female Screwlock	Solder	Plug Male Pins Receptacle Female Sockets	D-Sub - Stacked	Flash	37	37	Grounding Indents Shielded	4	2	Signal	Board Edge Right Angle Through Hole	Gold	UL94 V-0	5 A	8.08 mm	0.318 "	Nickel Plated Steel

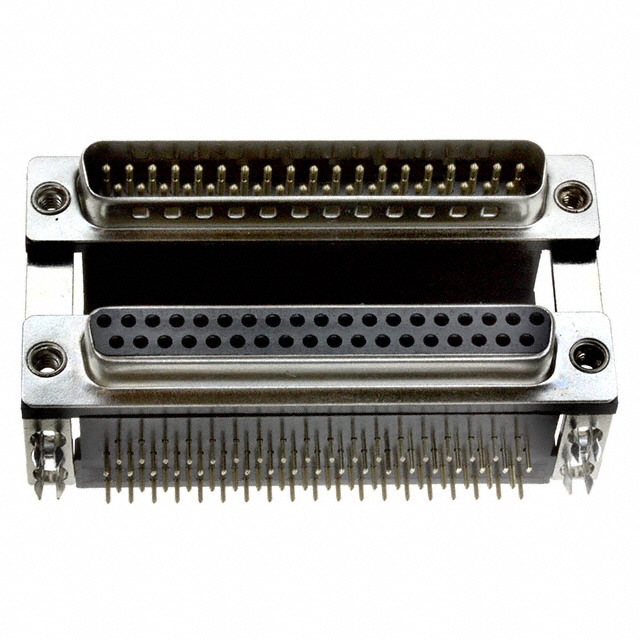

NorComp Inc. 179-037-413R491	Nylon 9T Polyamide (PA9T)	Brass	-55 C	105 ░C	Black	Stamped	Housing/Shell	Solder	Plug Male Pins Receptacle Female Sockets	D-Sub - Stacked	Flash	37	37	Board Lock Grounding Indents Shielded	4	2	Signal	Board Edge Right Angle Through Hole	Gold	UL94 V-0	5 A	8.08 mm	0.318 "	Nickel Plated Steel	4-40

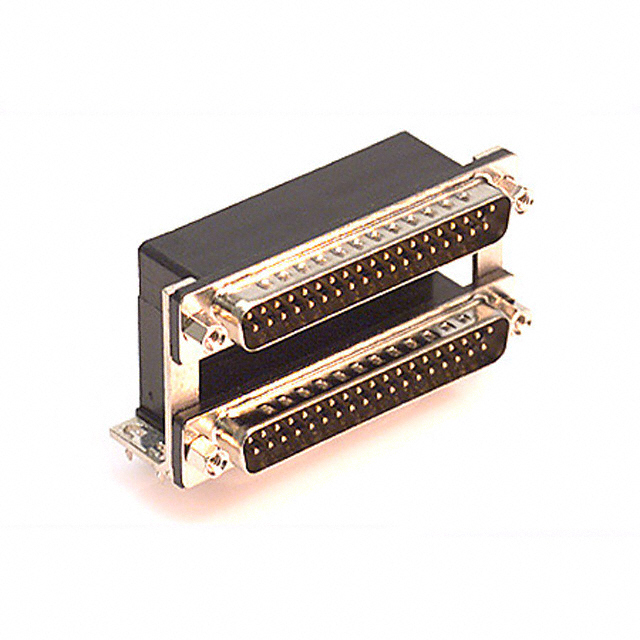

NorComp Inc. 179-037-612-571	Polyester Glass Filled	Brass	-55 C	105 ░C	Black	Stamped	4-40 Mating Side Female Screwlock	Solder	Plug Male Pins	D-Sub - Stacked	Flash	37	37	Board Lock Grounding Indents	4	2	Signal	Board Edge Right Angle Through Hole	Gold	UL94 V-0	5 A	8.08 mm	0.318 "
