7190 Series

Manufacturer: Qualtek

Catalog

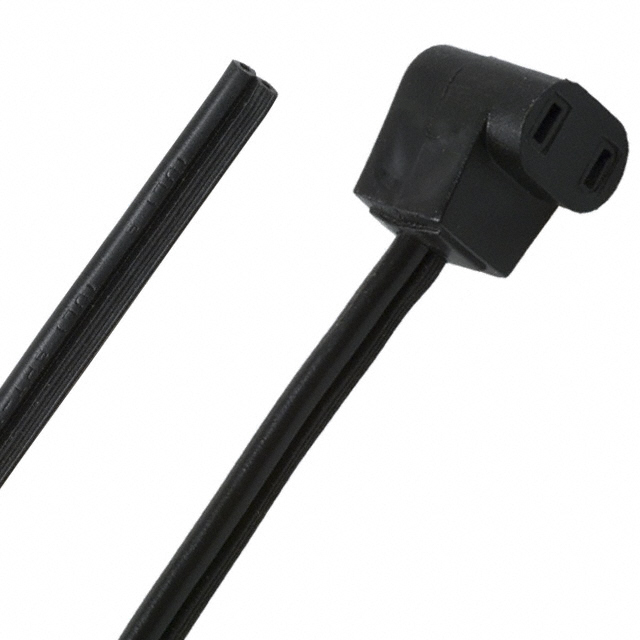

POWER CORD FAN RIGHT ANGLE 24"

Part	Style	Current Rating (Amps)	2nd Connector	1st Connector	Wire Gauge	Operating Temperature	Cord Type	Number of Conductors	Length	Length	Voltage Rating	Approval Agency Marking	Fits Terminal Size [x]	Fits Terminal Size [y]	Length [x]	Length [x]
Qualtek 07190-24	Female Receptacle to Cable	10 A	Open Wires	Fan Terminal Receptacle 90° Right Angle	18 AWG	105 C	SPT-1	2	609.6 mm	24 in	125 VDC	cUL UL	4.5	2.5
Qualtek 07190-60	Female Receptacle to Cable	10 A	Open Wires	Fan Terminal Receptacle 90° Right Angle	18 AWG	105 C	SPT-1	2	1.52 m	60 in	125 VDC	cUL UL	4.5	2.5
Qualtek 07190-80	Female Receptacle to Cable	10 A	Open Wires	Fan Terminal Receptacle 90° Right Angle	18 AWG	105 C	SPT-1	2	2.03 m	80 in	125 VDC	cUL UL	4.5	2.5
Qualtek 07190-50	Female Receptacle to Cable	10 A	Open Wires	Fan Terminal Receptacle 90° Right Angle	18 AWG	105 C	SPT-1	2			125 VDC	cUL UL	4.5	2.5	50 in	1.27 m
Qualtek 07190-40	Female Receptacle to Cable	10 A	Open Wires	Fan Terminal Receptacle 90° Right Angle	18 AWG	105 C	SPT-1	2	1.02 m	40 in	125 VDC	cUL UL	4.5	2.5

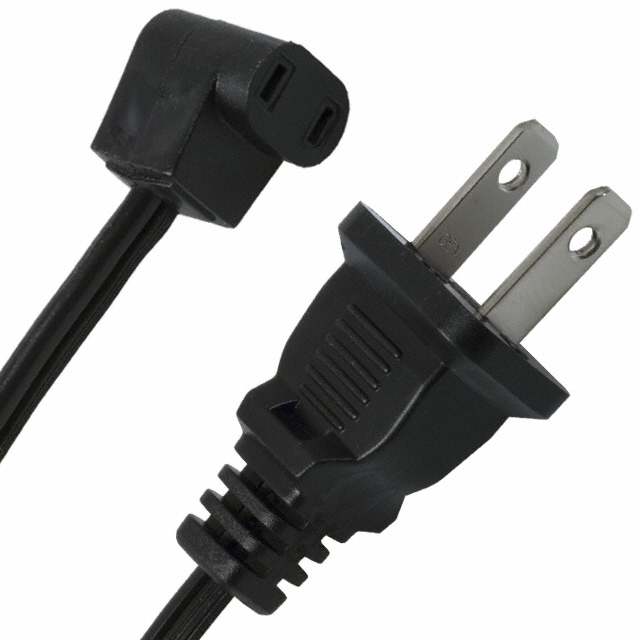

Qualtek 07190-SP036	Female Receptacle to Male Plug	10 A	NEMA 1-15 Plug	Fan Terminal Receptacle 90° Right Angle	18 AWG	105 C	SPT-1	2			125 VDC	cUL UL	4.5	2.5	36 in	914.4 mm
Qualtek 07190-SP024	Female Receptacle to Male Plug	10 A	NEMA 1-15 Plug	Fan Terminal Receptacle 90° Right Angle	18 AWG	105 C	SPT-1	2	609.6 mm	24 in	125 VDC	cUL UL	4.5	2.5
Qualtek 07190-36	Female Receptacle to Cable	10 A	Open Wires	Fan Terminal Receptacle 90° Right Angle	18 AWG	105 C	SPT-1	2			125 VDC	cUL UL	4.5	2.5	36 in	914.4 mm
